Name: Direct Fiber Measurement MPRC ABB Module 086444-005 ABB Control Board
Brand: Xiamen IntelliLink Global Electronic Products Co., Ltd
SKU: 086444-005
Price: 699 USD
Availability: InStock

Home Products ABB Module

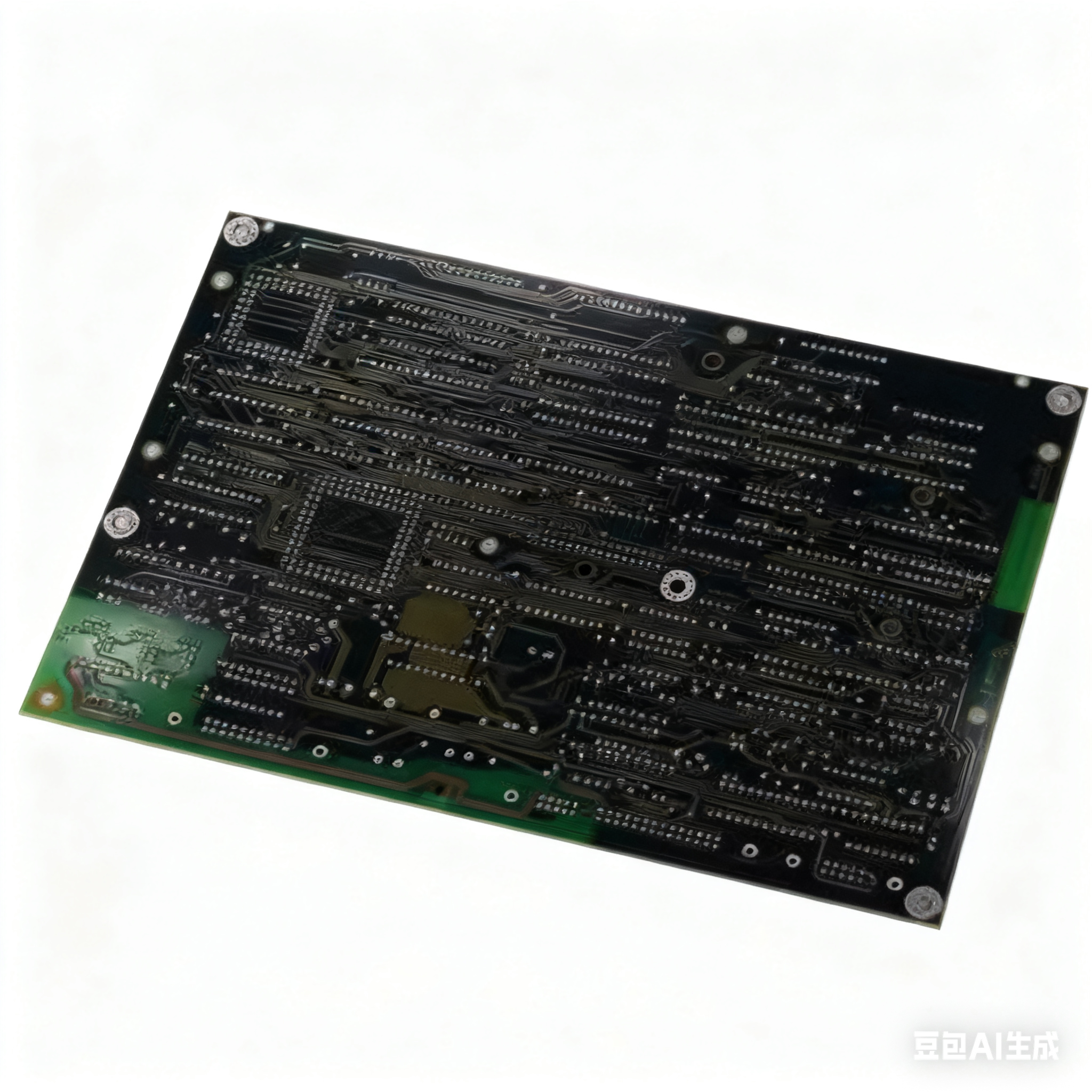

Direct Fiber Measurement MPRC ABB Module 086444-005 ABB Control Board

Product Details:

Place of Origin:	USA
Brand Name:	ABB
Certification:	COC
Model Number:	086444-005

Payment & Shipping Terms:

Price:	$699
Payment Terms:	T/T

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	Direct Fiber Measurement 086444-005 ABB , Control Board 086444-005 ABB , Control Board ABB Module

MPRC 086444-005 ABB Direct-Fiber Measurement & Control Board

Product Snapshot

MPRC 086444-005 is a single-slot, direct-fiber measurement & control board that adds high-speed analogue/digital acquisition plus optical data links to any Advant or Safoc rack. On-board 14-bit ADC, 1 kHz scan rate, dual LC fibre ports (1 Gb/s) and full galvanic isolation make it the default choice for encoder-less drives, rolling-mill load cells, paper-machine steam loops and other noise-critical applications.

Key Features & Benefits

14-bit measurement front-end - 16 diff. inputs ±10 V / ±20 mA, 0.05 % accuracy
1 kHz simultaneous scan - 1 ms update for all channels, no multiplex delay
Dual LC fibre ports - 1 Gb/s, up to 10 km SMF, < 1 µs jitter, plug-and-play
On-board 24 V sensor supply - 0.3 A protected, saves external PSU
Galvanic isolation - 1 500 V channel-to-logic, 500 V channel-to-channel
Hot-swap ready - module can be exchanged under power (≤ 30 s)
Industrial temperature - -40…+85 °C operating, -50…+90 °C storage
Global certifications - CE, UL 508, ABS marine, RoHS, REACH

Technical Specifications

Part Number	086444-005 (MPRC)
Function	Measurement & direct-fiber control board
Analog Inputs	16 × differential ±10 V / ±20 mA / 4-20 mA
Resolution	14-bit (0.61 mV / 1.22 µA LSB)
Accuracy	±0.05 % full scale @ 25 °C
Scan Rate	1 kHz simultaneous (1 ms)
Digital I/O	8 DI, 4 DO 24 VDC on-board
Fibre Ports	2 × LC, 1 Gb/s, 850/1300 nm, SM or MM
Max Distance	10 km (single-mode)
Isolation	1 500 V RMS channel-to-logic
On-board Supply	24 VDC ±10 %, 0.3 A protected
Power Consumption	< 1.5 W typical
Dimensions	30 × 420 × 160 mm (H×L×W)
Weight	0.4 kg
Operating Temp	-40 - +85 °C
Storage Temp	-50 - +90 °C
Humidity	95 % RH non-condensing
Protection	IP20
Certifications	CE, UL 508, ABS, RoHS

Typical Applications

Rolling-mill load-cell tension loops (encoder-less)
Paper-machine steam-pressure PID (14-bit resolution)
Crane hoist torque control over fibre (EMC immunity)
Marine thruster drives (ABS approved)
Long-distance encoder links up to 10 km

Compatible Hardware

Controllers: Advant Controller 410, 450, 800xA, AC 800M
Rack: 07 KR 91, 07 KT 92, 07 SK 50 (1-slot width)
Power Supply: SAFT112POW 24 VDC (recommended)
Legacy Upgrade: Replaces MPRC 086444-004 with firmware ≥ v6.2

Installation & Start-up

Slide module into 35 mm DIN-rail; latch until click.
Connect sensors - shielded twisted-pair, shield earthed at panel entry only.
Plug LC fibres - clean connectors, tighten dust-caps; green "LNK" LEDs light.
Configure controller - select "MPRC 086444-005" in 800xA, set scaling & filters.
Verify data - inject 4 mA, check 3276 counts; 20 mA -> 16383 counts.

LED / Fibre Diagnostics
