Analog Input ABB Module DATX 130 3ASC25H214 ABB Advant OCS High Density

Product Details:

Place of Origin:	Finland
Brand Name:	ABB
Certification:	COC
Model Number:	DATX 130

Payment & Shipping Terms:

Price:	$599
Payment Terms:	T/T

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	Analog Input ABB Module , Advant OCS ABB Module , Analog Input 3ASC25H214 ABB

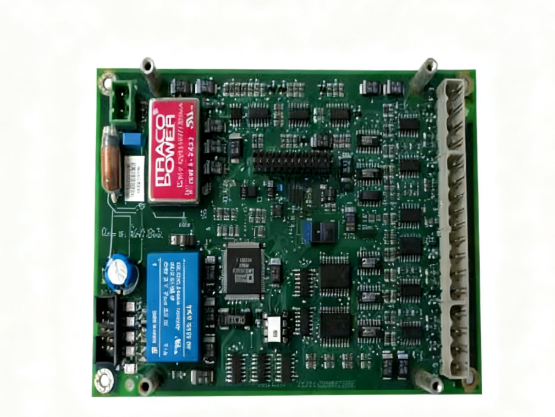

DATX 130 3ASC25H214 ABB Advant OCS Analog Input Module

Product Snapshot

DATX 130 (PN 3ASC25H214) is a high-density analog input module for ABB Advant OCS racks. It converts 16 differential voltage or current signals into 14-bit digital values, delivering 0.1% accuracy and 10 ms scan time for critical temperature, pressure and flow measurements in mills, power plants and marine vessels.

Key Features & Benefits

16 differential inputs - ±10 V, ±20 mA, 4-20 mA, 0-20 mA per channel
14-bit resolution - 0.1% accuracy, 0.01% linearity
Fast scan - 10 ms for all 16 channels, configurable averaging 1-64 samples
Galvanic isolation - 1,500 V channel-to-logic, 500 V channel-to-channel
On-board supply - 24 VDC ±10%, 0.3 A for 2-wire transmitters
Hot-swap - rack remains powered during replacement (≤ 30 s)
Global approvals - CE, UL 508, ABS marine, RoHS, REACH

Technical Specifications

Parameter	Value
Part Number	3ASC25H214
ABB Type	DATX 130
Function	16-channel analog input module
Input Ranges	±10 V, ±20 mA, 0-20 mA, 4-20 mA (per channel)
Resolution	14-bit (0.61 mV, 1.22 µA LSB)
Accuracy	±0.1% full scale @ 25 °C
Scan Time	10 ms all channels (configurable 1-64 averages)
Input Impedance	10 MΩ (voltage), 250 Ω (current)
Isolation	1,500 V RMS channel-to-logic
On-board Supply	24 VDC ±10%, 0.3 A for transmitters
Update Time	10 ms (default), 1 ms fast mode
Dimensions	128 × 22.5 × 115 mm (1-slot)
Weight	0.18 kg
Operating Temp	0 - 70 °C
Storage Temp	-40 - +85 °C
Humidity	95% RH non-condensing
Protection	IP20
Certifications	CE, UL 508, ABS, RoHS

Typical Applications

Paper machine steam-pressure loops
Metals rolling-mill hydraulic position
Power-plant feed-water flow
Marine engine temperature scanning
Retrofit of legacy Advant Controller 31x/41x racks

Compatible Hardware

Controllers: AC 31x, AC 41x, AC 51x (Advant OCS)
Rack: 07 KR 91, 07 KT 92, 07 SK 50 (1-slot width)
Power Supply: SAFT112POW 24 VDC (recommended)
Legacy Upgrade: Replaces DATX 120 (3ASC25H204) with firmware ≥ v6.1

Installation & Start-up

Slide module into 35 mm DIN-rail; latch until click.
Wire sensors - use shielded twisted-pair, shield earthed at panel entry only.
Connect 24 V - observe polarity; green "PWR" LED lights.
Configure controller - select "DATX 130" in Advant Station, set range & scaling.
Test signals - inject 4 mA, verify 3276 counts; inject 20 mA, verify 16383 counts.
