PAC Systems IC695CHS012 GE RX3i 12 Slot Modular Rack PCI Style Backplane

The IC695CHS012 is a 12-slot universal backplane that forms the physical and electrical backbone of any RX3i PACSystems control system. Engineered for high-speed PCI-style data transfers, the rack accepts CPU, I/O, motion, communications and specialty modules in any slot position. Reinforced aluminum side-walls, integrated grounding and forced-air guides make it the default choice for OEMs, power plants and process skids that demand vibration-proof, high-density mounting.

• 12 universal slots - any mix of digital, analog, motion or comms modules
• PCI-style backplane - 33 MHz, 32-bit parallel bus for < 1 µs read/write times
• Reinforced chassis - 2 mm aluminum sides, 5 g vibration, 50 g shock qualified
• Integrated earth bar - < 0.01 Ω ground impedance, no extra bonding kit required
• Hot-swap guides - plastic rails prevent module mis-alignment during swap
• Fan-ready - pre-punched holes for 80 mm or 120 mm fans, no drilling needed
• Global certs - CE, UL 508, CUL, ATEX Cat 3, ABS marine, RoHS, REACH

• CPUs: IC695CPU310/320/330, IC695CPE330/400
• Power Supplies: IC695PSA040/140, IC695PSD040
• I/O: All IC694 & IC695 discrete, analog, motion, high-speed counter
• Communications: IC695ETM001, IC695PBM300, IC695CMM002, IC695RMX228
• Specialty: IC695HSB300 (redundancy), IC695NKT002 (reflective memory)

• Side-wall ribs act as heat-sinks, reducing internal temperature by 3 °C typical
• Bottom air-vent pattern aligns with standard 80 mm or 120 mm panel fans
• Slot-number labels laser-etched; will not fade under UV or solvents
• Keying pins (included) prevent insertion of 90-70 series modules

1. Mount on unpainted conductive panel for < 0.1 Ω earth bond; use serrated washers.
2. Leave 50 mm clearance above and 25 mm below for forced-air flow (100 LFM recommended above 50 °C).
3. Torque M4 screws to 1.2 N*m; DIN-rail adaptor IC695ACC002 available for vibration-free snap-fit.
4. Verify power budget - sum 5 V & 3.3 V loads; rack can deliver 10 A @ 5 V total.
5. Install keying pin set (IC695ACC003) after first module configuration to prevent future mismatch.

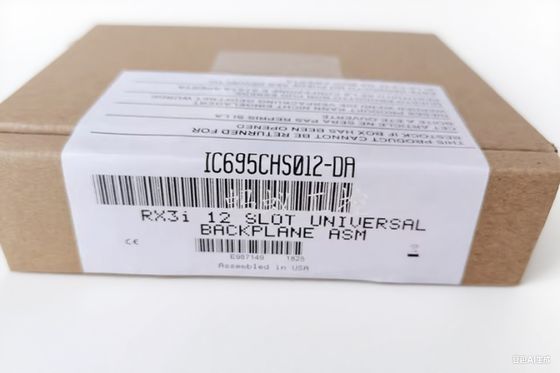

• 1 * IC695CHS012 12-slot rack, factory-sealed
• 4 * M4 * 12 mm mounting screws & cage washers
• 1 * slot-number sticker sheet (for user labelling)
• 1 * quick-start guide (English)
