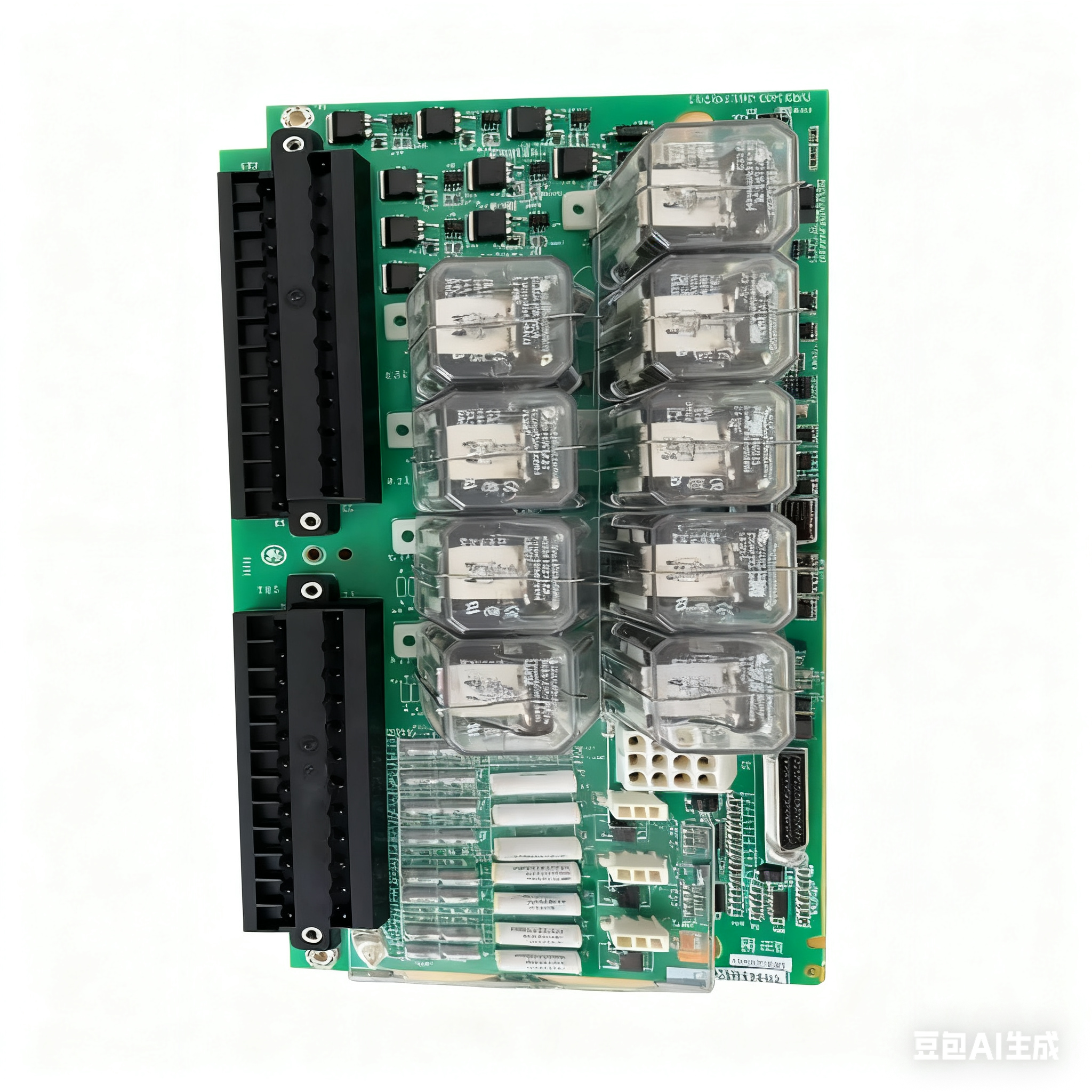

IS200TRPGH1B GE Mark VIe Speed & Protection I/O Pack

Product Snapshot

IS200TRPGH1B is a turbine-protection I/O pack that combines 8 high-speed magnetic-pickup inputs, 8 analog channels (±10 V, 4-20 mA, RTD) and 8 relay outputs in one IP20 slice. DSP-based speed detection delivers < 0.01 % accuracy and < 5 ms update, making it the primary board for overspeed, acceleration and load-share loops in gas, steam and hydro turbines.

Key Features & Benefits

8 speed channels - magnetic pickup 5-24 V pk-pk, 0.01 % error, 5 ms update
8 analog I/O - ±10 V, 4-20 mA, RTD software-selectable per channel
8 relay outputs - Form-C, 250 VAC/30 VDC, 5 A, fuse-less
On-board 24 V & 48 V excitation - powers sensors, saves external supplies
Sensor OK detection - open/short, bias voltage, broken wire < 2 ms
Hot-swap under power - slide-in design; turbine can remain on-line
Harsh environment - conformal coated, -40…+70 °C, 5 g vibration, 50 g shock
Global certs - CE, UL 508, ATEX Zone 2, RoHS, REACH

Technical Specifications

Parameter	Value
Part Number	IS200TRPGH1B
Series	Mark VIe Distributed I/O
Function	Speed & Protection I/O Pack
Speed Inputs	8 * magnetic pickup, 5-24 V pk-pk, 40 kHz max
Analog I/O	8 universal: ±10 V, 4-20 mA, RTD (Pt100)
Relay Outputs	8 * Form-C, 250 VAC / 30 VDC, 5 A resistive
Speed Accuracy	< 0.01 %, 5 ms update
Analog Resolution	16-bit (0.15 mV, 0.24 µA)
Analog Accuracy	±0.1 % full scale @ 25 °C
Update Time	250 µs analog, 5 ms speed
Sensor Supply	24 VDC ±5 %, 200 mA total; 48 VDC ±10 %, 100 mA total
Isolation	1500 V RMS field-to-logic
Power (5 V)	500 mA typical from backplane
Power (24 V)	150 mA plus relay coil current
Terminal Style	Pluggable Euro-block, 56 positions
Wire Size	14 - 22 AWG solid/stranded
Dimensions (WHD)	106 * 125 * 260 mm
Weight	0.8 kg
Operating Temp	-40…+70 °C
Storage Temp	-55…+85 °C
Humidity	5…95 % RH non-condensing
Protection	IP20 (panel mount)

Typical Applications

Gas & steam turbine overspeed protection
Acceleration and load-share control loops
Remote speed pick-up averaging (3 * 2 voting)
Hydro turbine speed & power feedback
Plant auxiliary analog control & discrete trip

Compatible Hardware

Rack: Mark VIe IS215VPROH2BC (vertical) or IS215HPROH2BC (horizontal)
Cable: IS200TBCVH1B (terminal board) up to 30 m away
CPU: IS215UCVEM09A/B (redundant pair supported)
I/O Pack: IS200DSPXH1A (DSP) plugs directly onto TRPG
Sensors: magnetic pickup MP-series, Pt100 3-wire, 4-20 mA transmitters

Installation & Startup

Slot module into any Mark VIe VME slot; captive screws 0.5 N*m.
Connect sensors - mag-pickup shield drain to earth at pack only.
Configure - ToolboxST > I/O > TRPG > speed source, analog scale, alarms.
Verify LEDs - green "STATUS" steady, green "ACTIVE" flashes at 2 Hz.
Test overspeed - simulate 110 % rated speed; relay trips < 40 ms.
