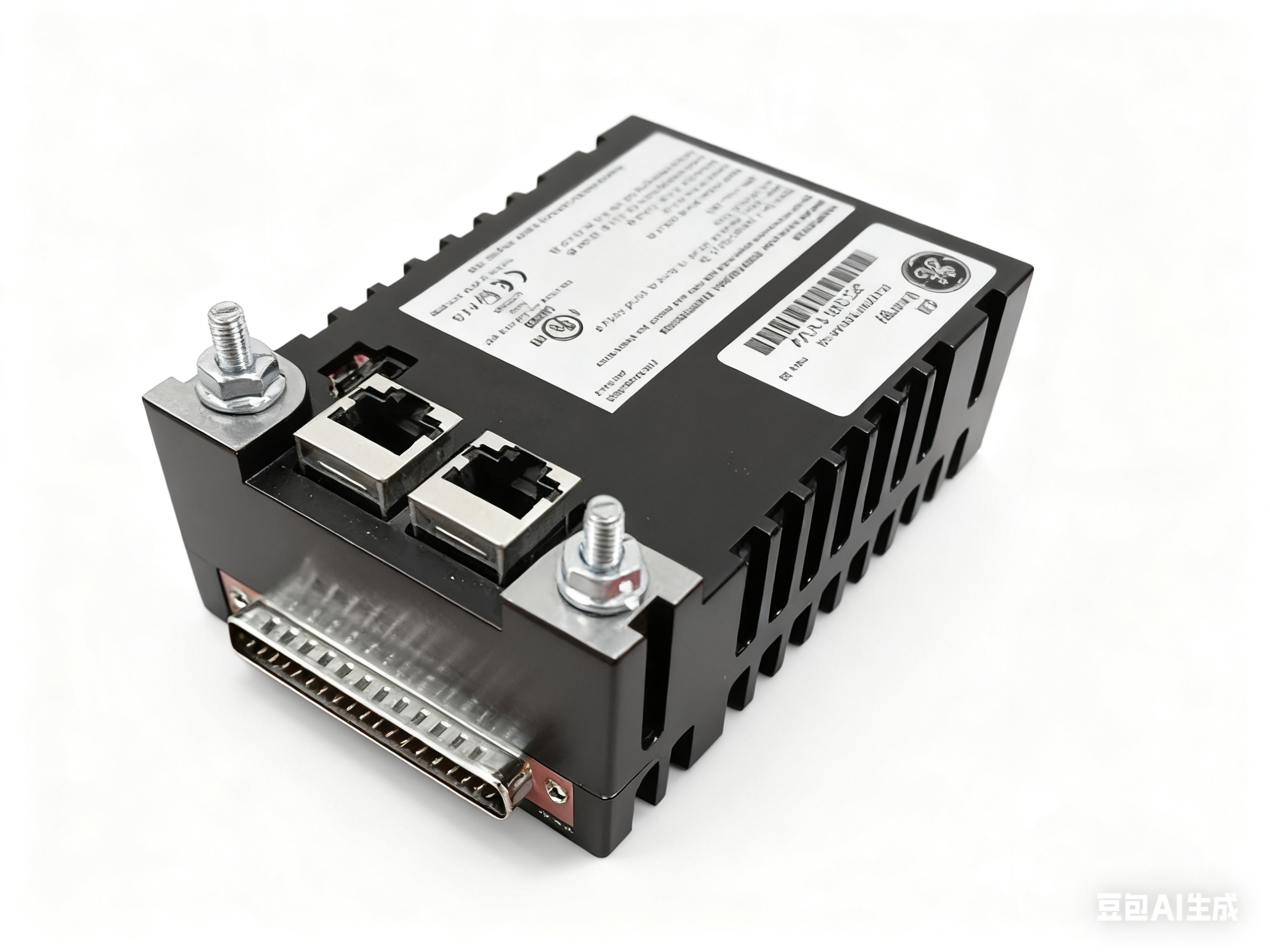

Name: 24 Inputs 8 Outputs IS220YTURS1A GE Mark VIe Remote I/O Terminal Board
Brand: Xiamen IntelliLink Global Electronic Products Co., Ltd
SKU: IS220YTURS1A
Price: 1,250.00 USD
Availability: InStock

Home Products GE Fanuc PLC

24 Inputs 8 Outputs IS220YTURS1A GE Mark VIe Remote I/O Terminal Board

Product Details:

Place of Origin:	USA
Brand Name:	GE
Certification:	COC
Model Number:	IS220YTURS1A

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$1000-1500
Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 pieces one day

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	24 Inputs IS220YTURS1A GE , 8 Outputs IS220YTURS1A GE , 24 Inputs GE Terminal Board

IS220YTURS1A GE | Mark VIe Remote I/O Terminal Board

Product Snapshot

IS220YTURS1A is a universal remote-terminal board that provides 32 discrete I/O points (24 inputs + 8 outputs) and 8 universal analog channels (4-20 mA, ±10 V, RTD, TC) on one IP20 slice. Designed for off-skid mounting up to 750 m from the main rack, it eliminates long sensor runs and reduces installed cost by up to 30%. On-board LEDs, pluggable Euro-terminals and 1500 V isolation make it the default choice for turbine auxiliaries, plant BOP and high-density remote I/O.

Key Features & Benefits

32 mixed I/O - 24 * dry-contact inputs, 8 * relay Form-A outputs, 5 A
8 universal analog - current, voltage, RTD, TC per channel
Remote mounting - CAT5e cable up to 750 m, 38.4 kbaud CAN bus
Pluggable terminals - 56-pos Euro-block, 14-22 AWG, 0.4 N*m torque
On-board LEDs - one per I/O point, visible with door closed
Sensor power - 24 VDC @ 200 mA, short-circuit protected
Hot-swap ready - Mark VIe supports on-line replacement without CPU trip
Harsh environment - conformal coated, -40…+70 °C, 5 g vibration, 50 g shock
Global certs - CE, UL 508, ATEX Zone 2, RoHS, REACH

Technical Specifications

Part Number	IS220YTURS1A
Series	Mark VIe Distributed I/O
Function	Remote I/O Terminal Board
Discrete Inputs	24 * dry contact, 24 VDC wetting
Discrete Outputs	8 * relay Form-A, 250 VAC / 30 VDC, 5 A
Analog Inputs	8 universal: 4-20 mA, ±10 V, RTD, TC
Resolution	16-bit (0.1 °C RTD, 0.15 µA current)
Accuracy	±0.1 % current, ±0.25 °C RTD
Update Rate	2 ms per channel, 16 ms all 32 DI + 8 AI
Remote Cable	CAT5e STP, 750 m max, 38.4 kbaud CAN
Isolation	1500 V RMS field-to-logic
Sensor Supply	24 VDC ±5 %, 200 mA total
Power (5 V)	350 mA typical from backplane
Power (24 V)	100 mA plus field loads
Terminal Style	Pluggable Euro-block, 56 positions
Wire Size	14 - 22 AWG solid/stranded
Dimensions (WHD)	106 * 125 * 260 mm
Weight	0.8 kg
Operating Temp	-40…+70 °C
Storage Temp	-55…+85 °C
Humidity	5…95 % RH non-condensing
Protection	IP20 (panel mount)

Typical Applications

Gas & steam turbine auxiliary skids (lube-oil, cooling water)
Remote boiler discrete & temperature I/O
Plant balance-of-plant (BOP) motor control centers
Off-skid chemical dosing panels
Hydro governor remote terminal cabinets

Compatible Hardware

Main Rack: Mark VIe IS215VPROH2BC (vertical) or IS215HPROH2BC (horizontal)
Remote Cable: IS200TBCVH1B (CAT5e STP) up to 750 m
CPU: IS215UCVEM09A/B (redundant pair supported)
I/O Pack: IS200DSPXH1A (DSP) plugs directly onto YTURS
Sensors: standard Pt100 3-wire, 4-20 mA transmitters, dry contacts

Installation & Startup

Mount board on 35 mm DIN-rail or panel; torque screws 1.2 N*m.
Connect remote cable - CAT5e STP, shield earthed at main rack only.
Wire sensors - use shielded pairs for analog, ferrules for discrete.
Configure - ToolboxST > I/O > YTURS > channel type, scale, alarms.
Verify LEDs - green "STATUS" steady, individual I/O LEDs mirror field state.

What's in the Box?

1 * IS220YTURS1A remote I/O terminal board, factory-sealed
1 * quick-start guide (English)
2 * M4 mounting screws & serrated washers
