12 Channel GE Fanuc PLC IS220PVIBH1A GE Mark VIe Vibration Position Input Module

12 Channel GE Fanuc PLC IS220PVIBH1A GE Mark VIe Vibration Position Input Module

  • 12 Channel GE Fanuc PLC IS220PVIBH1A GE Mark VIe Vibration Position Input Module
  • 12 Channel GE Fanuc PLC IS220PVIBH1A GE Mark VIe Vibration Position Input Module
12 Channel GE Fanuc PLC IS220PVIBH1A GE Mark VIe Vibration Position Input Module
Product Details:
Place of Origin: USA
Brand Name: GE
Certification: CO
Model Number: IS220PVIBH1A
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $1000-1200
Packaging Details: original
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10 pieces one day
Contact Now
Detailed Product Description
Type: Module Shipping By: DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time: In Stock Product Type: Module
Payment: T/T Trading Term: EXW
Highlight:

12 Channel GE Fanuc PLC

,

Vibration GE Fanuc PLC

,

Position Input Module IS220PVIBH1A GE

IS220PVIBH1A GE Mark VIe Vibration & Position Input Module
Product Snapshot

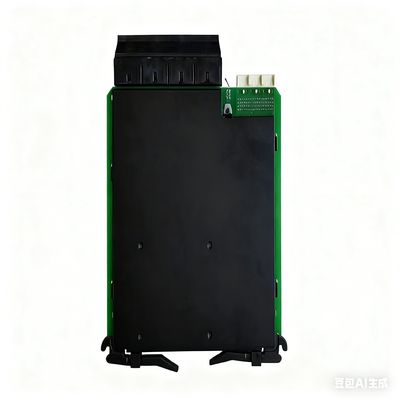

The IS220PVIBH1A is a 12-channel vibration & position input module that connects directly to accelerometers, velocity sensors and eddy-current probes without external signal conditioners. Featuring 16-bit A/D conversion, 40 kHz sample rate and integrated peak-to-peak detection, it delivers < 1% amplitude accuracy for gas- & steam-turbine shaft vibration, axial position and bearing temperature trending. With hot-swap capability, IP20 rating and -40...+70 °C operating range, it's the standard choice for plant balance-of-plant (BOP) and auxiliary skids worldwide.

Key Features & Benefits
  • 12 universal channels - supports accelerometer (100 mV/g), velocity (20 mV/mm/s), and eddy-current (8 V/mm) sensors
  • 40 kHz sample rate - includes anti-aliasing filter with true peak-to-peak & RMS calculation on-board
  • 16-bit resolution - provides < 1% amplitude error with ±0.05% linearity
  • Integrated power - supplies -24 V for probes and 4 mA constant current for IEPE sensors
  • Sensor OK detection - identifies open/short circuits, bias voltage issues within 100 ms
  • Hot-swap capability - slide-in design allows maintenance without turbine shutdown
  • Harsh environment ready - conformal coated, operates in -40...+70 °C, withstands 5 g vibration and 50 g shock
  • Global certifications - CE, UL 508, ATEX Zone 2, RoHS, REACH compliant

Technical Specifications
Parameter Value
Part Number IS220PVIBH1A
Series Mark VIe Distributed I/O
Function Vibration & Position Input Module
Channels 12 universal
Sensor Types Accelerometer 100 mV/g, Velocity 20 mV/mm/s, Eddy-current 8 V/mm, ±25 V DC
Sample Rate 40 kHz per channel, simultaneous
Bandwidth 0.1 Hz - 16 kHz (user selectable)
Resolution 16-bit (0.15 mg, 0.01 mil)
Accuracy ±1% of reading @ 25°C
Linearity ±0.05%
Sensor Supply -24 VDC ±5%, 25 mA max per channel
IEPE Constant Current 4 mA ±5%, 22 V compliance
Isolation 1500 V RMS channel-to-logic
Power (5 V) 400 mA typical from backplane
Power (24 V) 100 mA plus sensor load
Dimensions (W*H*D) 53 * 125 * 260 mm
Weight 0.6 kg
Operating Temp -40...+70°C
Storage Temp -55...+85°C
Humidity 5...95% RH non-condensing
Protection IP20 (panel mount)

Typical Applications
  • Gas & steam turbine shaft vibration (X-Y probes)
  • Axial thrust position monitoring
  • Bearing accelerometer trending (velocity & enveloped)
  • Compressor surge detection
  • Balance-of-plant (BOP) auxiliary pumps & fans

Compatible Hardware
  • Rack: Mark VIe IS215VPROH2BC (vertical) or IS215HPROH2BC (horizontal)
  • Cable: IS200TBCVH1B (terminal board) up to 30 m away
  • CPU: IS215UCVEM09A/B (redundant pair supported)
  • I/O Pack: IS200DSPXH1A (DSP) plugs directly onto PVIB
  • Sensors: Bently Nevada 3300 XL, Metrix SA6350, Wilcoxon 787A

Installation & Startup
  1. Slot module into any Mark VIe VME slot; tighten captive screws to 0.5 N*m.
  2. Wire sensors using shielded twisted-pair, with drain wire earthed at pack only.
  3. Configure via ToolboxST > I/O > PVIB > set sensor type, full-scale, and alarms.
  4. Verify LEDs: green "STATUS" should be steady, green "ACTIVE" flashes at 2 Hz.
  5. Trend data by viewing peak-to-peak, RMS, and gap voltage in HMI.

What's in the Box?
  • 1 * IS220PVIBH1A vibration module, factory-sealed
  • 1 * quick-start guide (English)
  • 2 * M4 mounting screws & serrated washers

Tag:

IS200TRPGH1B GE,

IS220PAICH1B GE,

IC200ALG432 GE
