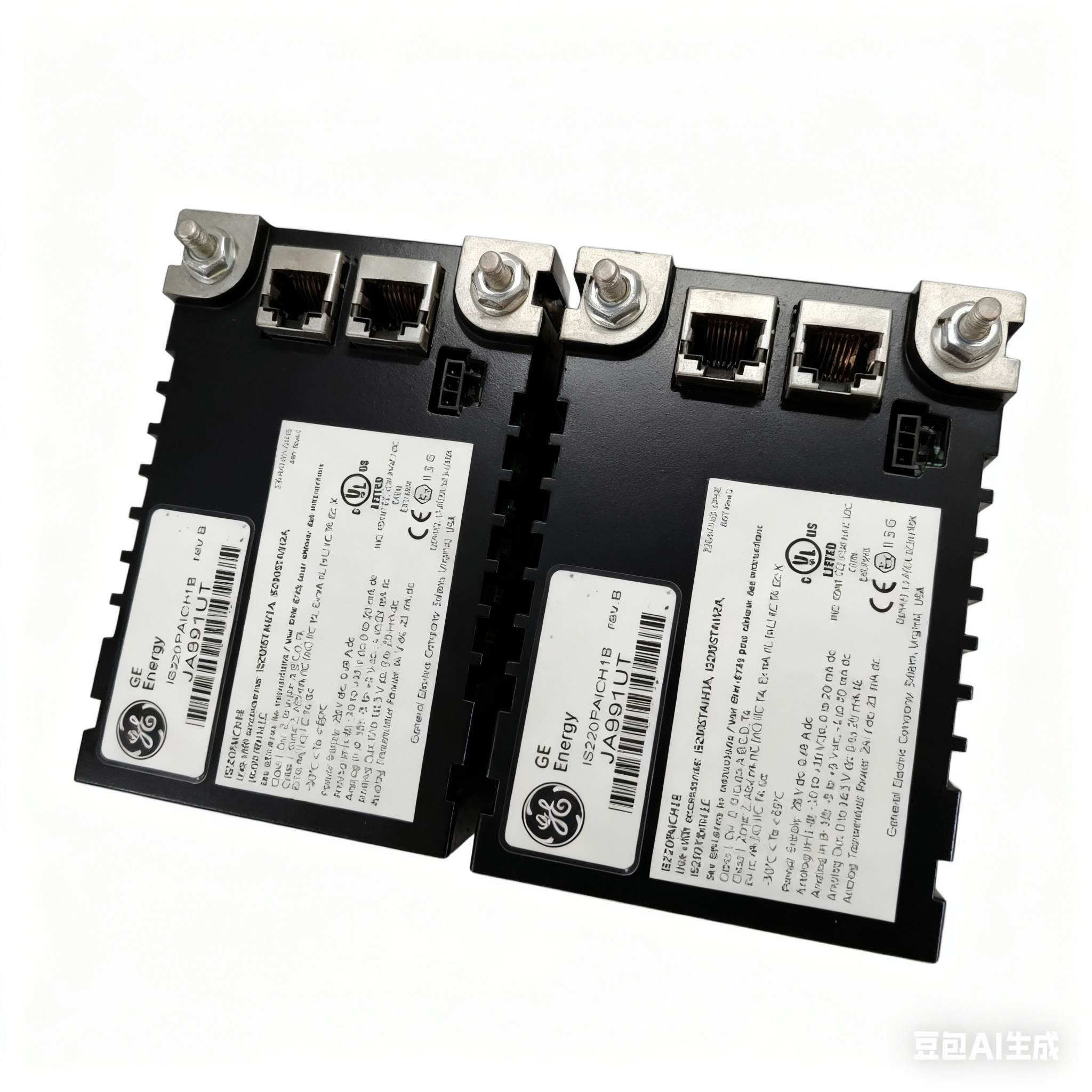

IS220PAICH1B GE | Mark VIe Process Analog I/O Module

Product Snapshot

IS220PAICH1B is a high-density, 16-channel process-analog module that plugs directly into any Mark VIe VME rack. Each channel is software-selectable for 4-20 mA, 0-20 mA, ±20 mA, 0-5 V, 1-5 V, ±5 V or ±10 V, eliminating external converters and cutting panel cost by up to 25%. On-board 24 V loop supply, HART pass-through, short-circuit protection and TÜV-certified SIL 2 capability make it the default choice for gas & steam turbine auxiliaries, plant BOP loops and safety-critical processes.

Key Features & Benefits

16 universal channels - current or voltage per channel, software selectable
SIL 2 / PL-c certified - TÜV Rheinland, suitable for SIS loops up to SIL 2
HART 6 pass-through - read/write PV, SV, TV, QV without extra hardware
On-board 24 V supply - 24 VDC @ 300 mA total, current limited & protected
16-bit resolution - 0.05% full-scale accuracy, 0.01% linearity
Fast update - 250 µs per channel, 4 ms all 16, configurable filter 1-64 samples
Short-circuit & open-wire detect - diagnostic bit < 1 ms, channel LED turns red
Hot-swap under power - slide-in design; turbine/process can remain on-line
Harsh environment - conformal coated, -40…+70 °C, 5 g vibration, 50 g shock
Global certs - CE, UL 508, ATEX Zone 2, RoHS, REACH

Technical Specifications

Parameter	Value
Part Number	IS220PAICH1B
Series	Mark VIe Distributed I/O
Function	16-Ch Process Analog Input
Ranges / Channel	4-20 mA, 0-20 mA, ±20 mA, 0-5 V, 1-5 V, ±5 V, ±10 V
Resolution	16-bit (0.76 µA, 0.15 mV LSB)
Accuracy	±0.05% full scale @ 25 °C
Linearity	±0.01%
Update Time	250 µs per ch, 4 ms all 16
Input Impedance	250 Ω (current), > 1 MΩ (voltage)
Burden Power	< 0.5 W per channel @ 20 mA
Loop Supply	24 VDC ±5%, 300 mA total, protected
HART	Rev 6 pass-through, 1 kHz carrier
Isolation	1500 V RMS channel-to-logic
Diagnostics	Open-wire, short, over-range, HART status
Power (5 V)	400 mA typical from backplane
Power (24 V)	100 mA plus loop load
Terminal Style	Pluggable Euro-block, 48 positions
Wire Size	14 - 22 AWG solid/stranded
Dimensions (WHD)	106 * 125 * 260 mm
Weight	0.7 kg
Operating Temp	-40…+70 °C
Storage Temp	-55…+85 °C
Humidity	5…95% RH non-condensing
Protection	IP20 (panel mount)

Typical Applications

Gas & steam turbine auxiliary loops (fuel, inlet guide vanes)
Steam-temperature averaging for life-cycle counters
Plant BOP pressure/flow transmitters 4-20 mA
Safety-critical SIL 2 SIS loops (trip amplifiers)
Remote HART device management without multiplexers

Compatible Hardware

Rack: Mark VIe IS215VPROH2BC (vertical) or IS215HPROH2BC (horizontal)
Cable: IS200TBCVH1B (terminal board) up to 30 m away
CPU: IS215UCVEM09A/B (redundant pair supported)
I/O Pack: IS200DSPXH1A (DSP) plugs directly onto PAICH
HART Modem: any HART 6 handheld or AMS Device Manager via ETM001

Installation & Startup

Slot module into any Mark VIe VME slot; captive screws 0.5 N*m.
Wire sensors - use shielded twisted-pair, drain to earth at pack only.
Configure - ToolboxST > I/O > PAICH > range, scale, HART enable, alarms.
Verify LEDs - green "STATUS" steady, green "ACTIVE" flashes at 2 Hz.
HART check - use handheld to read PV; module passes carrier untouched.
