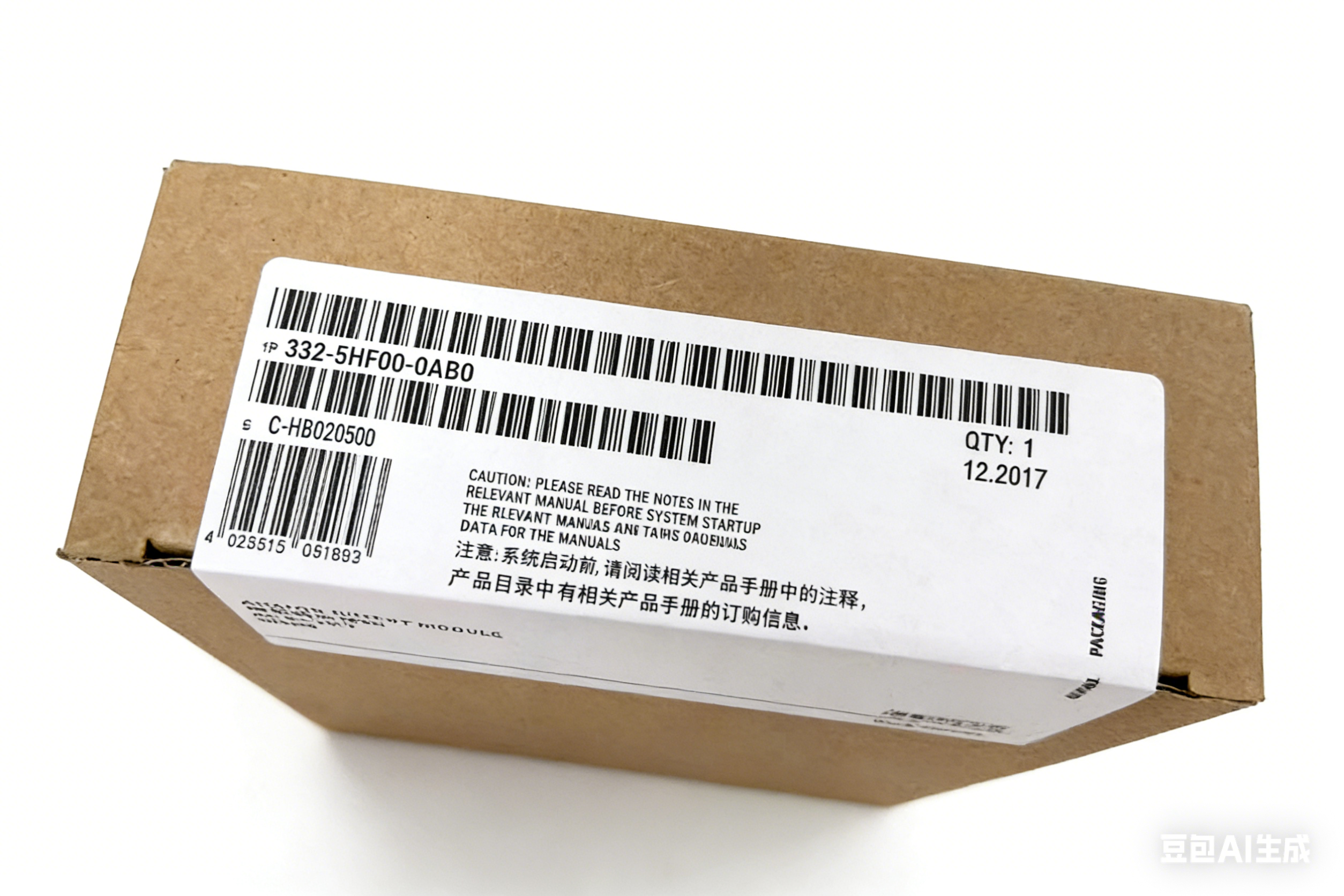

6ES7332-5HF00-0AB0 Siemens | SIMATIC S7-300 Analog Output Module AO 8x13bit

Product Details:

Place of Origin:	Germany
Brand Name:	Siemens
Certification:	COO & COC
Model Number:	6ES7332-5HF00-0AB0

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$99
Packaging Details:	1315.25 cm
Delivery Time:	5-8
Payment Terms:	T/T
Supply Ability:	10

Contact Now

Detailed Product Description

Highlight:

8 Channels Analog Output Module

13-Bit Resolution AO Module

Galvanic Isolation Siemens S7-300 Module

Siemens 6ES7332-5HF00-0AB0 | SIMATIC S7-300 Analog Output Module AO 8x13bit

The Siemens 6ES7332-5HF00-0AB0 is a high-precision 8-channel analog output module designed exclusively for the SIMATIC S7-300 PLC system. As a key component of Siemens' industrial automation portfolio, this module converts digital control signals from the S7-300 controller into stable, accurate analog output signals—ideal for controlling actuators, valves, transmitters, and other analog devices in demanding industrial environments.

Engineered for reliability and flexibility, the 6ES7332-5HF00-0AB0 delivers consistent performance with 13-bit resolution, ensuring precise control in factory automation, process control, and machine building applications. It seamlessly integrates with STEP 7 engineering software, enabling efficient configuration, calibration, and diagnostics to minimize downtime and optimize operational efficiency.

Key Features & Benefits

8 Analog Output Channels: 8 independent channels supporting voltage (0-10V, ±10V) and current (0-20mA, 4-20mA) output types for versatile application compatibility
13-Bit Resolution: High precision signal conversion ensuring accurate control of analog devices with minimal error margin
Flexible Signal Ranging: Configurable output ranges via software (STEP 7), eliminating the need for hardware adjustments
Integrated Diagnostics: LED status indicators for channel-level and module-level faults (short circuits, overloads), simplifying troubleshooting and maintenance
Galvanic Isolation: 500V DC isolation between channels and between the module and backplane bus, providing protection against electrical interference and voltage spikes
Backplane Bus-Powered: No external power supply required, reducing wiring complexity and saving space in control cabinets
Compact Design: 40mm (W) x 125mm (H) x 120mm (D) form factor, perfect for space-constrained industrial setups
STEP 7 Compatibility: Fully configurable via STEP 7 V5.2+ software, enabling seamless integration with the S7-300 PLC system and easy parameterization
Industrial-Grade Durability: Built to withstand harsh industrial conditions, including wide temperature ranges and electrical noise, ensuring long service life

Technical Specifications

Parameter	Details
Order Number	6ES7332-5HF00-0AB0
Product Type	Analog Output Module (AO 8x13bit)
For Use With	SIMATIC S7-300 PLC System
Number of Channels	8 independent channels
Resolution	13 bits (including sign bit for bipolar ranges)
Output Ranges (Configurable)	Voltage: 0-10V, ±10V; Current: 0-20mA, 4-20mA
Output Accuracy	±0.5% of full scale (at 25°C)
Response Time	≤ 10ms (for 90% of full scale)
Isolation	500V DC between channels; 500V DC between module and backplane
Power Supply	Backplane bus-powered (5V DC from S7-300 rack)
Power Consumption	2.5W (max) from backplane bus
Dimensions (WxHxD)	40mm x 125mm x 120mm
Weight	Approx. 0.28kg
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5-95% (non-condensing)
Certifications	CE, UL, CSA, IEC 61131-2
Configuration Software	STEP 7 V5.2+

Applications

The Siemens 6ES7332-5HF00-0AB0 analog output module is widely used in industrial automation applications where precise control of analog devices is critical, including:

Factory Automation: Control of variable speed drives, valves, and actuators in assembly lines, packaging machines, and material handling systems
Process Control: Regulation of pressure, temperature, flow, and level in chemical processing, water treatment, and food & beverage manufacturing
Machine Building: Calibration and control of robotics, CNC machines, and printing/textile machinery
Energy & Infrastructure: Control of power distribution systems, renewable energy equipment, and industrial heating/cooling systems
Retrofit Projects: Upgrade of existing S7-300 installations to enhance control precision and flexibility

Why Choose Siemens 6ES7332-5HF00-0AB0 From Us?

Genuine Quality: 100% original Siemens module or high-quality tested equivalent, ensuring compatibility and reliability with S7-300 systems
Seamless Integration: Fully compatible with SIMATIC S7-300 PLCs and STEP 7 software, reducing configuration time and integration errors
Fast Delivery: In-stock inventory for urgent orders, with worldwide shipping via DHL, FedEx, or UPS
Comprehensive Support: Professional technical assistance for configuration, troubleshooting, and installation guidance
Warranty Protection: 12-month warranty from the date of delivery, covering manufacturing defects and performance issues
Secure Packaging: Industrial-grade, shockproof packaging to ensure the module arrives in perfect condition
