Compact Siemens PLC 6ES7216-2BD23-0XB0 Siemens S7-200 CN CPU 216 DC/DC/DC

Product Details:

Place of Origin:	Germany
Brand Name:	Siemens
Certification:	COC
Model Number:	6ES7216-2BD23-0XB0

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$99

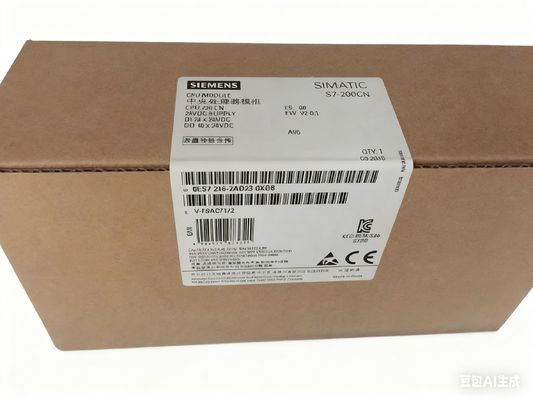

Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 pieces one day

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	S7-200 CN CPU Siemens PLC , S7-200 CN CPU 6ES7216-2BD23-0XB0 Siemens , Compact 6ES7216-2BD23-0XB0 Siemens

6ES7216-2BD23-0XB0 Siemens | S7-200 CN CPU 216 DC/DC/DC

Product Snapshot

The 6ES7216-2BD23-0XB0 is the highest-performance S7-200 CN CPU. With 24 KB program memory, 16 DI/16 DO on-board, 6 high-speed counters (30 kHz) and 2 RS-485 ports, it controls medium-complexity machines without expansion racks. Integrated real-time clock, battery back-up and PID loops make it ideal for packaging, pumps, conveyors and temperature zones.

Key Features & Benefits

24 KB work memory - 5* larger than CPU 224, 512 function blocks
32 integrated I/O - 16 * 24 V DC inputs, 16 * 24 V DC outputs (0.5 A)
Dual RS-485 - Port-0 PPI/MPI, Port-1 free (Modbus, USS, user protocol)
6 high-speed counters - 30 kHz single phase, 20 kHz A/B quadrature
2 PWM outputs - 20 kHz for servo/valve control
Battery-backed RTC - 1 year reserve, capacitor + optional battery
PID auto-tune - 8 loops, step-response or relay-feedback
Wide temperature - 0 - 55 °C operating, -40 - +70 °C storage
Global approvals - CE, UL 508, CSA, FM Class 1 Div 2, RoHS, REACH

Technical Specifications

Parameter	Value
Part Number	6ES7216-2BD23-0XB0
Series	SIMATIC S7-200 CN
Supply Voltage	24 V DC (20.4 - 28.8 V)
Digital Inputs	16 * 24 V DC, sinking/sourcing
Digital Outputs	16 * 24 V DC, 0.5 A, transistor sourcing
High-Speed I/O	6 counters 30 kHz, 2 PWM 20 kHz
Memory (program)	24 KB
Memory (data)	10 KB
Battery RTC	Yes (capacitor + optional battery)
Ports	2 * RS-485 (PPI/MPI/USS/Modbus)
Baud Rate	9.6 - 115.2 kbps
Real-Time Clock	±1 min/month @ 25 °C
Power Consumption	11 W typical
Expansion I/O	7 modules max (256 DI/DO, 32 AI/AO)
Programming Cable	PC/PPI or USB-PPI (order separately)
Dimensions (WHD)	196 * 80 * 62 mm
Weight	0.55 kg
Operating Temp	0 - 55 °C
Storage Temp	-40 - +70 °C
Humidity	95 % RH non-condensing
Certifications	CE, UL 508, CSA, FM Class 1 Div 2, RoHS

Typical Applications

Medium-speed packaging lines (servo trigger, temperature seal)
Water-booster pump VFD control (Modbus RTU)
Conveyor diverters & barcode tracking
Plastic extruder temperature zones (PID auto-tune)
Remote SCADA RTU (dual-port polling)

Compatible Expansion & Accessories

Digital I/O: EM 221, 222, 223 (DI/DO)
Analog I/O: EM 231, 232, 235 (AI/AO)
Temperature: EM 231 RTD/TC
Communication: EM 277 PROFIBUS-DP, CP 243-1 Ethernet
Cables: USB-PPI (6ES7 901-3DB30-0XA0), PC/PPI
Software: STEP 7-Micro/WIN V4.0 SP9 or SMART programming software

Installation & Startup

Snap onto DIN-rail; plug 24 VDC supply (20.4 - 28.8 V).
Wire sensors - use 24 VDC sensors; outputs are sourcing (+24 V).
Connect PC - USB-PPI cable, auto-detect 19.2 kbps PPI.
Configure I/O - wizard sets addresses, enables high-speed counters.
Download program - battery-free; optional 6ES7291-8BA20-0XA0 for > 200 days RTC backup.
