Name: 6ES7231-0HC22-0XA8 SIEMENS | S7-200 CN EM 231 4AI Analog Input Module
Brand: Xiamen IntelliLink Global Electronic Products Co., Ltd
SKU: 6ES7231-0HC22-0XA8
Price: 50 USD
Availability: InStock

Home Products Siemens PLC

6ES7231-0HC22-0XA8 SIEMENS | S7-200 CN EM 231 4AI Analog Input Module

Product Details:

Place of Origin:	China
Brand Name:	SIEMENS
Certification:	COC
Model Number:	6ES7231-0HC22-0XA8

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$50
Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 pieces one day

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	Siemens S7-200 analog input module , EM 231 4AI PLC module , Siemens PLC analog input with warranty

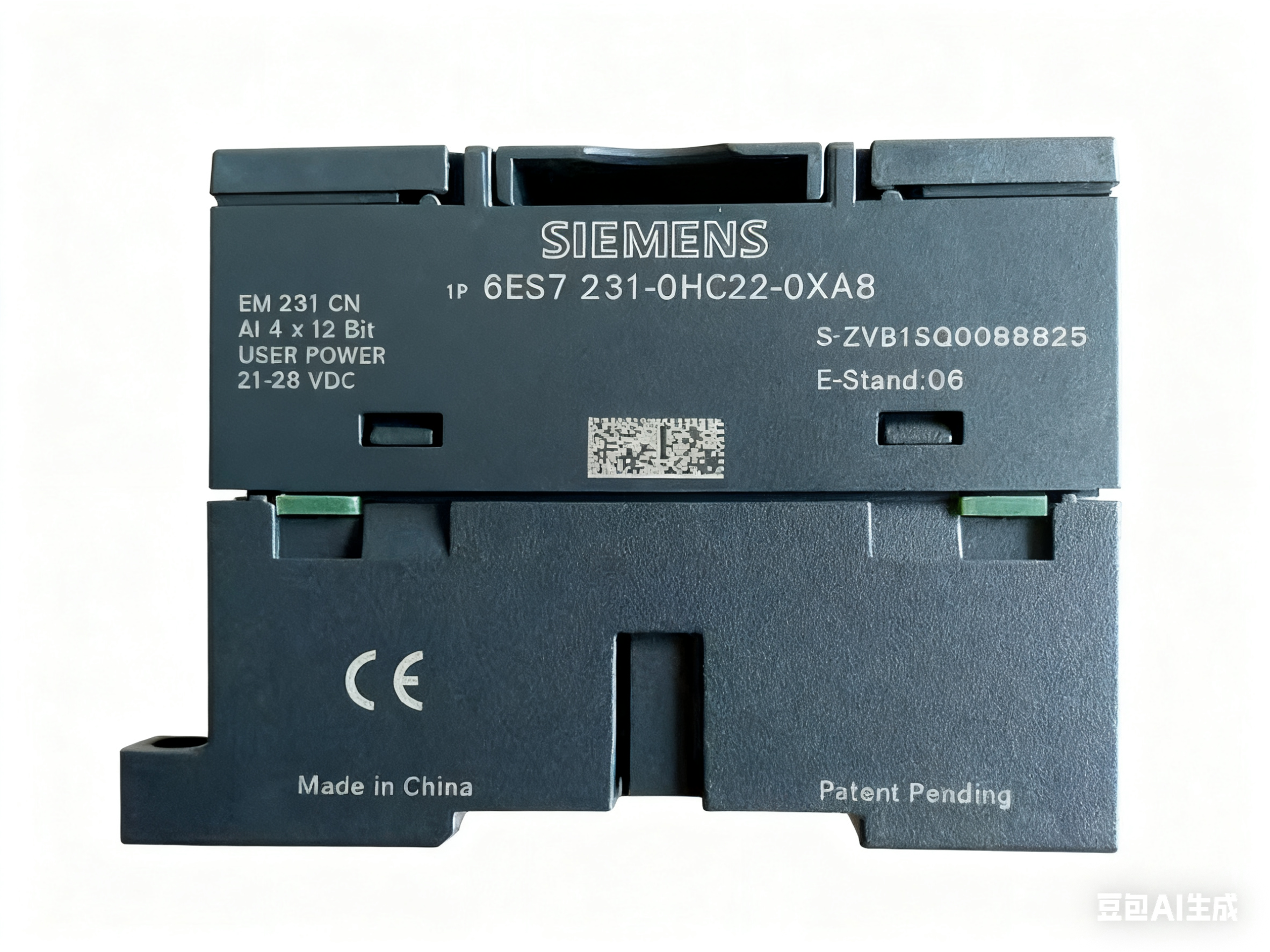

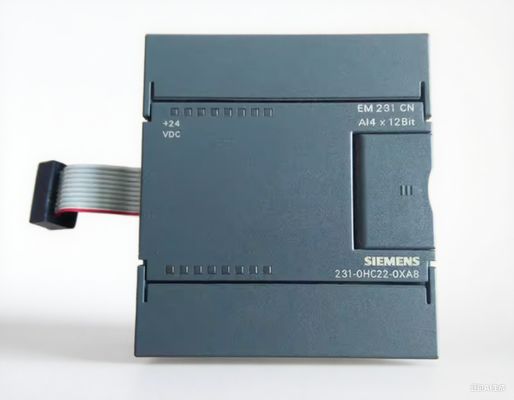

6ES7231-0HC22-0XA8 SIEMENS | S7-200 CN EM 231 4AI Analog Input Module

Product Snapshot

6ES7231-0HC22-0XA8 is the EM 231 4-channel analog input expansion for S7-200 CN CPUs. It converts 4 differential voltage or current signals into 12-bit digital values, making it the most cost-effective way to add temperature, pressure, level or flow inputs to any micro-PLC system.

Key Features & Benefits

4 differential AI - isolated channel-to-channel
12-bit + sign resolution - 0.1 % accuracy, ±0.2 % full-scale
Software-selectable ranges - 0-20 mA, 4-20 mA, ±5 V, ±10 V, 0-10 V per channel
On-board 24 V sensor supply - 60 mA, short-circuit protected
DIP-free configuration - range set in CPU configuration byte
Ultra-slim - 71 mm width, 62 mm depth, DIN-rail snap-on
Wide temperature - 0 - 55 °C operating, -40 - +70 °C storage
Global approvals - CE, UL 508, CSA, FM Class 1 Div 2, RoHS, REACH

Technical Specifications

Part Number	6ES7231-0HC22-0XA8
Series	SIMATIC S7-200 CN
Function	EM 231 Analog Input Module
Inputs	4 * differential (voltage or current)
Ranges	0-20 mA, 4-20 mA, ±5 V, ±10 V, 0-10 V
Resolution	12-bit + sign (0.32 mV, 0.64 µA LSB)
Accuracy	±0.1 % full scale @ 25 °C
Conversion Time	250 µs per channel, 1 ms all 4
Input Impedance	10 MΩ (voltage), 250 Ω (current)
Sensor Supply	24 VDC ±5 %, 60 mA, protected
Isolation	500 V AC channel-to-CPU
Power (5 V)	20 mA from backplane
Power (24 V)	60 mA + sensor current
Dimensions (WHD)	71 * 80 * 62 mm
Weight	0.15 kg
Operating Temp	0 - 55 °C
Storage Temp	-40 - +70 °C
Humidity	95 % RH non-condensing
Certifications	CE, UL 508, CSA, FM Class 1 Div 2, RoHS

Typical Applications

Water-tank level transmitters (4-20 mA)
HVAC duct pressure 0 - 10 V
Packaging machine temperature PID (PT100 -> 4 - 20 mA)
Pump flow meters for SCADA RTU
Small solar-tracking servo systems

Compatible CPUs & Cables

S7-200 CN: CPU 224, 224 XP, 226
S7-200 SMART: CR40, SR20, ST40 (with adapter)
Ribbon cable: supplied with CPU (no extra purchase)
Power: 24 VDC 1 A minimum, ripple < 5 %
Software: STEP 7-Micro/WIN V4.0 SP9 or SMART programming software

Installation & Startup

Snap module onto DIN-rail beside CPU; plug bus ribbon.
Wire sensors - shielded twisted-pair, shield earthed at panel entry.
Set range byte - CPU configuration table (no DIP switches).
Scale values - use Micro/WIN wizard for 4 - 20 mA = 0 - 32 000.
Verify LEDs - green "SF" off, analog values stable in status table.
