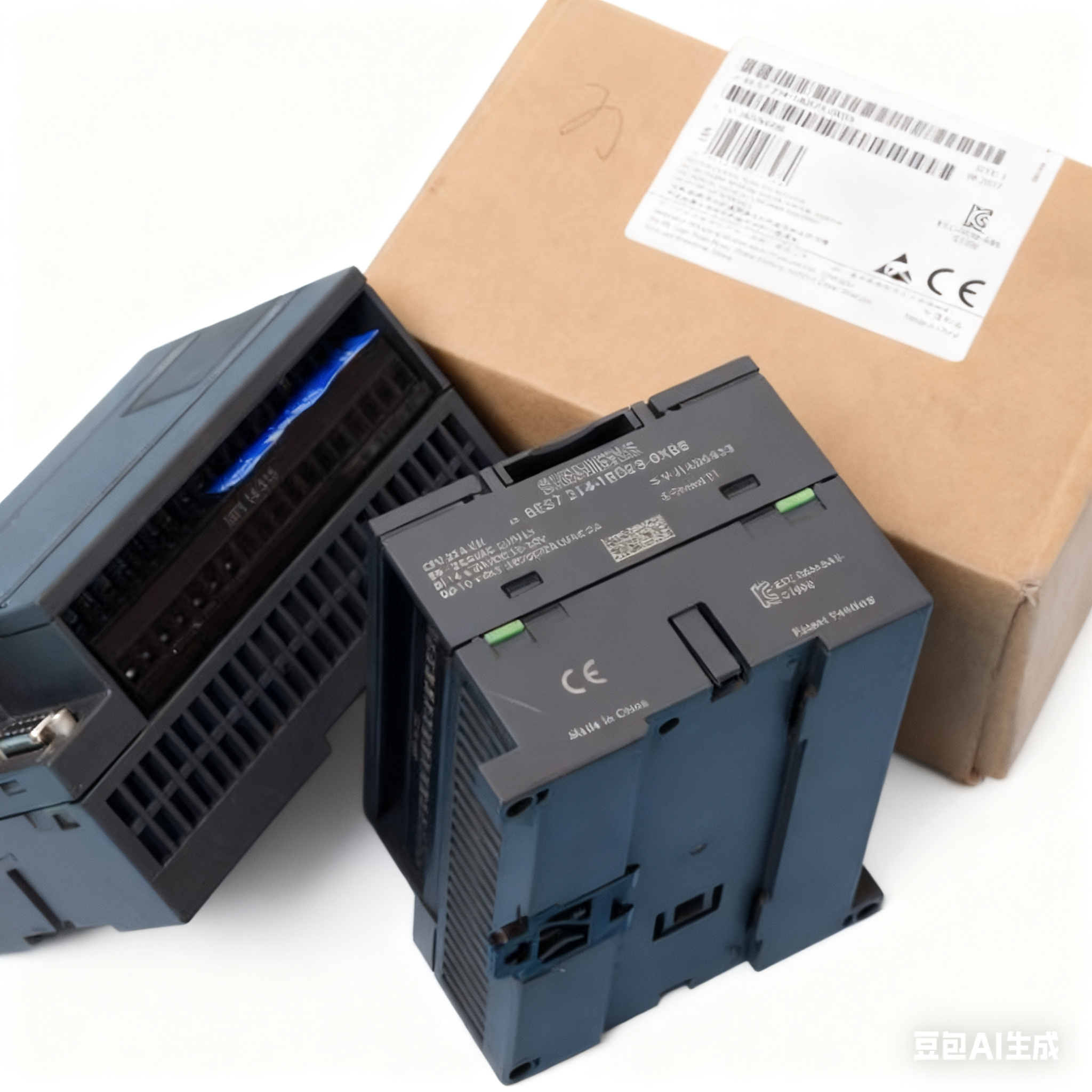

Name: High Speed Siemens PLC CN CPU 224 XP Analog SIEMENS 6ES7214-1AD23-0XB8 S7-200
Brand: Xiamen IntelliLink Global Electronic Products Co., Ltd
SKU: 6ES7214-1AD23-0XB8
Price: 59 USD
Availability: InStock

Home Products Siemens PLC

High Speed Siemens PLC CN CPU 224 XP Analog SIEMENS 6ES7214-1AD23-0XB8 S7-200

Product Details:

Place of Origin:	China
Brand Name:	Siemens
Certification:	COC
Model Number:	6ES7214-1AD23-0XB8

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$59

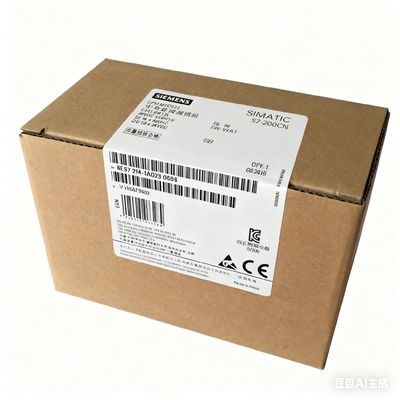

Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 pieces one day

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	High Speed SIEMENS 6ES7214-1AD23-0XB8 , Analog SIEMENS 6ES7214-1AD23-0XB8 , High Speed Siemens PLC

6ES7214-1AD23-0XB8 SIEMENS | S7-200 CN CPU 224 XP Analog

Product Snapshot

The 6ES7214-1AD23-0XB8 is the CPU 224 XP Analog version for the S7-200 CN family. This compact CPU combines 14 digital inputs, 10 digital outputs, 2 analog inputs and 1 analog output, eliminating the need for separate analog modules in small machines, pumps, fans and temperature-control loops.

Key Features & Benefits

18 integrated I/O - 14 DI, 10 DO, 2 AI, 1 AO
14-bit analog resolution - 0.1% accuracy, ±0.2% full-scale
2 PPI/MPI ports - RS-485, 9.6k - 187.5k baud, free-port possible
Real-time clock & battery back-up - 256 bytes retentive, 100h RTC hold-up
High-speed counters - 6 * 30 kHz (single) or 4 * 20 kHz (quadrature)
PWM/PTO outputs - 2 * 20 kHz for stepper or servo drives
Wide temperature range - 0-55°C operating, -40 to +70°C storage
Global approvals - CE, UL 508, CSA, FM Class 1 Div 2, RoHS, REACH

Technical Specifications

Parameter	Value
Part Number	6ES7214-1AD23-0XB8
Series	SIMATIC S7-200 CN
Type	CPU 224 XP Analog
Power Supply	24 VDC (20.4 - 28.8 V)
Digital Inputs	14 * 24 VDC, sink/source
Digital Outputs	10 * 24 VDC, 0.75 A, transistor (PNP)
Analog Inputs	2 * ±10 V / 0-20 mA, differential
Analog Output	1 * ±10 V / 0-20 mA
Resolution (AI/AO)	14-bit + sign
Accuracy	±0.1% full scale @ 25°C
Conversion Time	125 µs per AI, 2 ms AO update
Program Memory	16 kB (8 k instructions)
Data Memory	10 kB
Retentive Memory	256 bytes
High-Speed Counters	6 * 30 kHz single, 4 * 20 kHz quadrature
Pulse Outputs	2 * 20 kHz (PWM or PTO)
Real-Time Clock	Yes, battery back-up 100 h
Ports	2 * RS-485 (PPI/MPI/free-port)
Power Consumption	8 W typical
Dimensions (WHD)	120.5 * 80 * 62 mm
Weight	0.35 kg
Operating Temp	0 - 55°C
Storage Temp	-40 - +70°C
Humidity	95% RH non-condensing
Certifications	CE, UL 508, CSA, FM Class 1 Div 2, RoHS

Typical Applications

Small pump VFD speed reference (4-20 mA)
Temperature PID with PT100 transmitter
Packaging machine stepper control (PTO 20 kHz)
HVAC damper position feedback
Remote SCADA RTU with dual RS-485 ports

Compatible Extensions

Digital I/O: EM 223 6ES7223-1BH22-0XA8 (16 DI/16 DO)
Analog I/O: EM 235 6ES7235-0KD22-0XA8 (4 AI/1 AO)
Communication: EM 277 6ES7277-0AA22-0XA0 (Profibus-DP)
Memory: 64 kB cartridge 6ES7291-8GF23-0XA0
Software: STEP 7-Micro/WIN V4.0 SP9 or SMART programming software

Installation & Startup

Snap CPU onto 35 mm DIN-rail; plug 24 VDC supply.
Download program via PPI cable or USB-PPI adapter.
Wire sensors - use shielded pair for analog, earth shield at panel.
Set analog range - software selectable (no DIP switches).
Verify LEDs - green "RUN", no "SF", analog values in status table.
