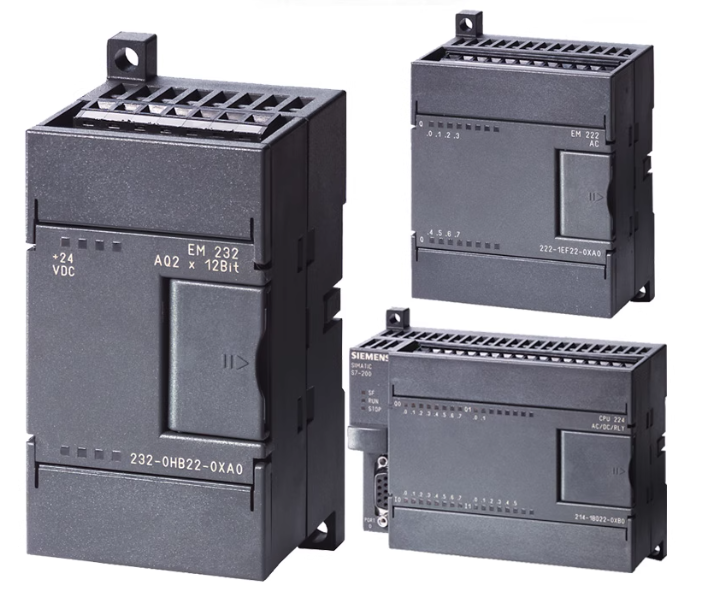

2 Channel Siemens PLC S7-200 Siemens 6ES7232-0HB22-0XA0 CN EM 232 2AO Analog Output Module

The 6ES7232-0HB22-0XA0 is an EM 232 2-channel analog output expansion module for SIMATIC S7-200 CN PLCs. It features two 12-bit analog output channels supporting voltage and current signals, designed for precise control applications in automation and process control systems.

• Dual Analog Outputs: Two 12-bit analog output channels
• Wide Range of Signals: Supports 0-10 V and 0-20 mA signals
• High Accuracy: ±0.5% accuracy for precise control
• Programmable: Easily configure output ranges and types via STEP 7-Micro/WIN
• Compact Design: Fits within the compact S7-200 form factor
• Easy Integration: Compatible with all S7-200 CPUs
• Global Approvals: UL, CE, RoHS, REACH compliant

• Temperature control in HVAC systems
• Motor speed adjustment in industrial machinery
• Liquid level control in tanks
• Pressure control in hydraulic systems
• Process control in manufacturing plants

• PLCs: S7-200 CN CPUs (224, 224 XP, 226)
• Cables: Standard PLC ribbon cable
• Power Supply: 24 VDC power supply for PLC system
• Software: STEP 7-Micro/WIN V4.0 or higher

1. Insert Module: Slide the module into an available slot on the PLC rail.
2. Connect PLC Ribbon Cable: Ensure the ribbon cable is properly connected.
3. Power Up PLC: Turn on the PLC and wait for the status LEDs to stabilize.
4. Configure Outputs: Use STEP 7-Micro/WIN to set the output ranges and signal types.
5. Test Outputs: Check the analog outputs using a multimeter to ensure they match the configured values.
