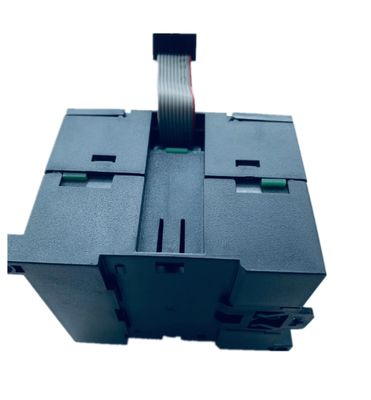

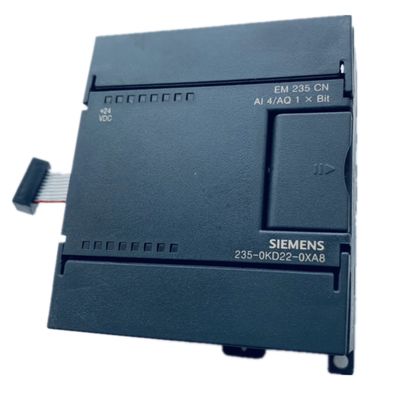

High Accuracy Siemens 6ES7235-0KD22-0XA8 4AI 1AO 12 Bit Analog PLC 24 VDC

High Accuracy Siemens 6ES7235-0KD22-0XA8 4AI 1AO 12 Bit Analog PLC 24 VDC

  • High Accuracy Siemens 6ES7235-0KD22-0XA8 4AI 1AO 12 Bit Analog PLC 24 VDC
  • High Accuracy Siemens 6ES7235-0KD22-0XA8 4AI 1AO 12 Bit Analog PLC 24 VDC
  • High Accuracy Siemens 6ES7235-0KD22-0XA8 4AI 1AO 12 Bit Analog PLC 24 VDC
High Accuracy Siemens 6ES7235-0KD22-0XA8 4AI 1AO 12 Bit Analog PLC 24 VDC
Product Details:
Place of Origin: Germany
Brand Name: Siemens
Certification: COC
Model Number: 6ES7235-0KD22-0XA8
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $10-3000
Packaging Details: original
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10 pieces one day
Contact Now
Detailed Product Description
Type: Module Shipping By: DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time: In Stock Product Type: Module
Payment: T/T Trading Term: EXW
Highlight:

24 VDC Siemens 6ES7235-0KD22-0XA8

,

12 Bit Siemens 6ES7235-0KD22-0XA8

,

Analog Siemens PLC Module

PLC 6ES7235-0KD22-0XA8 Siemens
Product Description
The 6ES7235-0KD22-0XA0 is a genuine Siemens SIMATIC S7-200 EM 235 analog input/output module offering four differential 12-bit analog inputs and one 12-bit analog output. Designed for precise signal acquisition and control in small to mid-size PLC systems, it supports ±10 V and 0-20 mA ranges with ±0.5 % accuracy and hot-swap capability.
Key Features & Benefits
  • 100% OEM Siemens--serialized & factory-sealed
  • 4 AI differential: ±10 V, ±5 V, ±2.5 V, ±1 V, ±500 mV, ±250 mV, ±100 mV, ±50 mV, ±25 mV, 0-10 V, 0-5 V, 0-20 mA configurable
  • 1 AO: ±10 V or 0-20 mA, 12-bit resolution
  • Built-in diagnostics & LED status
  • Hot-swappable on S7-22X CPU racks
  • -40 °C … +70 °C operating range
  • CE, UL Listed, ATEX/IECEx certified
Technical Specifications
Parameter Value
Part Number 6ES7235-0KD22-0XA0
Series SIMATIC S7-200 EM 235
Channels 4 AI / 1 AO
Resolution 12-bit (11-bit + sign)
Accuracy ±0.5 % FS @ 25 °C
Input Ranges ±10 V, 0-20 mA, etc.
Output Ranges ±10 V, 0-20 mA
Conversion Time < 0.25 ms / channel
Settling Time 100 µs (V), 2 ms (I)
Isolation None (common ground)
Power 24 VDC external, 60 mA max
Operating Temp -40 °C … +70 °C
Dimensions 71.2 × 80 × 62 mm
Weight 186 g
Typical Applications
  • Analog sensor monitoring (pressure, flow, temperature)
  • Valve & actuator control loops
  • Small-batch reactor automation
  • OEM machine retrofits
  • Water/wastewater SCADA upgrades
What's in the Box
  • 1× 6ES7235-0KD22-0XA0 EM 235 module
  • 1× Removable 18-pin spring-clamp terminal block
  • Factory calibration certificate & traceability label
  • Quick-start guide & ESD wrist strap
Installation & Setup
  1. Snap module onto S7-22X CPU or expansion rack.
  2. Connect 24 VDC supply and analog wiring.
  3. Power on--green SF LED off, RUN LED on.
  4. Configure channels in STEP 7-Micro/WIN.
  5. Perform loop test & verify 0-20 mA / ±10 V scaling.
