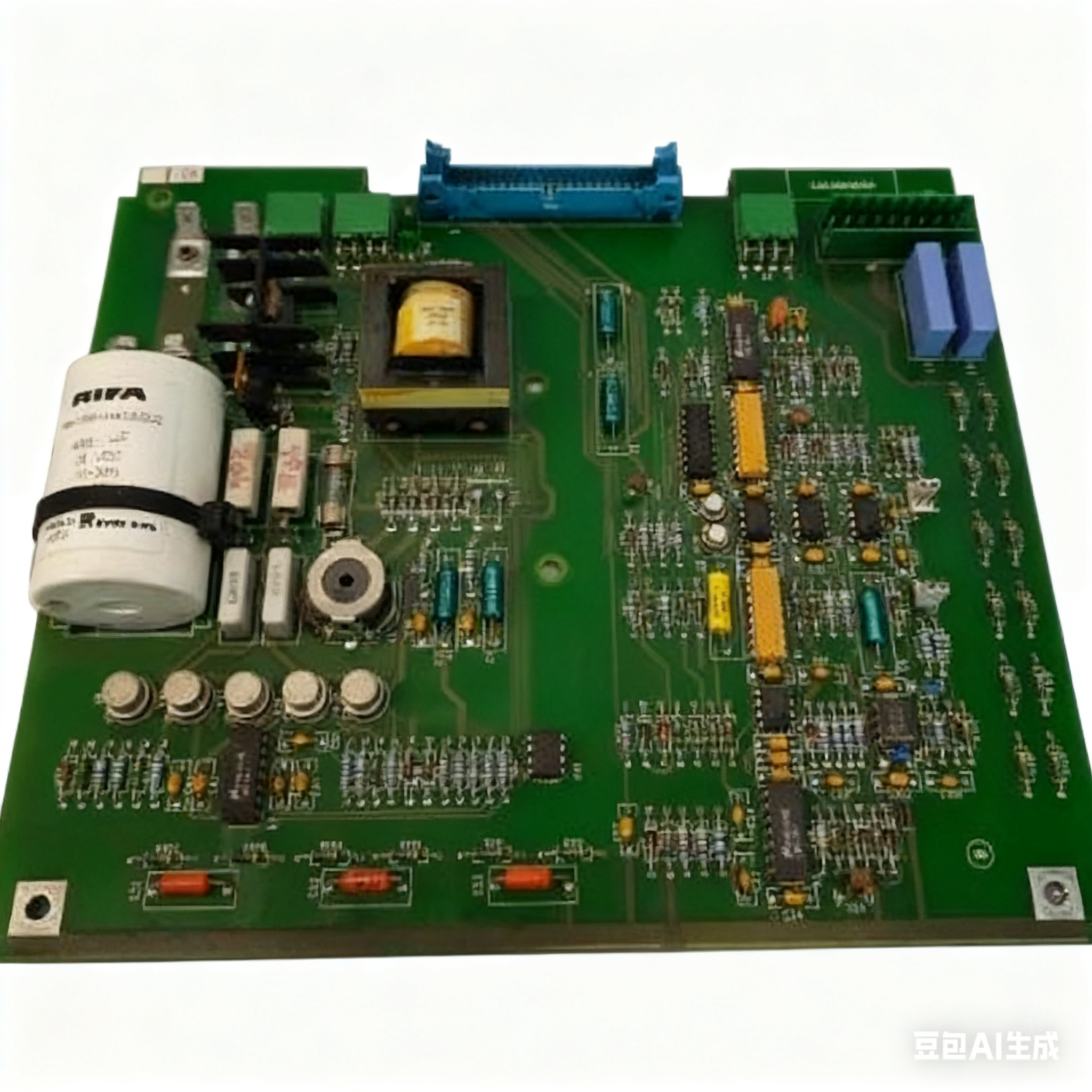

Name: Communication Board ABB Module SNAT617CHC 61037136D ABB Pulse Amplifier
Brand: Xiamen IntelliLink Global Electronic Products Co., Ltd
SKU: SNAT617CHC
Price: 999 USD
Availability: InStock

Home Products ABB Module

Communication Board ABB Module SNAT617CHC 61037136D ABB Pulse Amplifier

Product Details:

Place of Origin:	Finland
Certification:	COC
Model Number:	SNAT617CHC

Payment & Shipping Terms:

Price:	$999
Payment Terms:	T/T

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	Communication Board ABB Module , Pulse Amplifier ABB Module , Communication Board SNAT617CHC 61037136D ABB

SNAT617CHC 61037136D ABB Pulse Amplifier & Communication Board

Product Snapshot

SNAT617CHC (ABB PN 61037136D) is a plug-in pulse-amplifier and serial-communication board used inside Advant/Safoc DC-drive converters and early ACS/DCF inverter families. It amplifies fast encoder or tachometer pulses (up to 200 kHz) and provides isolated RS-485/RS-422 links to the drive's main control board, eliminating external interface hardware and cutting cabinet wiring by > 30 %.

Key Features & Benefits

High-speed pulse input - differential line-driver, 200 kHz max, 5 V or 24 V selectable
Isolated outputs - 6 x 24 V push-pull channels, 0.5 A peak, short-circuit proof
On-board serial port - isolated RS-485/RS-422, 115.2 kbaud, Modbus-RTU slave
Plug-and-play - DIN-rail clip, 24 VDC supply, LED diagnostics
Wide temperature - 0…+70 °C operating, -40…+85 °C storage
Global certs - CE, UL 508, RoHS, REACH

Technical Specifications

Parameter	Value
Part Number	SNAT617CHC 61037136D
Function	Pulse amplifier + serial comm. interface
Pulse Inputs	2 × differential (A, /A, B, /B), 200 kHz max
Input Voltage	5 V or 24 V (jumper)
Pulse Outputs	6 × 24 V push-pull, 0.5 A peak, 200 kHz
Serial Port	Isolated RS-485/RS-422, 300-115 200 bps
Isolation	1 500 V RMS port-to-logic
Supply	24 VDC ±20 %, 150 mA typical
Dimensions (W×H×D)	100 × 22.5 × 115 mm
Weight	0.15 kg
Operating Temp	0 - 70 °C
Storage Temp	-40 - +85 °C
Humidity	95 % RH non-condensing
Protection	IP20
Certifications	CE, UL 508, RoHS

Typical Applications

DC-motor tachometer pulse shaping in paper & steel mills
Encoder feedback interface for cranes & hoists
ACS/DCF inverter speed reference distribution
Retrofit of Safoc 07 SK 50 / 07 KR 91 systems
Long-distance encoder links up to 300 m

Compatible Drives / CPUs

DC Converters: DCS 500, DCS 600, DCS 800 (R-type frames)
Inverters: ACS 600, ACS 800, DCF 600 (early firmware)
PLC Interface: CI930F, CI867K01 via Modbus-RTU
Legacy Boards: 07 SK 50, 07 KR 91, 07 KT 92 with adaptor cable 3BSE018114R1

Installation & Start-up

Mount board on 35 mm DIN-rail inside converter; clip until latch clicks.
Set jumpers - choose 5 V or 24 V input level; terminate RS-485 if last node.
Wire encoder - use shielded twisted-pair, shield earthed at board only.
Connect 24 V - observe polarity; green "PWR" LED lights.
Configure drive - select "EXT PULSE" source, set pulses/revolution.
Verify pulses - oscilloscope on output terminals should show clean square wave.

LED Diagnostics

LED	Color	Meaning
PWR	Green	24 V supply OK
IN-A	Yellow	Channel A active
IN-B	Yellow	Channel B active
TX/RX	Yellow blink	Serial traffic
FAULT	Red	Over-current, under-voltage
