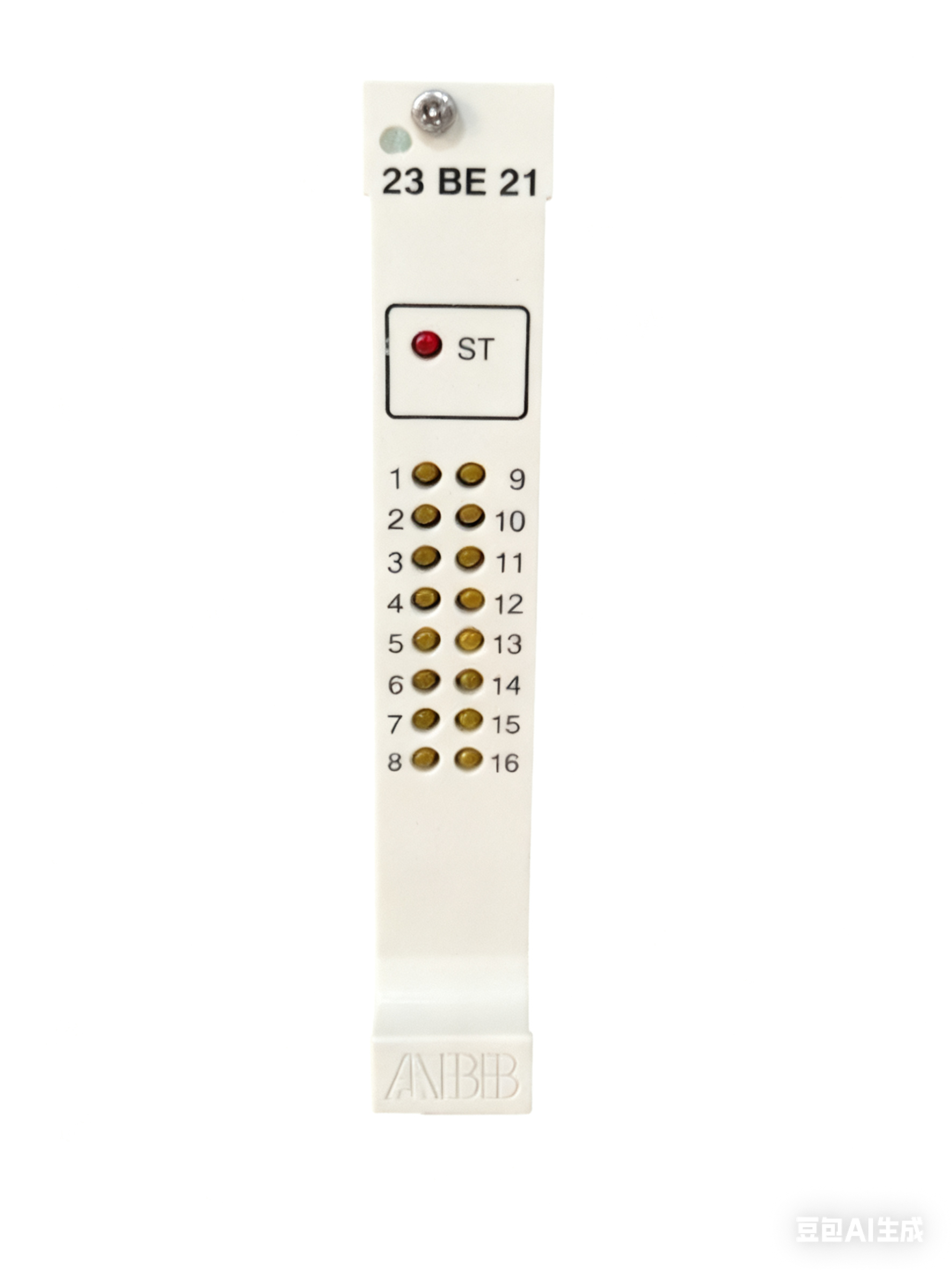

Name: Advant OCS ABB 23BE21 1KGT004900R5012 Digital IO Block
Brand: Xiamen IntelliLink Global Electronic Products Co., Ltd
SKU: 23BE21
Price: 499 USD
Availability: InStock

Home Products ABB Module

Advant OCS ABB 23BE21 1KGT004900R5012 Digital IO Block

Product Details:

Place of Origin:	Finland
Certification:	COC
Model Number:	23BE21

Payment & Shipping Terms:

Price:	$499
Payment Terms:	T/T

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	ABB 23BE21 1KGT004900R5012 , Advant OCS ABB 23BE21 1KGT004900R5012 , Advant OCS PCB Circuit Board

23BE21 1KGT004900R5012 ABB Advant OCS Digital I/O Block

Product Description

The 23BE21 is a genuine ABB Advant OCS 16-input / 16-output digital block designed for safety-critical and general automation. Featuring 24 VDC inputs and relay outputs, it delivers high-density, fault-tolerant interfacing for turbines, compressors and industrial processes while meeting SIL 2 requirements.

Key Features & Benefits

100 % OEM ABB - serialized & factory-sealed
16 isolated 24 VDC digital inputs (sink/source)
16 Form-C relay outputs, 5 A @ 250 VAC / 30 VDC
0.2 ms input filter, 1 ms output response
Built-in diagnostics (LED per channel, wire-break)
Hot-swappable on Advant OCS rack - no shutdown
DIN-rail or panel mounting, IP20 housing
-25 °C … +60 °C operating, conformal-coated
SIL 2 (IEC 61508), CE, UL 508, ATEX, IECEx certified

Technical Specifications

Parameter	Value
Model	23BE21
Part Number	1KGT004900R5012
Series	Advant OCS Digital I/O Block
Channels	16 DI / 16 DO
Input Voltage	24 VDC (16-32 V)
Input Current	2.4 mA @ 24 VDC
Output Type	Relay, Form-C, 5 A
Response Time	0.2 ms DI / 1 ms DO
Isolation	500 V channel-to-bus
Power	24 VDC ±20 %, 10 W max
Operating Temp	-25 °C … +60 °C
Humidity	5 % … 95 % RH non-condensing
Mounting	DIN-rail 35 mm or panel
Approvals	SIL 2, CE, UL 508, ATEX Zone 2, IECEx

Typical Applications

Gas/steam turbine auxiliary I/O
Compressor status and control
Generator excitation contactors
Safety-system discrete I/O (SIL 2)
Industrial automation retrofits

What's in the Box

1× 23BE21 digital I/O block
1× Removable 40-pin spring-clamp terminal block
Factory calibration certificate & traceability label
Quick-start guide & ESD wrist strap

Installation & Setup

Mount on DIN-rail or panel.
Connect 24 VDC power and field wiring.
Power on--green READY LED < 5 s.
Configure I/O in ABB Advant OCS software.
Perform loop test & SIL 2 proof-test.

Certifications & Compliance

SIL 2 (IEC 61508) suitable
CE, UL 508, CSA C22.2 No. 142
ATEX Zone 2, IECEx Ex ec IIC T4 Gc
