Name: IS200JPDCG1A GE Mark VIe Discrete Contact Input/Output Terminal Board
Brand: Xiamen IntelliLink Global Electronic Products Co., Ltd
SKU: IS200JPDCG1A
Price: 600.00 USD
Availability: InStock

Home Products GE Fanuc PLC

IS200JPDCG1A GE Mark VIe Discrete Contact Input/Output Terminal Board

Product Details:

Place of Origin:	USA
Brand Name:	GE
Certification:	CO
Model Number:	IS200JPDCG1A

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$500-700
Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 pieces one day

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	GE Mark VIe terminal board , Discrete contact I/O board , GE Fanuc PLC terminal

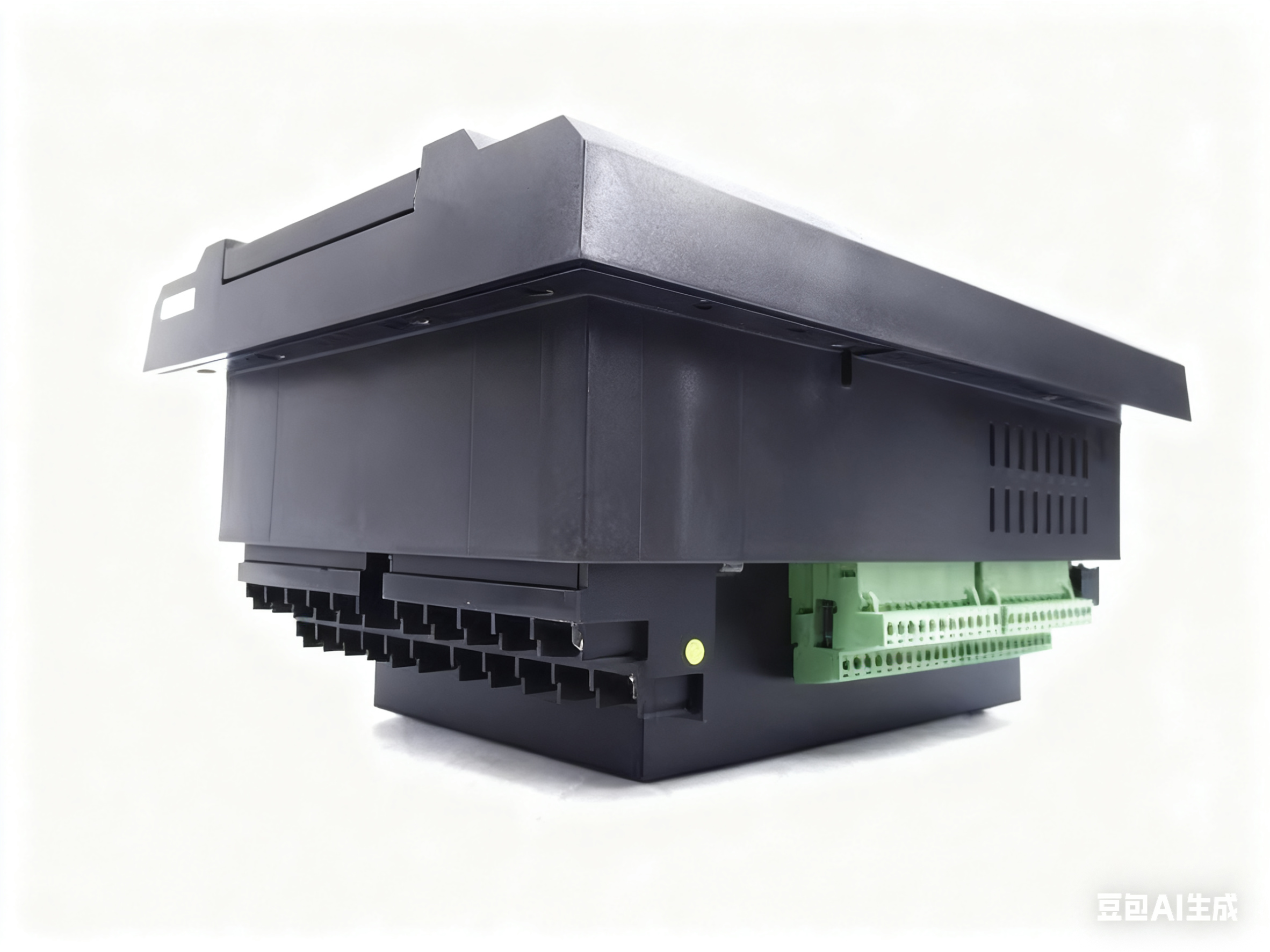

IS200JPDCG1A GE Mark VIe Discrete Contact Input/Output Terminal Board

1. Product Snapshot

IS200JPDCG1A is a Mark VIe discrete terminal board that provides 24 dry-contact inputs and 16 relay outputs in one IP20 slice. Pluggable European-style terminals, 1500 V isolation and on-board LED indicators cut commissioning time by 30%. Qualified for -40…+70 °C and 5 g vibration, it is the standard choice for turbine trip circuits, auxiliary motor starters and plant auxiliary discrete interfaces worldwide.

2. Key Features & Benefits

24 inputs & 16 outputs - 24 VDC or 125 VDC versions, field-selectable
Pluggable terminals - 40-pos Euro-block, accepts 14 - 22 AWG, 0.4 N*m torque
On-board LEDs - one per I/O point, visible with door closed
1500 V isolation - channel-to-logic, channel-to-channel 500 V
Wetting voltage included - 24 VDC @ 2 mA or 125 VDC @ 2 mA, jumper-selectable
Relay outputs - Form-A, 250 VAC / 30 VDC, 5 A resistive, fuse-less
Hot-swap ready - Mark VIe supports on-line replacement without CPU trip
Global certs - CE, UL 508, ATEX Zone 2, RoHS, REACH

3. Technical Specifications

Parameter	Value
Part Number	IS200JPDCG1A
Series	Mark VIe Distributed I/O
Function	Discrete Contact I/O Terminal Board
Inputs	24 * dry contact, 24 VDC or 125 VDC wetting
Outputs	16 * relay Form-A, 250 VAC / 30 VDC, 5 A
Isolation	1500 V RMS field-to-logic
Wetting Voltage	24 VDC @ 2 mA or 125 VDC @ 2 mA, jumper-selectable
Response Time	2 ms input filter, 5 ms relay operate/release
Power (5 V)	300 mA typical from backplane
Power (24 V)	60 mA plus relay coil current
Terminal Style	Pluggable Euro-block, 40 positions
Wire Size	14 - 22 AWG solid/stranded
Dimensions (WHD)	106 * 125 * 260 mm
Weight	0.8 kg
Operating Temp	-40…+70 °C
Storage Temp	-55…+85 °C
Humidity	5…95 % RH non-condensing
Protection	IP20 (panel mount)

4. Typical Applications

Gas-turbine trip & auxiliary circuits
Steam-turbine solenoid drivers
Plant auxiliary motor starters
Generator field breaker status
Retrofit of legacy Mark V discrete boards

5. Compatible Hardware

Rack: Mark VIe IS215VPROH2BC (vertical) or IS215HPROH2BC (horizontal)
Cable: IS200TBCVH1B (terminal board) up to 30 m away
CPU: IS215UCVEM09A/B (redundant pair supported)
Power: IS200EPSMG1A (24 VDC) or IS215PSCAH2A (125 VDC)
I/O Pack: IS200JPDBG1A (discrete pack) plugs directly onto JPDC

6. Installation & Startup

Slot board into any Mark VIe VME slot; captive screws 0.5 N*m.
Connect field wires - use ferrules for 16 AWG, torque 0.4 N*m.
Set wetting voltage - jumpers J1-J6 for 24 V or 125 V.
Assign tags - ToolboxST > I/O Config > JPDC > channel type, invert, filter.
Download - store config in controller flash; turbine can remain at idle.
Verify LEDs - green "STATUS" steady, individual I/O LEDs mirror field state.

7. What's in the Box?

1 * IS200JPDCG1A discrete I/O terminal board, factory-sealed
1 * quick-start guide (English)
2 * M4 mounting screws & serrated washers
