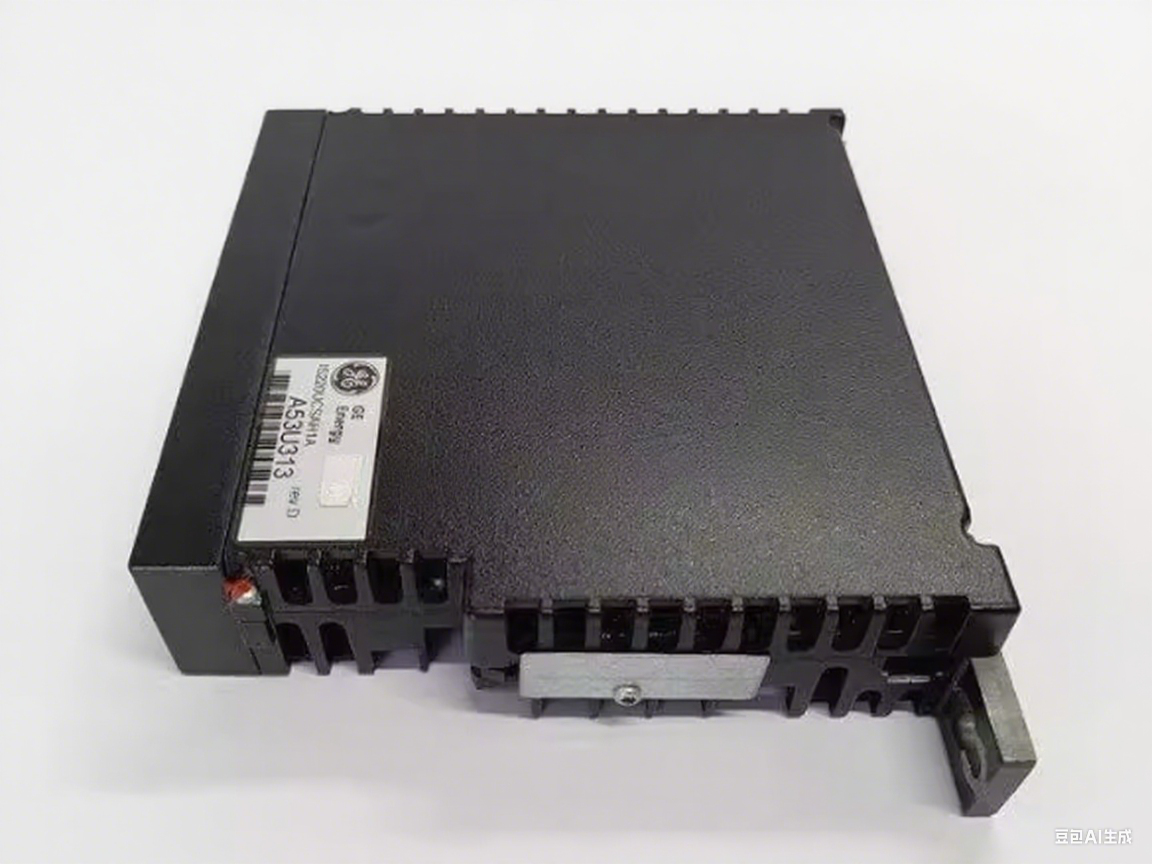

Mark VIe GE Fanuc PLC IS220UCSAH1A GE Universal Controller 667 MHz 24VDC

IS220UCSAH1A is a fan-less, base-mounted controller that forms the real-time "brain" of GE's Mark VIe turbine and process-control platform. Driven by a 667 MHz Freescale 8349 CPU and the QNX Neutrino RTOS, it executes protection, sequencing and control logic for gas, steam and wind turbines, as well as balance-of-plant equipment. Triple-redundant capability, Class I Div. 2 certification and multiple on-board Ethernet ports make it the default choice for mission-critical power-generation and oil-&-gas applications that demand millisecond response and 99.9% up-time.

• High-performance CPU - 667 MHz Freescale 8349, 512 MB DDR, fast boot < 45 s
• QNX 6.5 real-time OS - micro-kernel architecture, POSIX-compliant, SIL-2 ready
• Fan-less & rugged - 0 - 65 °C operating, -40 - +85 °C storage, 5 g vibration, 50 g shock
• Dual/redundant Ethernet - two 10/100/1000 RJ-45 ports + RS-232 console; supports RSTP & PRP
• 24 VDC wide-range - 18 - 36 V input, 12 W typical, reverse-polarity protected
• Compact & scalable - 160 mm depth, DIN-rail or base-mount; up to 3 units side-by-side for TMR
• Cyber-secure - secure-boot, signed firmware, disabled-by-default services, USB-lockout jumper
• Global certs - CE, UL 508, CUL, NFPA Class I Div. 2, ATEX Zone 2, RoHS, REACH

• Gas & steam turbine control & protection (GTCC, cogeneration)
• Wind-turbine pitch & yaw control, grid synchronization
• Compressor & pump anti-surge control (O&G mid-stream)
• Power plant BOP (balance-of-plant) auxiliary systems
• High-speed motor drive sequencing & protection

• Triple-module redundancy - mount three IS220UCSAH1A controllers side-by-side; Mark VIe firmware handles 2oo3 voting automatically
• I/O network - connects to Mark VIe I/O packs (e.g., IS220YDIAS1A, IS220AOIS1A) via 100 Mb Ethernet ring
• ToolboxST & ControlST - program in function-block, ladder or SFC; download and on-line change without stop
• Time-sync - SNTP, PTP (IEEE-1588) or IRIG-B for < 1 ms SOE timestamping

1. Verify 24 V ripple < 5 %; use shielded twisted-pair for power if cable > 10 m.
2. Apply 35 mm DIN-rail adaptor IC695ACC002 for vibration-free cabinet mounting.
3. Configure IP addresses via ToolboxST device manager; enable RSTP for ring topology.
4. Set redundancy role Primary/Secondary/Tertiary before first download.
5. Backup NVRAM to SD-card every major logic change - restore time < 2 min.

• 1 * IS220UCSAH1A controller, factory-sealed
• 1 * 35 mm DIN-rail latch (in bag)
• 2 * M4 * 12 mm mounting screws & serrated washers
• 1 * quick-start card (English)
• 1 * RJ-45 to DB-9 console cable, 1 m
