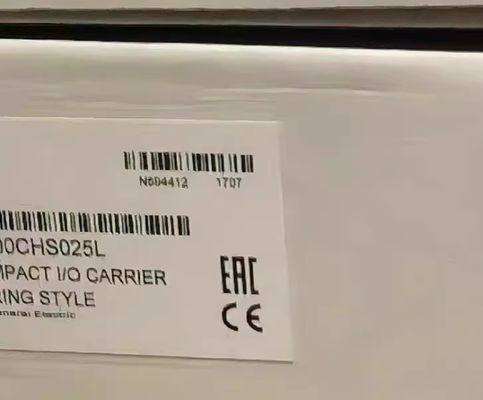

VersaMax GE Fanuc PLC IC200CHS025 GE Compact Spring Style I/O Carrier

IC200CHS025 is a slim, spring-clamp style I/O carrier that gives any VersaMax I/O module both mechanical mounting and field wiring termination in just 66.8 mm width. The detachable 20-position spring terminal block accepts 24 - 12 AWG wires, supports 2 A per point and can be released with a standard screwdriver—no ferrules required. Ideal for panels with vibration, high-density wiring or fast commissioning requirements.

• Spring-clamp terminals - vibration-proof, gas-tight connection, 0.4 N*m insertion force
• 20 terminals - 2 A per point, 300 V rated, accommodates two 18 AWG wires
• Compact footprint - 66.8 mm width saves up to 30% DIN-rail space vs. screw-type carriers
• Hot-swap ready - module inserts/removes under power; terminals remain wired
• Integrated label strip - write-on surface or slide-in paper labels (included)
• Universal mount - 35 mm DIN-rail (EN 50022) or panel screw holes
• Global certs - CE, UL 508, CUL, RoHS, REACH; -40…+85 °C storage

• Discrete: IC200MDL640/641/642/643/644/650
• Analog: IC200ALG240/260/261/262/263/264/620
• Mixed: IC200MDD84x
• Specialty: IC200BEM002 (DeviceNet), IC200PNS001 (PROFINET)

1. Strip wire 10 mm - push straight into clamp; tug-test for secure fit.
2. Use flat-blade 2.5 mm screwdriver to release spring; ferrules optional.
3. Leave 25 mm clearance above carrier for easy module insertion.
4. Torque DIN-rail clip until audible click; optional panel screws 1.0 N*m.
5. Verify current budget - carrier itself adds zero backplane load.

• Spring clamps maintain constant force even after 200+ thermal cycles
• Terminal block can be removed with module still mounted—speeds field replacement
• Color-coded levers (orange) show open/closed status at a glance

• 1 * IC200CHS025 compact spring carrier, factory-sealed
• 1 * write-on label strip (pre-installed)
• 1 * quick-start card (English)
