VersaMax IC200ALG264 GE 16 Channel Analog Input Module With 15 Bit Resolution

Product Details:

Place of Origin:	USA
Brand Name:	GE
Certification:	COC
Model Number:	IC200ALG264

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$200-300
Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 pieces one day

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	16 Channel IC200ALG264 GE , 15 Bit Resolution IC200ALG264 GE , 16 Channel Analog Input Module

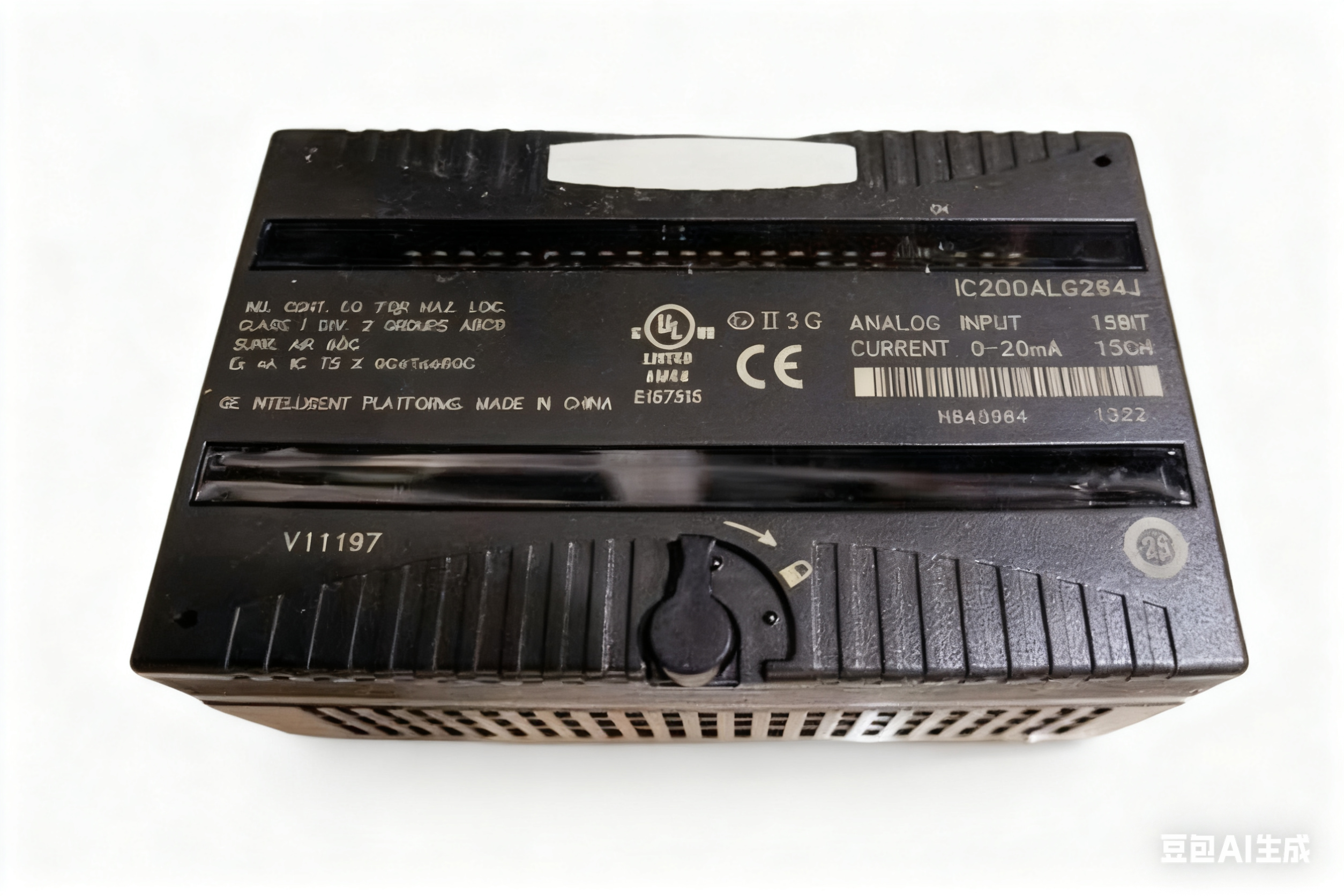

IC200ALG264 GE VersaMax 16-Channel Analog Current Input Module

Product Snapshot

The IC200ALG264 is a high-density 16-channel analog input module that accepts 4 - 20 mA, 0 - 20 mA or 0 - 24 mA signals from transmitters, valves and drives. With 15-bit resolution, differential inputs and 250 µs per-channel update, it delivers PLC-grade accuracy at the lowest cost-per-point in the VersaMax family. Ideal for water-treatment skids, packaging lines, HVAC dampers and any OEM application that needs reliable, long-distance current-loop monitoring without external resistors.

Key Features & Benefits

16 single-ended or 8 differential inputs - software selectable, 4 - 20 mA default
15-bit resolution - < 0.1 % full-scale accuracy, ±0.05 % linearity
Built-in 24 V transmitter supply - 24 VDC @ 200 mA total, short-circuit protected
Open-wire & short-circuit detection - diagnostic bit raised within 1 ms
250 µs per-channel update - 4 ms for all 16, scalable averaging filter 1 - 64 samples
Differential mode - 300 V AC common-mode rejection for noisy plants
Hot-swap ready - insert/remove under power when used with IC200CHS002/005 carriers
Global certs - CE, UL 508, CUL, RoHS; -40…+85 °C storage

Technical Specifications

Parameter	Value
Part Number	IC200ALG264
Series	VersaMax I/O
Type	16-Channel Analog Current Input
Ranges	4 - 20 mA, 0 - 20 mA, 0 - 24 mA (per channel)
Resolution	15-bit (0.61 µA @ 4 - 20 mA)
Accuracy	±0.1 % full scale @ 25 °C
Linearity	±0.05 %
Update Time	250 µs per channel, 4 ms all 16
Input Impedance	250 Ω ±0.1 % (creates 1 - 5 V signal)
Burden Power	1 W max per channel @ 20 mA
Transmitter Supply	24 VDC ±10 %, 200 mA total, current limited
Open-Wire Detect	< 1 ms, threshold < 2 mA
Isolation	1500 V RMS field-to-logic
Power (5 V)	120 mA max from backplane
Power (24 V)	60 mA plus transmitter load
Terminal Style	Box-clamp, IEC screw
Wire Size	14 - 22 AWG solid/stranded
Dimensions (WHD)	110.5 * 66.8 * 70 mm
Weight	0.12 kg
Operating Temp	0…+60 °C
Storage Temp	-40…+85 °C
Humidity	5…95 % RH non-condensing

Typical Applications

Water-treatment flow & pressure transmitters
Packaging line drive feedback (0 - 20 mA)
HVAC valve position (4 - 20 mA)
Oil & gas well-head choke position
OEM skids needing 16 loops in 110 mm width

Compatible Carriers

IC200CHS002 - box-style screw terminals (most popular)
IC200CHS005 - spring-clamp version for vibration zones
IC200CHS001 - barrier-style for extra isolation

Installation & Wiring Tips

Use shielded twisted-pair - connect shield at panel entry only.
Torque terminals to 0.4 N*m - over-tightening may crack housing.
Maintain 25 mm clearance above module for hot-insertion.
Verify transmitter burden - total loop resistance ≤ 750 Ω (module 250 Ω + wire + supply).
Enable 24 V supply in software if loop-powered transmitters are used.

Software Configuration (Proficy Machine Edition)

Select range per channel: 4 - 20 mA, 0 - 20 mA, 0 - 24 mA
Set temperature unit °C or °F; enable 50/60 Hz noise rejection
Choose filter depth 1 - 64 samples for noisy environments
Map diagnostic bits to %I or %M for open-wire alarms

What's in the Box?

1 * IC200ALG264 analog module, factory-sealed
1 * quick-start card (English)
1 * terminal torque label
