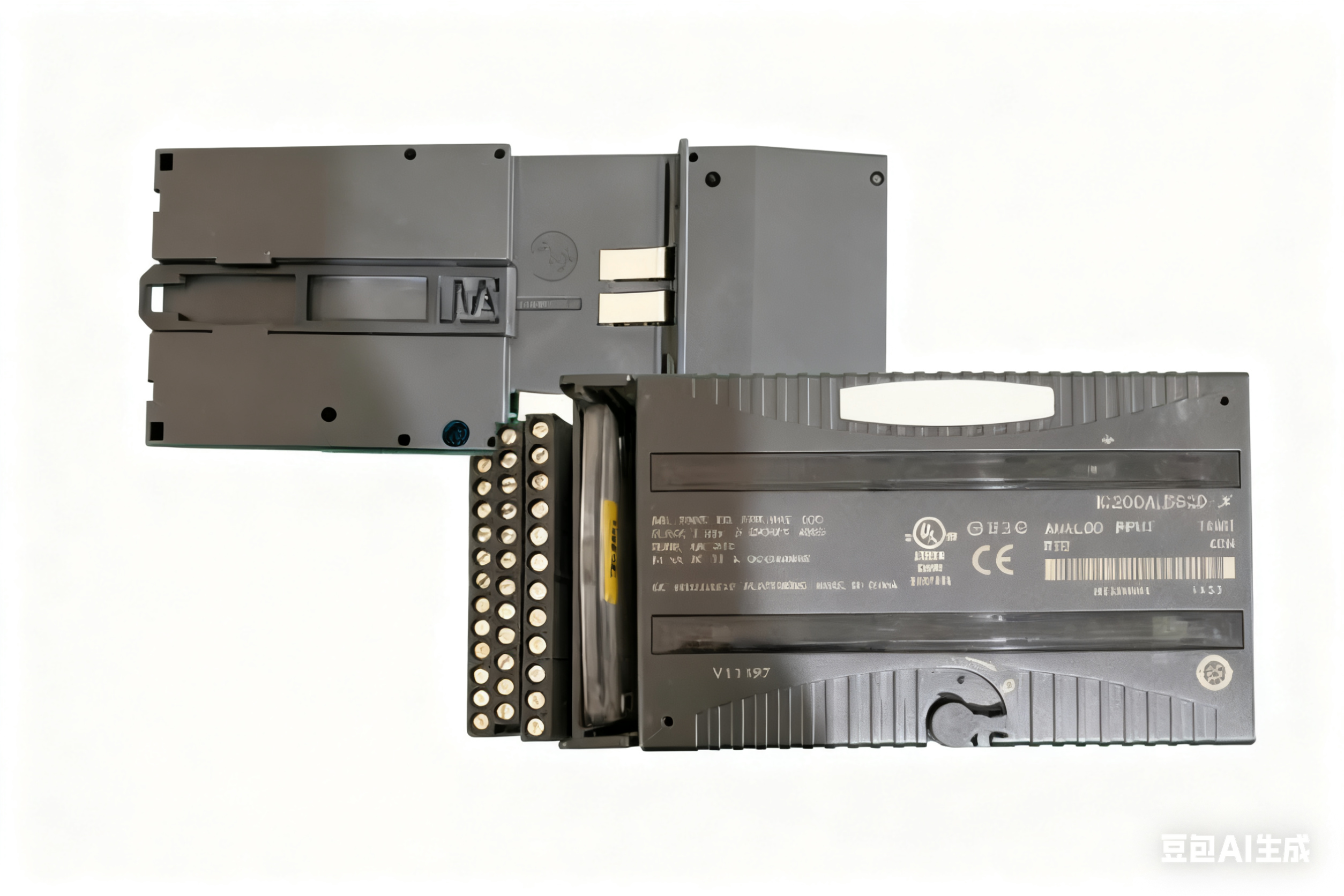

IC200ALG620 GE VersaMax 8-Channel RTD/Thermocouple Analog Input Module

Product Snapshot

The IC200ALG620 is an 8-channel universal analog input module that connects directly to RTD (Pt100/Pt1000, Ni120) or thermocouple (J, K, T, E, R, S, B, N) sensors without requiring external signal conditioners. With 16-bit A/D resolution, 0.1°C accuracy, and per-channel open-wire detection, this module is ideal for extruders, HVAC systems, power-plant auxiliary systems, and food-processing lines requiring reliable temperature monitoring at a low cost per point.

Key Features & Benefits

8 universal inputs - software-selectable RTD or thermocouple per channel
16-bit resolution - 0.1°C for RTD, 0.1°F selectable; accuracy ±0.25%
Open-wire & short-circuit detection - diagnostic bit sent to CPU within 250 ms
Cold-junction compensation - built-in sensor on terminals eliminates external CJ
Differential inputs - 300 V AC common-mode rejection for noisy plants
Fast update - 50 ms all 8 channels, scalable averaging filter 1…64 samples
Hot-swap ready - swap under power when used with IC200CHS002/005 carriers
Global certs - CE, UL 508, CUL, RoHS; -40…+85°C storage

Technical Specifications

Part Number	IC200ALG620
Series	VersaMax I/O
Type	8-Channel RTD/TC Input
Sensor Types	Pt100, Pt200, Pt500, Pt1000, Ni120, Cu10; J, K, T, E, R, S, B, N
Resolution	16-bit (0.1°C / 0.1°F)
Accuracy RTD	±0.25% of reading ±0.25°C
Accuracy TC	±0.5°C (J, K, T, E); ±1.0°C (R, S, B, N)
Update Rate	50 ms all channels (default), 10 ms fast mode
Input Impedance	> 10 MΩ RTD, > 1 MΩ TC
Open-Wire Detect	< 250 ms, per channel bit
Common-Mode	300 V AC, 100 dB rejection
Isolation	1500 V RMS field-to-logic
Power (5 V)	125 mA max from backplane
Power (24 V)	60 mA max for excitation
Terminal Style	Box-clamp, IEC screw
Wire Size	14 - 22 AWG solid/stranded
Dimensions (WHD)	110.5 * 66.8 * 70 mm
Weight	0.11 kg
Operating Temp	0…+60°C
Storage Temp	-40…+85°C
Humidity	5…95% RH non-condensing

Typical Applications

Plastic extruder barrel zones
HVAC supply/return air ducts
Power-plant bearing & stator RTDs
Food freezer/cook validation
Kiln & furnace TC grids (K & S types)

Compatible Carriers

IC200CHS002 - box-style screw terminals (most popular)
IC200CHS005 - spring-clamp version for vibration zones
IC200CHS001 - barrier-style for extra isolation

Installation & Sensor Wiring Tips

Use 3- or 4-wire RTD for best accuracy; jumper unused sense terminal on carrier.
Keep TC extension wire within 10 m and use matched-type compensating cable.
Torque terminals to 0.4 N*m - over-tightening may crack housing.
Maintain 25 mm clearance above module for hot-insertion.
Verify power budget - each module adds 125 mA @ 5 V to backplane.
