high speed GE Fanuc PLC IC200ERM002 GE VersaMax Expansion Receiver Module

Product Details:

Place of Origin:	USA
Brand Name:	GE
Certification:	COC
Model Number:	IC200ERM002

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$50-100
Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 pieces one day

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	high speed GE Fanuc PLC , Expansion Receiver GE Fanuc PLC , Expansion Receiver IC200ERM002 GE

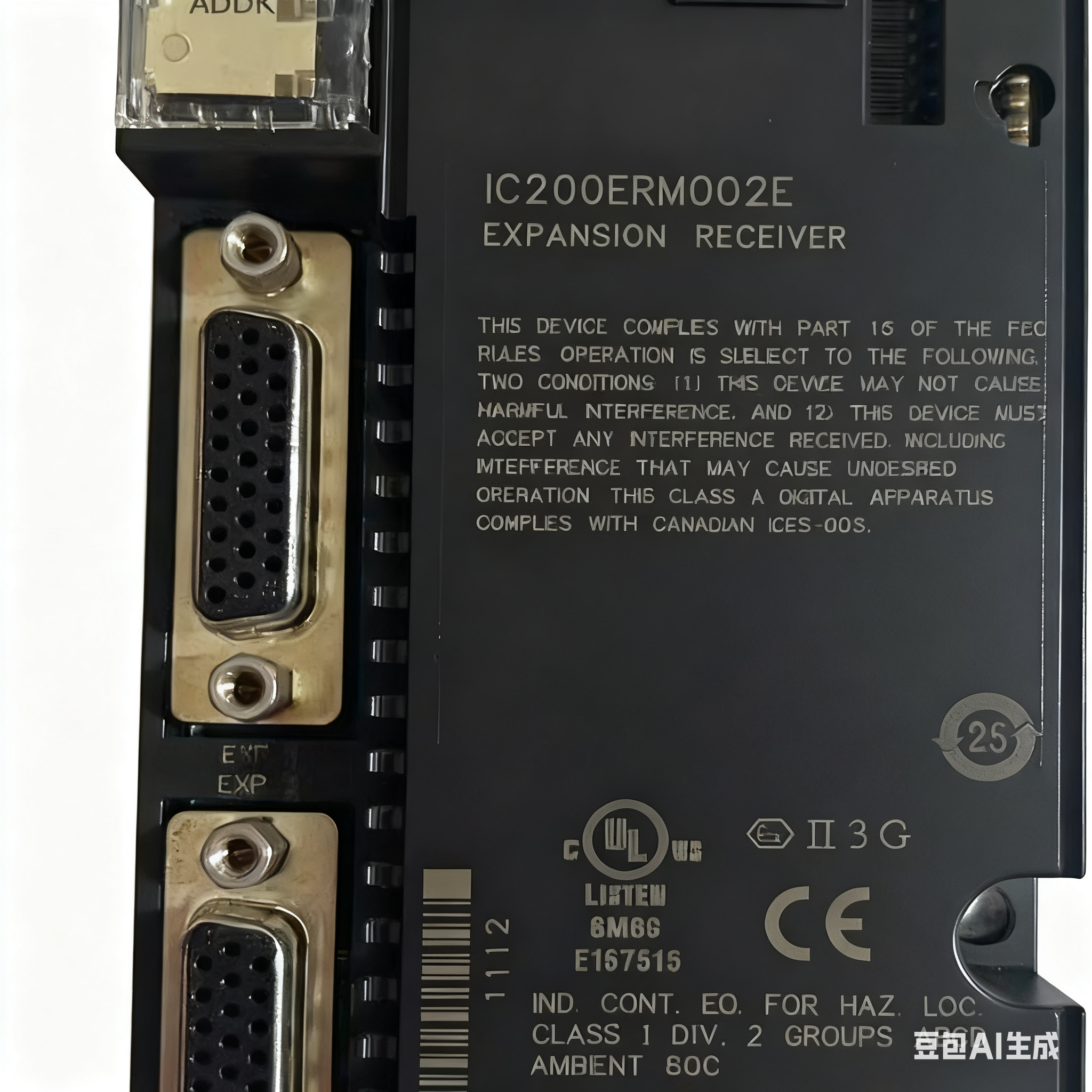

IC200ERM002 GE VersaMax Expansion Receiver Module

Product Snapshot

The IC200ERM002 is a single-slot Expansion Receiver Module that extends VersaMax I/O racks up to 750 m from the CPU. When paired with an IC200EBI001 or IC200CPU001 in the main rack, this module provides a high-speed parallel backplane link over low-cost CAT5e cable, supporting 64 I/O modules and 2,048 digital points per expansion node. Features like auto-baud detection and hot-swap capability significantly reduce commissioning time and downtime in large distributed systems.

Key Features & Benefits

Long-distance link - up to 750 m shielded CAT5e, 38.4 kbaud, ≤ 5 ms update
64-module capacity - mix discrete, analog, motion or specialty I/O in expansion rack
Plug-and-play - auto-baud, auto-address; no DIP switches
Hot-swap - insert/remove under power when used with IC200CHS002/005 carriers
Isolated power - on-board DC/DC converter isolates 5 V & 3.3 V backplane supplies
DIN-rail or panel - snaps onto 35 mm rail; panel holes provided
Global certs - CE, UL 508, CUL, RoHS; -40…+85 °C storage

Technical Specifications

Parameter	Value
Part Number	IC200ERM002
Series	VersaMax I/O
Function	Expansion Receiver
Slot Requirement	1 * VersaMax I/O slot
Cable Type	CAT5e or CAT6 STP, 150 Ω characteristic
Data Rate	38.4 kbaud fixed
Max Distance	750 m (shielded)
Max Modules	64 per expansion node
Max I/O	2,048 digital / 512 analog words
Isolation	1,500 V RMS expansion-to-logic
Power (5 V)	350 mA typical, 450 mA max
Power (24 V)	60 mA for cable bias
Terminal Style	Plug-in 10-pos spring clamp (included)
Wire Size	24 - 16 AWG solid/stranded
Dimensions (WHD)	66.8 * 110.5 * 70 mm
Weight	0.13 kg
Operating Temp	0…+60 °C
Storage Temp	-40…+85 °C
Humidity	5…95 % RH non-condensing

Typical System Topology

[CPU rack] - (IC200EBI001) --CAT5e--> [Expansion rack 1] - (IC200ERM002) --CAT5e--> [Expansion rack 2] … up to 7 nodes
Each node requires its own 24 VDC supply; earth reference must be bonded at one point only.

Installation & Wiring Tips

Use shielded CAT5e - connect drain wire to earth at main rack only to avoid ground loops.
Maintain 25 mm clearance above module for hot-insertion.
Terminate ends - 120 Ω resistor across TX+/TX- at last node (resistor pack included).
Verify power budget - each ERM adds 350 mA @ 5 V to expansion rack.
Label cables - port labelled "IN" faces main rack, "OUT" continues to next node.
