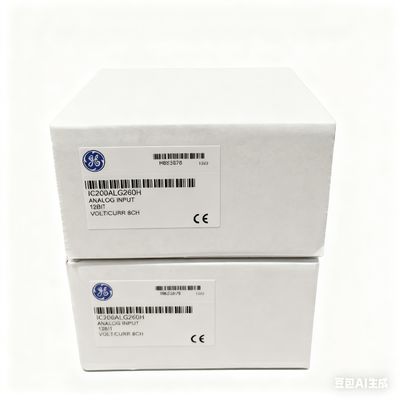

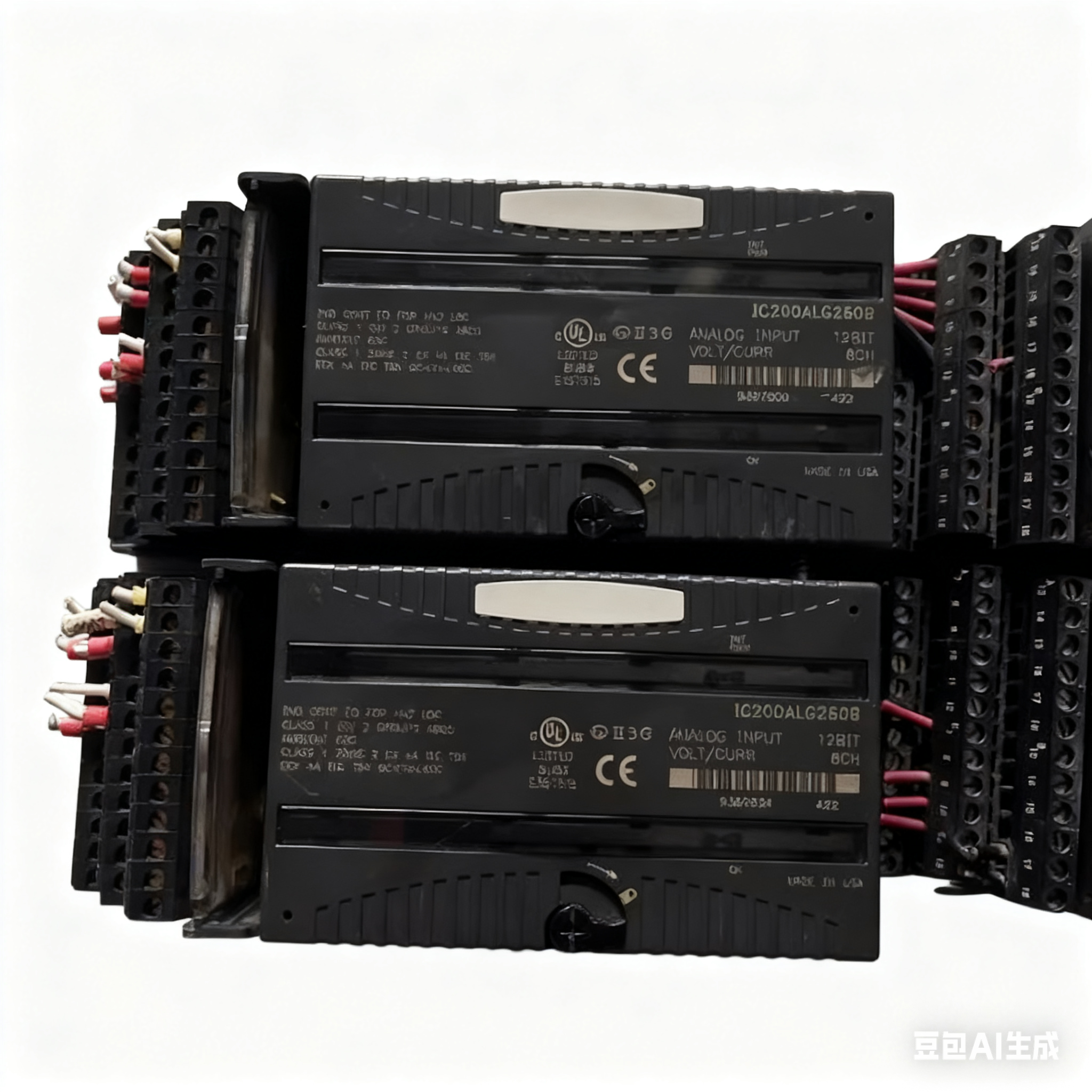

VersaMax GE Fanuc PLC IC200ALG260 GE 8 Channel Analog Input Module

VersaMax GE Fanuc PLC IC200ALG260 GE 8 Channel Analog Input Module

  • VersaMax GE Fanuc PLC IC200ALG260 GE 8 Channel Analog Input Module
  • VersaMax GE Fanuc PLC IC200ALG260 GE 8 Channel Analog Input Module
VersaMax GE Fanuc PLC IC200ALG260 GE 8 Channel Analog Input Module
Product Details:
Place of Origin: USA
Brand Name: GE
Certification: COC
Model Number: IC200ALG260
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $100-200
Packaging Details: original
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10 pieces one day
Contact Now
Detailed Product Description
Type: Module Shipping By: DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time: In Stock Product Type: Module
Payment: T/T Trading Term: EXW
Highlight:

Analog Input GE Fanuc PLC

,

8 Channel GE Fanuc PLC

,

8 Channel IC200ALG260 GE

IC200ALG260 GE VersaMax 8-Channel Analog Input Module
Product Description

The IC200ALG260 is a genuine GE Fanuc VersaMax analog input module offering eight isolated 0-20 mA or 0-10 VDC channels with 12-bit resolution and ±0.3% accuracy. Ideal for temperature, pressure, level and flow transmitters, it delivers 2 ms updates, broken-wire diagnostics and hot-swap capability for compact PLC systems.

Key Features & Benefits
  • 100% OEM GE - serialized & factory-sealed
  • 8 isolated analog inputs (0-20 mA or 0-10 V per channel)
  • 12-bit resolution, ±0.3% full-scale accuracy
  • 2 ms update time, broken-wire detection on current mode
  • Over-range, short-circuit & reverse-polarity protection
  • Hot-swappable on VersaMax rack - no CPU restart
  • -40°C to +70°C operating, conformal-coated
  • SIL 2 (IEC 61508), CE, UL 508, ATEX, IECEx certified
Technical Specifications
Parameter Value
Model IC200ALG260
Series GE Fanuc VersaMax
Channels 8 isolated analog inputs
Input Ranges 0-20 mA or 0-10 V (DIP-selectable)
Resolution 12-bit (0.025%)
Accuracy ±0.3% FS @ 25°C
Update Time 2 ms per channel
Input Impedance 250 Ω (current) / > 1 MΩ (voltage)
Isolation 500 V channel-to-bus
Power 5 VDC @ 120 mA (backplane)
Operating Temp -40°C to +70°C
Humidity 5% to 95% RH non-condensing
Mounting VersaMax rack, 1 slot
Approvals SIL 2, CE, UL 508, ATEX Zone 2, IECEx
Typical Applications
  • Pressure, flow, level transmitters
  • Temperature loop measurement
  • VFD speed feedback
  • Compressor & pump monitoring
  • SIL 2 safety-critical loops
What's in the Box
  • 1* IC200ALG260 module
  • 1* Removable 20-pin spring-clamp terminal block
  • Factory calibration certificate & traceability label
  • Quick-start guide & ESD wrist strap
Installation & Setup
  1. Insert module into any VersaMax rack slot.
  2. Connect sensor wiring to terminal block.
  3. Power on--green READY LED < 5 s.
  4. Configure range & alarms via Proficy Machine Edition.
  5. Perform loop test & SIL proof-test.
