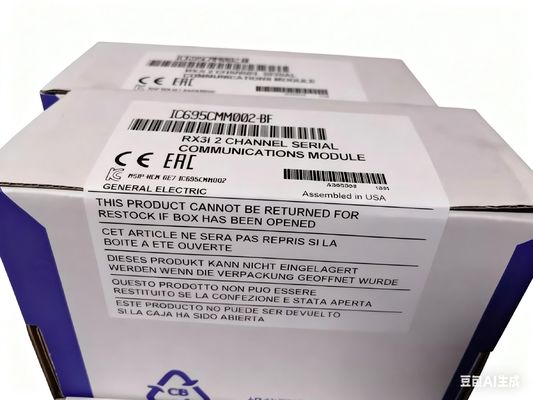

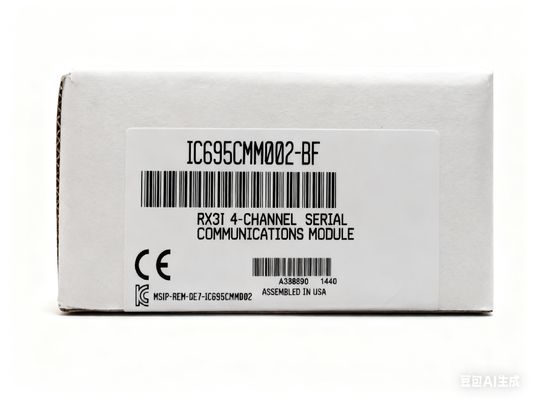

Name: Single Slot IC695CMM002 GE PAC Systems RX3i Serial Communications Module High Throughput
Brand: Xiamen IntelliLink Global Electronic Products Co., Ltd
SKU: IC695CMM002
Price: 600.00 USD
Availability: InStock

Home Products GE Fanuc PLC

Single Slot IC695CMM002 GE PAC Systems RX3i Serial Communications Module High Throughput

Product Details:

Place of Origin:	USA
Brand Name:	GE
Certification:	COC
Model Number:	IC695CMM002

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$500-700
Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 pieces one day

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	single slot IC695CMM002 GE , High throughput IC695CMM002 GE , single slot Communications Module

GE IC695CMM002 PACSystems RX3i Serial Communications Module

Product Snapshot

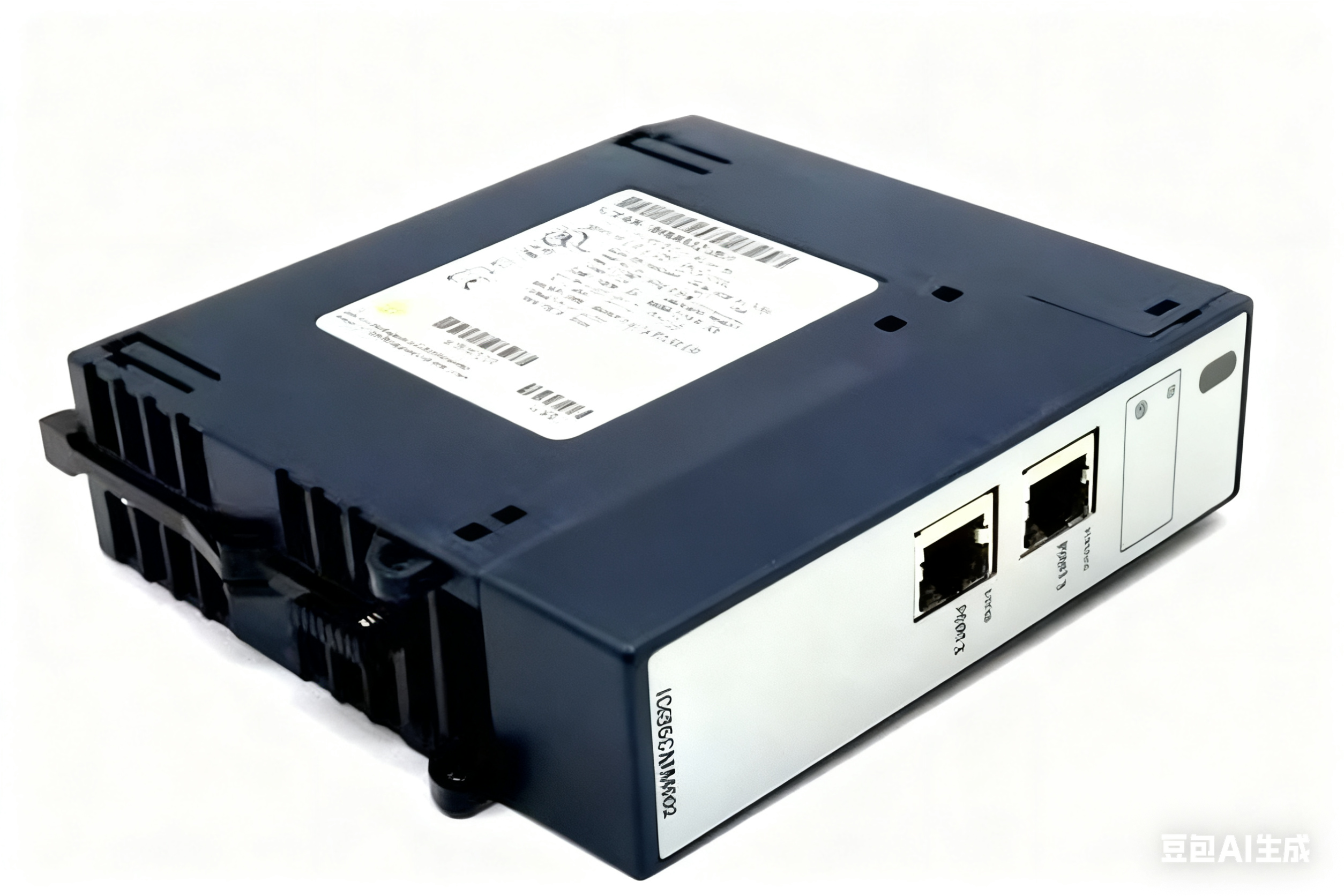

IC695CMM002 is a single-slot Serial Communications Module that adds two fully-isolated serial ports to any RX3i PACSystems rack. Each port is software-selectable for RS-232, RS-485 or RS-422 and supports Modbus RTU, Modbus ASCII, CCM, SNP & custom protocols up to 115.2 kbaud. It is the ideal bridge between modern RX3i CPUs and legacy drives, barcode readers, scales, flow-meters or any other ASCII/RTU device.

Key Features & Benefits

Dual isolated ports - 2 kV isolation protects CPU from ground loops & surges
Tri-protocol per port - Modbus RTU Master/Slave, CCM, SNP, or generic ASCII
Auto-negotiation - baud, parity, data bits & stop bits set in Proficy Machine Edition, no DIP switches
High throughput - 2 kB transmit & 2 kB receive buffer per port, 1 ms CPU scan impact typical
Wide temp range - 0…+60 °C operating, -40…+85 °C storage, 5 g vibration
Hot-swap ready - insert/remove under power when rack power budget ≤ 70 %
Global compliance - CE, UL 508, CUL, ATEX Cat 3, RoHS, REACH

Technical Specifications

Parameter	Value
Part Number	IC695CMM002
Series	PACSystems RX3i
Function	Serial Communications Module
Slot Requirement	1 * RX3i I/O slot
Ports	2 * software-selectable RS-232/422/485
Isolation	2 kV port-to-logic, 500 V port-to-port
Baud Rates	300 - 115 200 bps (any standard rate)
Cable Length	15 m (RS-232), 1 200 m (RS-485)
Protocols	Modbus RTU Master/Slave, Modbus ASCII, CCM, SNP, Generic ASCII
Data Buffer	2 kB TX / 2 kB RX per port
Power (5 V)	450 mA typical, 600 mA max
Power (3.3 V)	100 mA typical
Dimensions (WHD)	26 * 133 * 122 mm
Weight	0.16 kg
Operating Temp	0…+60 °C
Storage Temp	-40…+85 °C
Humidity	5…95 % RH non-condensing

Typical Applications

SCADA/RTU serial polling (Modbus RTU)
Legacy GE 90-70 SNP device migration
Multi-drop RS-485 drives & flow-meters
Barcode/RFID ASCII string handling
Protocol converter gateway (RTU ↔ ASCII)

Quick Start Guide

Insert module in any RX3i I/O slot; torque captive screws 0.4 N*m.
Wire port - use shielded cable, ground shield at one end only.
Configure - Proficy ME > Hardware > CMM002 > Port > Protocol, baud, parity.
Assign memory - map %AI, %AQ, %M or %R for Modbus registers.
Download - store config in CPU flash; cycle power optional.
Verify LEDs - green "PORT" steady, amber "ACT" blinks with traffic.

What's in the Box?

1 * IC695CMM002 serial module, factory-sealed
1 * quick-start guide (English)
1 * terminal block plug (already fitted)
