IC200CHS002 GE VersaMax Box-Style I/O Carrier – In-Stock, 1-Yr Warranty, Ships Today

Product Details:

Place of Origin:	USA
Brand Name:	GE
Certification:	COC
Model Number:	IC200CHS002

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$100-200
Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 pieces one day

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	GE VersaMax I/O Carrier , VersaMax Box-Style Carrier , ABB Module with warranty

IC200CHS002 GE VersaMax Box-Style I/O Carrier – In-Stock, 1-Yr Warranty, Ships Today

1. Product Snapshot

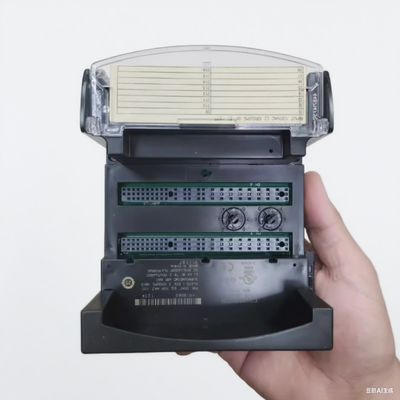

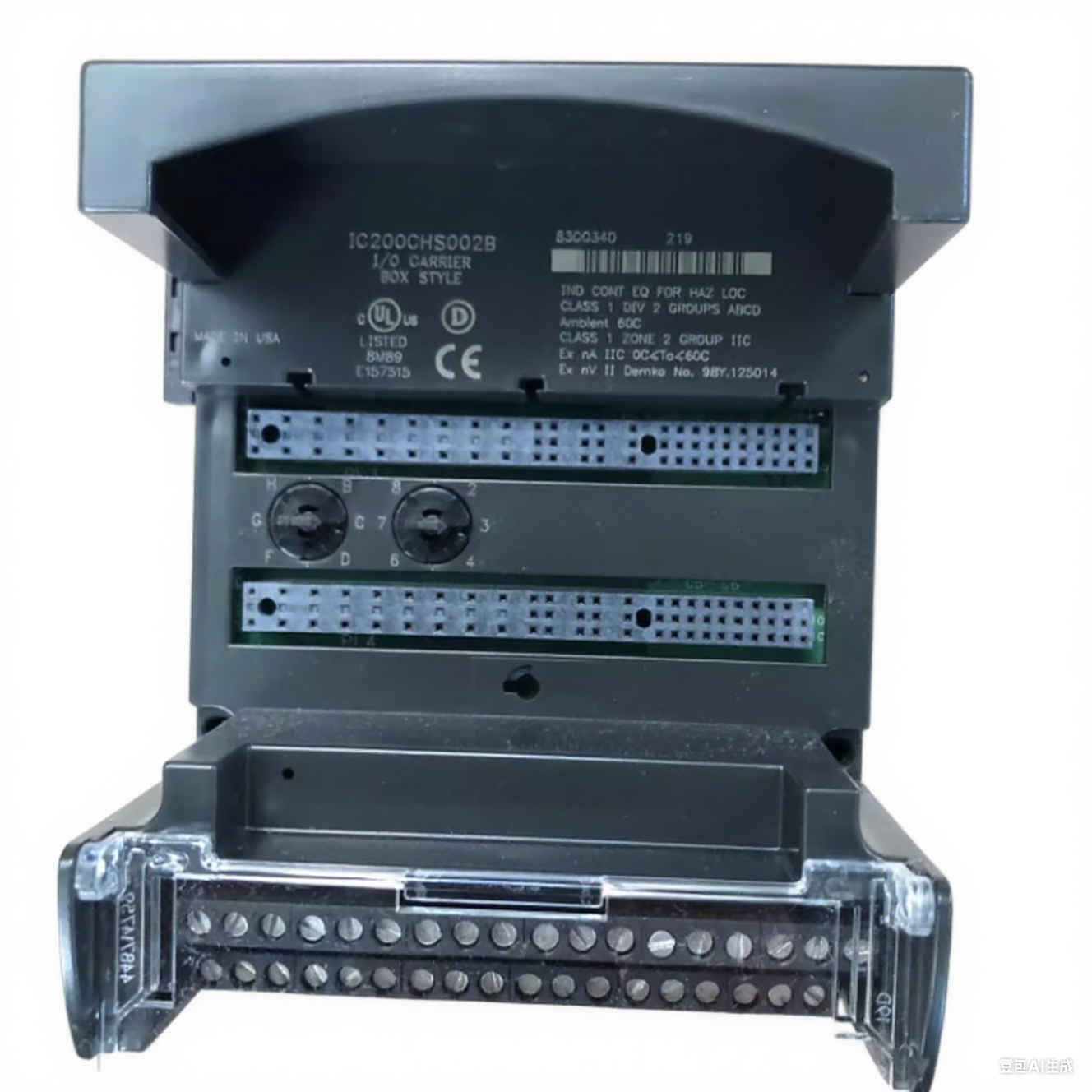

The IC200CHS002 is a rugged, box-style I/O carrier that provides both mechanical mounting and backplane communications for a single VersaMax I/O module. Featuring 36 clearly-labeled IEC screw terminals, the carrier accepts field wiring from AWG 14-22 and distributes up to 8 A of power and signal current. Its compact footprint and snap-on DIN-rail design make it ideal for OEMs, panel builders, and retrofit projects requiring reliable I/O termination without additional interposing hardware.

2. Why Panel Builders Choose IC200CHS002

Universal module seat - accepts any VersaMax discrete, analog, mixed or specialty I/O module
High-density wiring - 32 I/O points + 4 shared power terminals in 110 mm width
Vibration-proof - reinforced PA66 housing and captive stainless-steel clamps; qualified to 5 g vibration, 50 g shock
Tool-free DIN-rail - snaps onto 35 mm rail in < 3 s, releases with a flat-blade screwdriver
Hot-swappable - modules insert or remove under power without disturbing neighboring carriers (when system supply allows)
Global certifications - CE, UL 508, RoHS, REACH; rated -40…+85 °C storage, 0…+60 °C operation

3. Technical Specifications

Parameter	Value
Part Number	IC200CHS002
Series	VersaMax I/O
Function	Box-style I/O carrier (local)
Terminals	36 × IEC box-clamp, screw type
Wire Size	1 × AWG 14-22 or 2 × AWG 18
Current Rating	2 A per point, 8 A per power common
Voltage	264 V AC max, 30 V DC max
Dimensions (W×H×D)	110.5 × 139.7 × 70 mm (4.35 × 5.5 × 2.76 in)
Weight	0.18 kg (0.4 lb)
Mounting	35 mm DIN-rail (EN 50022) or panel mount
Operating Temp	0…+60 °C (32…140 °F)
Storage Temp	-40…+85 °C
Humidity	5…95 % RH non-condensing
Protection	IP20 (IEC 60529)

4. Compatible Modules (Selection)

Install any one of the following on a single IC200CHS002 carrier:

Discrete I/O: IC200MDL640/641/642/643/644/650 (24 V DC), IC200MDL329/330 (120 V AC), IC200MDD84x (mixed)
Analog I/O: IC200ALG240/260/261/262/263/264, IC200ALG430/431/432
Specialty: IC200BEM002 (DeviceNet), IC200PNS001 (PROFINET), IC200ERM002 (expansion receiver)

5. Installation & Wiring Tips

Ground the DIN-rail - unpainted, corrosion-free rail must be bonded to < 0.1 Ω panel earth for EMC compliance.
Torque screws to 0.4 N*m (3.5 lb*in) - over-tightening may crack the terminal housing.
Leave 25 mm vertical clearance above the carrier for easy module insertion.
Label wires immediately - use GE wire tags or heat-shrink sleeves; terminal numbers are laser-etched on the carrier.
Verify power budget - sum 5 V & 3.3 V backplane loads; each carrier adds 15 mA @ 5 V to the overall rack consumption.
