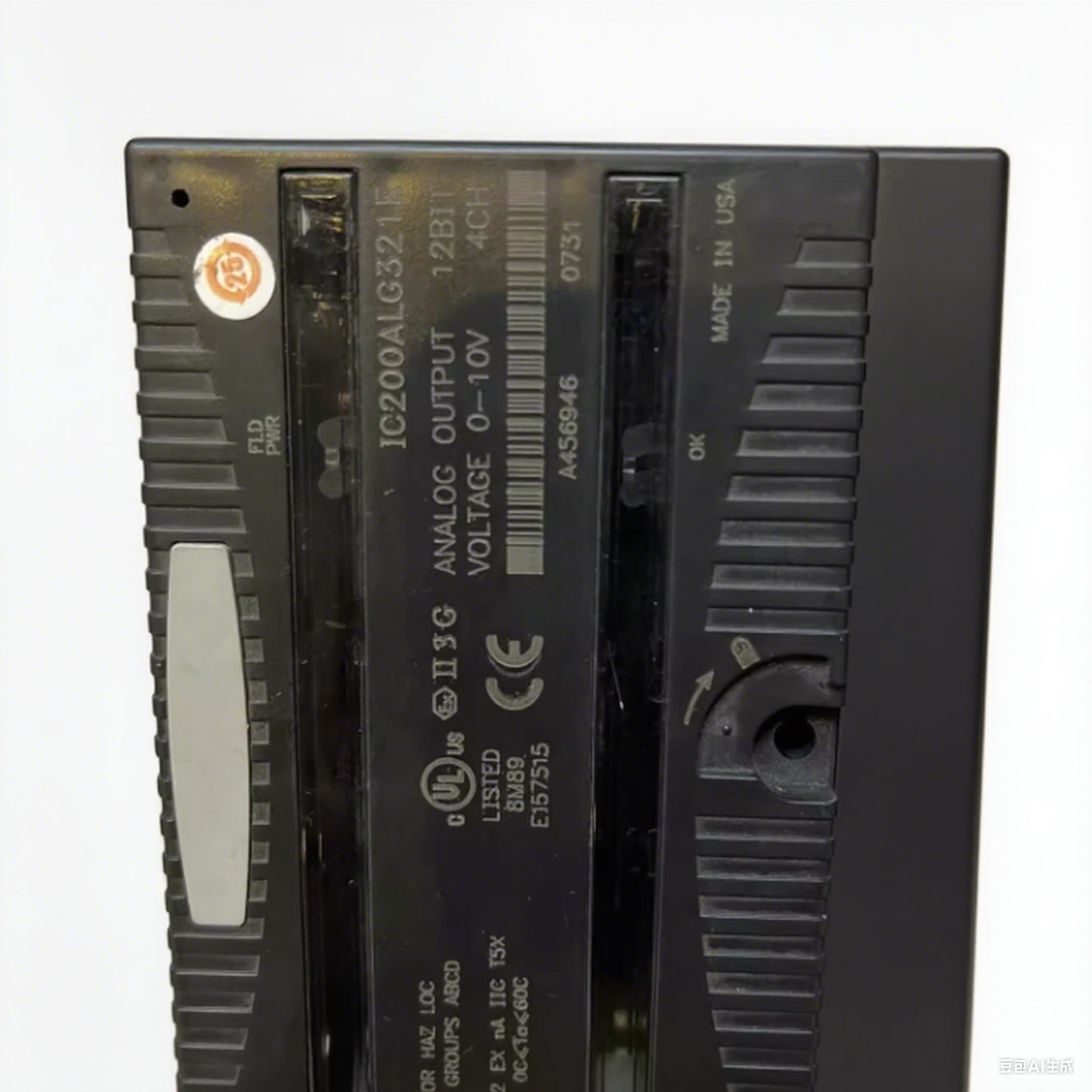

IC200ALG321 GE VersaMax 4-Channel Analog Output Module

IC200ALG321 GE VersaMax 4-Channel Analog Output Module

  • IC200ALG321 GE VersaMax 4-Channel Analog Output Module
IC200ALG321 GE VersaMax 4-Channel Analog Output Module
Product Details:
Place of Origin: USA
Brand Name: GE
Certification: COC
Model Number: IC200ALG321
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $300-500
Packaging Details: original
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10 pieces one day
Contact Now
Detailed Product Description
Type: Module Shipping By: DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time: In Stock Product Type: Module
Payment: T/T Trading Term: EXW
Highlight:

GE VersaMax analog output module

,

4-channel PLC output module

,

GE Fanuc analog module with warranty

IC200ALG321 GE VersaMax 4-Channel Analog Output Module
The IC200ALG321 is a genuine GE Fanuc VersaMax analog output module offering four isolated 0-20 mA or 0-10 VDC channels with 12-bit resolution and ±0.3% accuracy. Designed for compact PLC systems, it provides fast 2 ms updates, broken-wire diagnostics and hot-swap capability for valves, drives and process control loops.
Key Features & Benefits
  • 100% OEM GE - serialized & factory-sealed
  • 4 isolated analog outputs (0-20 mA or 0-10 V per channel)
  • 12-bit resolution, ±0.3% full-scale accuracy
  • 2 ms update time, broken-wire detection on current mode
  • Short-circuit, over-voltage & reverse-polarity protection
  • Hot-swappable on VersaMax rack - no CPU restart
  • -40°C … +70°C operating, conformal-coated
  • SIL 2 (IEC 61508), CE, UL 508, ATEX, IECEx certified
Technical Specifications
Parameter Value
Model IC200ALG321
Series GE Fanuc VersaMax
Channels 4 isolated analog outputs
Output Ranges 0-20 mA or 0-10 V (DIP-selectable)
Resolution 12-bit (0.025%)
Accuracy ±0.3% FS @ 25°C
Update Time 2 ms per channel
Load (Current) 0-500 Ω (0-20 mA)
Load (Voltage) ≥ 1 kΩ (0-10 V)
Isolation 500 V channel-to-bus
Power 5 VDC @ 135 mA (backplane)
Operating Temp -40°C … +70°C
Humidity 5% … 95% RH non-condensing
Mounting VersaMax rack, 1 slot
Approvals SIL 2, CE, UL 508, ATEX Zone 2, IECEx
Typical Applications
  • Valve & damper positioning
  • VFD speed reference
  • Temperature loop final control
  • Pump & compressor loading
  • SIL 2 discrete safety functions
What's in the Box
  • 1* IC200ALG321 module
  • 1* Removable 20-pin spring-clamp terminal block
  • Factory calibration certificate & traceability label
  • Quick-start guide & ESD wrist strap
Installation & Setup
  1. Insert module into any VersaMax rack slot.
  2. Connect 24 VDC field supply and analog wiring.
  3. Power on--green READY LED < 5 s.
  4. Configure range & alarms via Proficy Machine Edition.
  5. Perform loop test & SIL proof-test.
