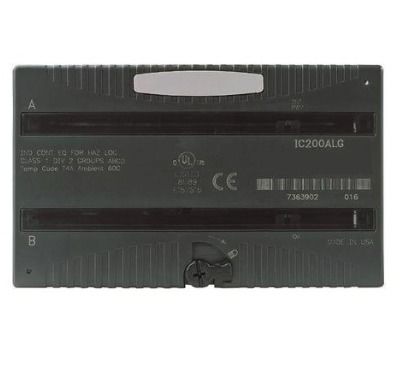

IC200ALG266 VersaMax GE Fanuc 8-Channel RTD/Thermocouple Input Module

IC200ALG266 VersaMax GE Fanuc 8-Channel RTD/Thermocouple Input Module

  • IC200ALG266 VersaMax GE Fanuc 8-Channel RTD/Thermocouple Input Module
  • IC200ALG266 VersaMax GE Fanuc 8-Channel RTD/Thermocouple Input Module
IC200ALG266 VersaMax GE Fanuc 8-Channel RTD/Thermocouple Input Module
Product Details:
Place of Origin: USA
Brand Name: General Electric
Certification: COC
Model Number: IC200ALG266
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $300-500
Packaging Details: original
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10 pieces one day
Contact Now
Detailed Product Description
Type: Module Shipping By: DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time: In Stock Product Type: Module
Payment: T/T Trading Term: EXW
Highlight:

GE Fanuc RTD input module

,

VersaMax thermocouple module

,

8-channel PLC input module

IC200ALG266 VersaMax GE Fanuc 8-Channel RTD/Thermocouple Input Module
Product Description
The IC200ALG266 is a genuine GE Fanuc VersaMax analog input module that accepts eight universal temperature sensors--RTD (Pt100/Pt1000) or thermocouple (Types J, K, T, E, N, S, R, B). With 16-bit resolution, automatic cold-junction compensation and ±0.1 % accuracy, it delivers precise temperature data for process, power and marine control systems.
Key Features & Benefits
  • 100 % OEM GE Fanuc - serialized & factory-sealed
  • 8 universal RTD/TC inputs (software-selectable)
  • 16-bit resolution (0.0015 %) & ±0.1 % accuracy
  • Auto cold-junction compensation for all TC types
  • Sensor break, short-circuit & over-range diagnostics
  • 250 ms scan time (50-500 ms configurable)
  • Hot-swappable on VersaMax rack - no CPU restart
  • -40 °C … +70 °C operating, conformal-coated
  • CE, UL 508, SIL 2 (IEC 61508), ATEX, IECEx certified
Technical Specifications
Parameter Value
Model IC200ALG266
Series GE Fanuc VersaMax
Channels 8 universal RTD/TC
RTD Types Pt100, Pt1000, Cu50, Ni120
TC Types J, K, T, E, N, S, R, B
Resolution 16-bit (0.0015 %)
Accuracy ±0.1 % FS @ 25 °C
CJ Compensation ±0.5 °C auto
Scan Time 250 ms (50-500 ms)
Isolation 500 V channel-to-bus
Power 5 VDC @ 120 mA (backplane)
Operating Temp -40 °C … +70 °C
Humidity 5 % … 95 % RH non-condensing
Mounting VersaMax rack, 1 slot
Approvals SIL 2, CE, UL 508, ATEX Zone 2, IECEx
Typical Applications
  • Steam & gas turbine bearing temperature
  • Chemical reactor vessel RTDs
  • Marine engine exhaust & jacket water
  • HVAC & chiller temperature loops
  • SIL 2 safety-critical temperature control
What's in the Box
  • 1× IC200ALG266 module
  • 1× Removable 36-pin spring-clamp terminal block
  • Factory calibration certificate & traceability label
  • Quick-start guide & ESD wrist strap
Installation & Setup
  1. Insert module into any VersaMax rack slot.
  2. Connect sensor wiring to terminal block.
  3. Power on--green READY LED < 5 s.
  4. Configure sensor types & alarms via Proficy Machine Edition.
  5. Perform sensor loop test & SIL proof-test.
