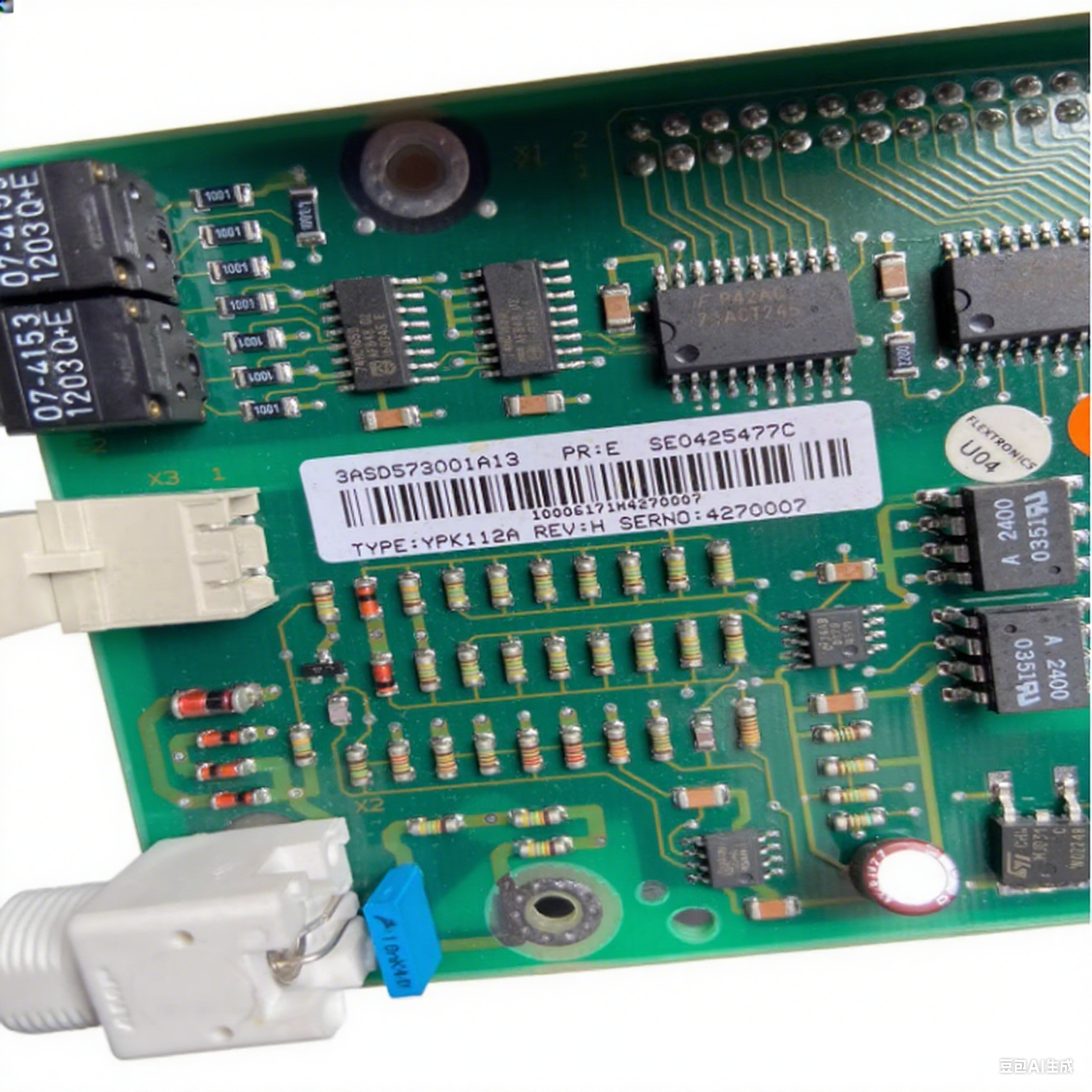

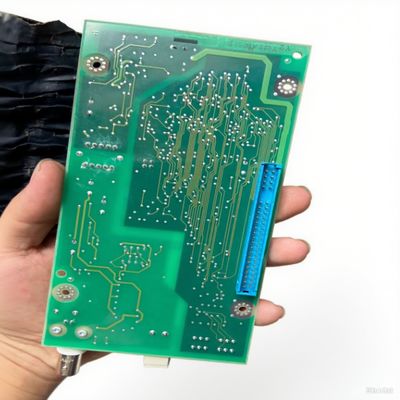

YPK112A (3ASD573001A13) ABB 12.1-Inch Industrial Touch HMI Panel

YPK112A (3ASD573001A13) ABB 12.1-Inch Industrial Touch HMI Panel

  • YPK112A (3ASD573001A13) ABB 12.1-Inch Industrial Touch HMI Panel
  • YPK112A (3ASD573001A13) ABB 12.1-Inch Industrial Touch HMI Panel
YPK112A (3ASD573001A13) ABB 12.1-Inch Industrial Touch HMI Panel
Product Details:
Place of Origin: Finland
Brand Name: ABB
Certification: COC
Model Number: YPK112A
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $200-300
Packaging Details: original
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10 pieces one day
Contact Now
Detailed Product Description
Type: Module Shipping By: DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time: In Stock Product Type: Module
Payment: T/T Trading Term: EXW
Highlight:

ABB 12.1-inch industrial HMI panel

,

ABB touch panel with warranty

,

industrial touch HMI module

YPK112A (3ASD573001A13) ABB 12.1-Inch Industrial Touch HMI Panel
Product Description
The YPK112A is a genuine ABB 12.1-inch WXGA color operator panel with projected-capacitive multi-touch. Designed for AC 500, AC 800M and legacy Advant systems, it delivers wide 12-24 VDC supply, dual Ethernet, and rugged IP65 front for demanding machines and process control.
Key Features & Benefits
  • 100% OEM ABB - serialized & factory-sealed
  • 12.1" WXGA (1280 × 800) TFT color display
  • Projected-capacitive 10-point multi-touch
  • IP65 front, IP20 rear enclosure
  • -20°C to +60°C operating range
  • 2× Gigabit Ethernet + 1× RS-232/RS-485
  • USB 3.0 host & micro-SD slot for logs/recipes
  • 12-24 VDC ±20%, < 9 W consumption
  • CE, UL 508, ATEX Zone 2, IECEx certified
Technical Specifications
Parameter Value
Model YPK112A
Order Code 3ASD573001A13
Display 12.1" WXGA, 1280 × 800, 262k colors
Touch PCAP 10-point
Backlight LED, 50,000 h MTBF
Interfaces 2× GbE, 1× RS-232/RS-485, USB 3.0
Memory 128 MB DRAM, 64 MB Flash + micro-SD
Power 12-24 VDC ±20%, 9 W max
Operating Temp -20°C to +60°C
Humidity 5% to 95% RH non-condensing
Mounting Panel-mount, 285 × 215 mm cut-out
Approvals CE, UL 508, ATEX Zone 2, IECEx
Typical Applications
  • Large machine operator stations
  • Chemical & pharmaceutical process skids
  • Marine bridge & engine-room displays
  • Power-generation HMI consoles
  • Water & wastewater SCADA
What's in the Box
  • 1× YPK112A HMI panel
  • 1× Mounting gasket & screws
  • Factory calibration certificate
  • Quick-start guide & ESD wrist strap
Installation & Setup
  1. Cut 285 × 215 mm panel opening; insert unit.
  2. Connect 12-24 VDC and Ethernet/serial cables.
  3. Power on--boot < 20 s.
  4. Configure via Automation Builder or Panel Builder.
  5. Verify touch calibration & network connectivity.
