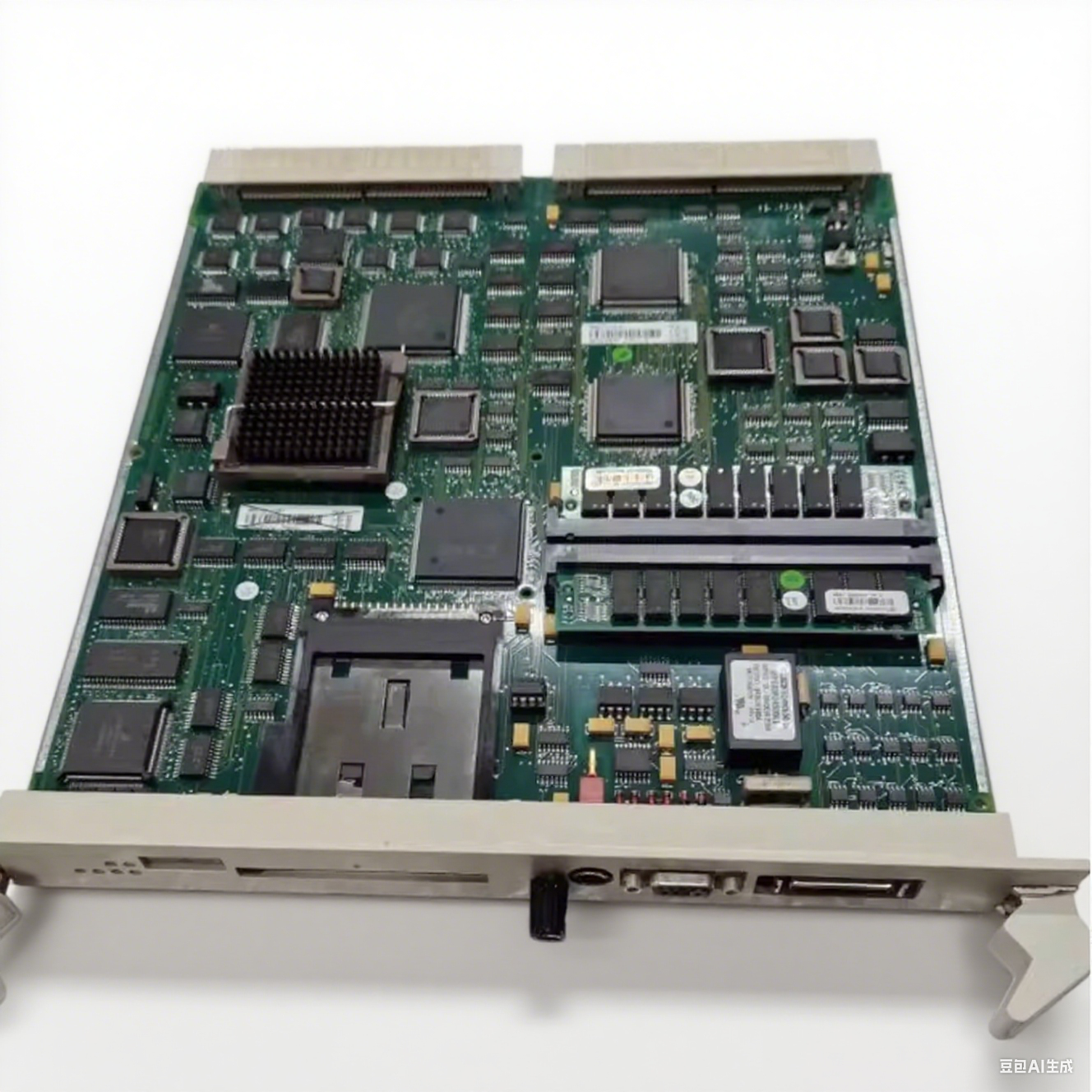

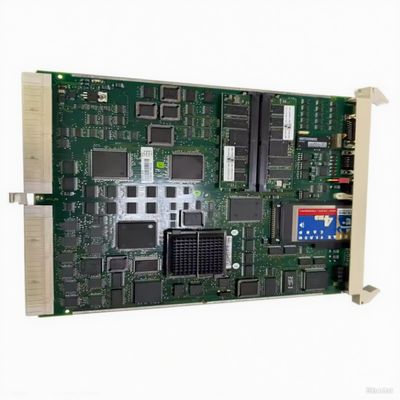

PM511V16 ABB Processor Module 200 MHz PowerPC 8 MB RAM

The PM511V16 is a genuine ABB high-performance processor module at the heart of AC 800M and Advant Controller 450 systems. With a 200 MHz PowerPC, 8 MB ECC RAM, dual Ethernet, and sub-millisecond scan times, it delivers deterministic control for process plants, power utilities, and critical infrastructure worldwide.

• 100% OEM ABB - serialized & factory-sealed
• 200 MHz PowerPC 32-bit CPU with ECC-protected 8 MB RAM
• 32 MB Flash + PCMCIA slot for 64 MB additional storage
• Dual 10/100 BASE-T Ethernet + RS-485/RS-232 ports
• < 1 ms scan-cycle capability for high-speed loops
• CPU, network & power redundancy (switchover ≤10 ms)
• -20 °C … +60 °C operating range, conformal-coated
• CE, UL 508, SIL 2/3 (IEC 61508) certified

• Power-generation turbine & generator control
• Oil & gas pipeline SCADA & ESD systems
• Chemical & pharmaceutical batch reactors
• Water & wastewater treatment plants
• Marine propulsion & offshore platforms

• 1* PM511V16 processor module
• 1* Battery for SRAM back-up
• Factory calibration certificate & traceability label
• Quick-start guide & ESD wrist strap

1. Insert module into AC 800M/Advant rack slot.
2. Connect 24 VDC supply and redundant Ethernet cables.
3. Power on--green STATUS LED < 10 s.
4. Launch ABB Control Builder M; auto-detect CPU, download project.
5. Perform redundancy switchover & SIL proof-test.
