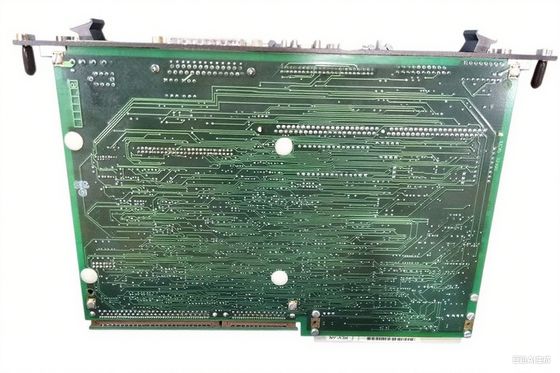

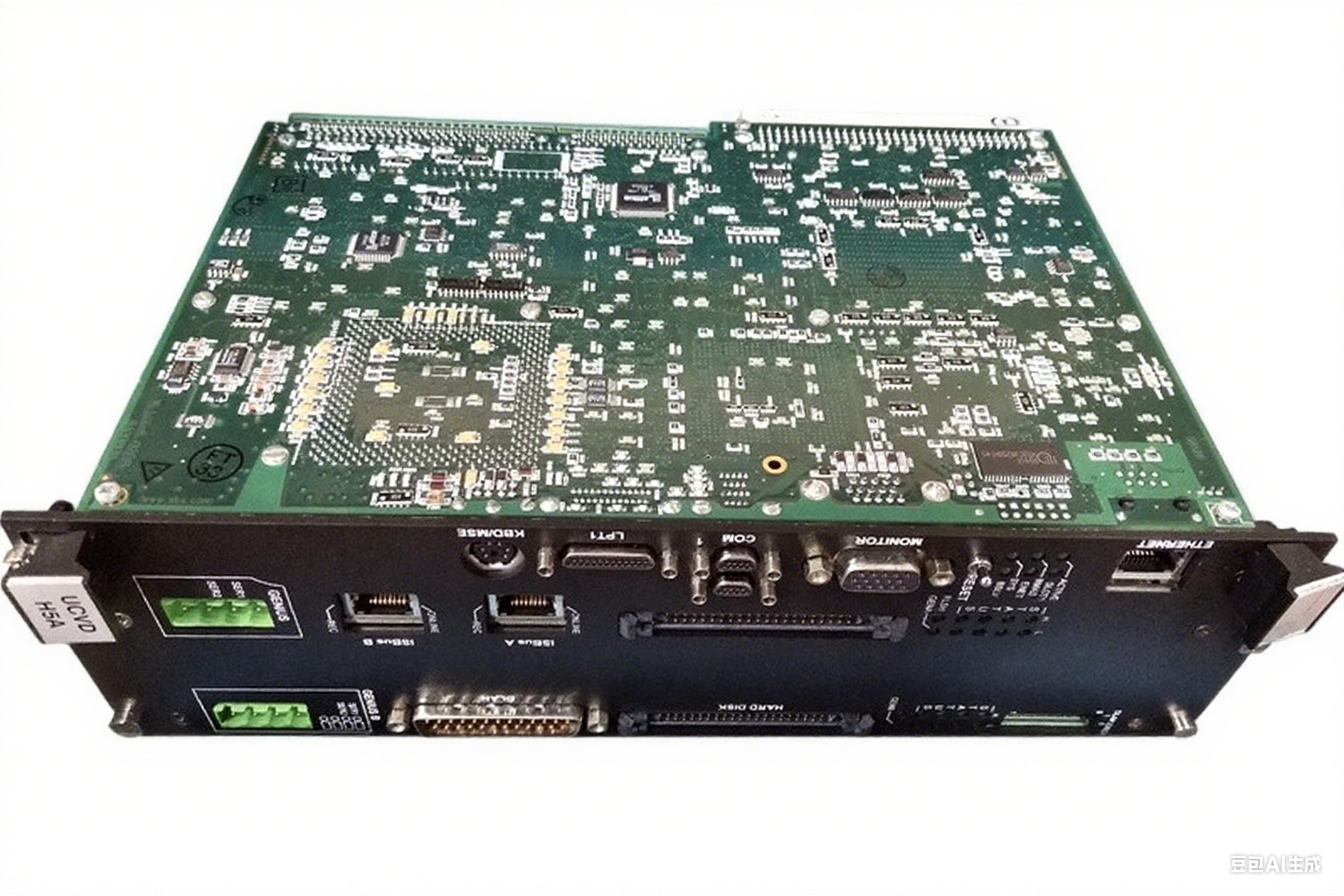

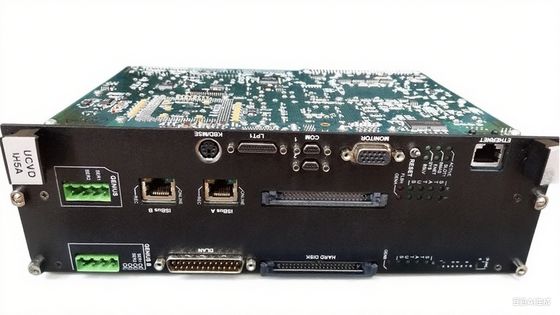

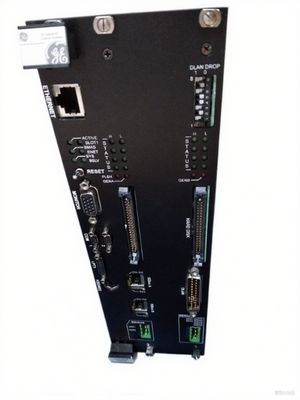

GE Fanuc IS215UCVDH5A Mark VI SPEEDTRONIC PLC Controller

GE Fanuc IS215UCVDH5A Mark VI SPEEDTRONIC PLC Controller

  • GE Fanuc IS215UCVDH5A Mark VI SPEEDTRONIC PLC Controller
  • GE Fanuc IS215UCVDH5A Mark VI SPEEDTRONIC PLC Controller
  • GE Fanuc IS215UCVDH5A Mark VI SPEEDTRONIC PLC Controller
  • GE Fanuc IS215UCVDH5A Mark VI SPEEDTRONIC PLC Controller
GE Fanuc IS215UCVDH5A Mark VI SPEEDTRONIC PLC Controller
Product Details:
Place of Origin: USA
Brand Name: General Electric
Certification: CE
Model Number: IS215UCVDH5A
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $10-3000
Packaging Details: original
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10 pieces one day
Contact Now
Detailed Product Description
Type: Module Shipping By: DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time: In Stock Product Type: Module
Payment: T/T Trading Term: EXW
Highlight:

GE Fanuc Mark VI PLC controller

,

IS215UCVDH5A SPEEDTRONIC controller

,

GE Fanuc PLC with warranty

GE Fanuc IS215UCVDH5A Controller
Product Description
The IS215UCVDH5A is a factory-tested VME-based controller from GE’s Mark VI SPEEDTRONIC™ family, engineered for precise gas- and steam-turbine control, protection, and sequencing. Drop-in replacement for legacy IS215UCV* cards—guaranteed 100 % authentic, firmware unaltered, ready for immediate field deployment.

Key Features & Benefits
• OEM Genuine GE Fanuc part – serialized & sealed ESD bag
• VME64x-compliant 6U single-slot card
• 64-bit RISC processor, 256 MB DDR ECC RAM
• Dual 10/100 Ethernet ports for HMI & ToolboxST™ connectivity
• On-board flash (512 MB) for application & historical data logging
• Redundant power feeds (5 V / 3.3 V) with hot-swap support
• –40 °C … +70 °C operating range (conformal coated)
• SIL 2 capable per IEC 61508 for safety-critical loops
• Compatible with Mark VI Simplex & TMR (Triple Modular Redundant) racks
Technical Specifications
Parameter Value
Part Number IS215UCVDH5A
Series Mark VI SPEEDTRONIC
Form Factor 6U VME64x, single-slot
Processor 64-bit PowerPC @ 333 MHz
Memory 256 MB DDR ECC, 512 MB Flash
Communication 2* 10/100 Base-TX (RJ-45), 1* RS-232 (DIAG), VME P1/P2
I/O Scan Rate < 5 ms (typical)
Power +5 V @ 6 A, +3.3 V @ 3 A
Operating Temp –40 °C … +70 °C
Humidity 5 % … 95 % RH non-condensing
Shock/Vibe 15 g / 2 g per IEC 60068-2-27/-64
Approvals CE, UL, CSA, ATEX Zone 2, SIL 2
Typical Applications
• Gas & steam turbine control (Frame 5/6/7/9)
• Generator excitation & synchronization
• Compressor anti-surge & load-sharing control
• Emergency trip & protection systems (ETS)
• Retrofit upgrades for Mark V / Mark IV panels

What’s in the Box
• 1× IS215UCVDH5A controller module
• 1× Factory calibration & traceability certificate
• 1× ESD wrist strap
• Quick-install guide & slot keying chart

Installation & Setup Guide
  1. Power down the Mark VI rack; follow ESD procedures.
  2. Insert the card into the designated VME slot (refer to R, S, T rack map).
  3. Apply torque to front-panel screws (12 in-lb / 1.4 N·m).
  4. Power up and verify green STATUS LED (< 30 s).
  5. Connect ToolboxST™ via Ethernet; upload latest application file (*.m6b).
  6. Perform loop test and trip-check per OEM start-up sequence.
