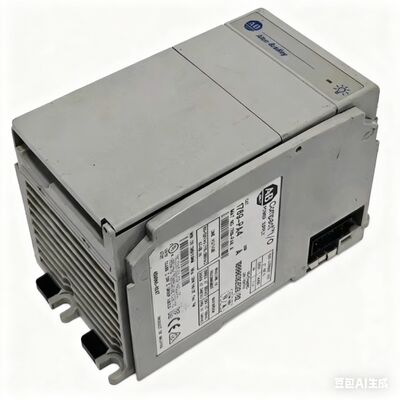

Power Module Allen Bradley 1769-PA4 CompactLogix 120/240V AC Power Supply

Power Module Allen Bradley 1769-PA4 CompactLogix 120/240V AC Power Supply

  • Power Module Allen Bradley 1769-PA4 CompactLogix 120/240V AC Power Supply
  • Power Module Allen Bradley 1769-PA4 CompactLogix 120/240V AC Power Supply
Power Module Allen Bradley 1769-PA4 CompactLogix 120/240V AC Power Supply
Product Details:
Place of Origin: USA
Brand Name: Allen Bradley
Certification: CCC, UL
Model Number: 1769-PA4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $99
Packaging Details: Brand New Original
Delivery Time: in stock / 1-3 work days
Payment Terms: T/T
Supply Ability: 999
Contact Now
Detailed Product Description
Highlight:

Allen Bradley 1769-PA4 power module

,

CompactLogix 120V AC power supply

,

Allen Bradley 240V power module

Allen Bradley 1769-PA4 CompactLogix Power Supply
120/240V AC input power supply for CompactLogix 5000 systems delivering 24V DC at up to 4A to power CPUs, I/O and communication modules.
Product Overview
The 1769-PA4 is a universal AC input power supply designed for CompactLogix 5000 systems. It provides 24V DC power to the CompactBus, eliminating the need for external 24V supplies. Ideal for packaging, material handling, water/wastewater applications, and OEM skid systems.
Key Features & Benefits
  • Universal AC input (85-264V AC, 47-63Hz) - no tap switching required
  • 4A @ 24V DC output - 96W continuous, 120W peak power (< 3 seconds)
  • 92% efficiency - reduces panel heat and meets ErP Lot 6 standby requirements
  • Active in-rush limiter - less than 30A surge protects upstream breakers
  • Built-in overload & thermal protection with auto-recovery and LED indicator
  • Quick DIN-rail mounting - 45mm width, snaps on in seconds without tools
  • Global certifications - CE, UL 508, cULus, Class I Div 2, RoHS, REACH compliant
Technical Specifications
Parameter Value
Part Number 1769-PA4
Function CompactLogix AC to 24V DC Power Supply
Input Voltage 85 - 264V AC, 47 - 63Hz
Input Current 1.3A @ 120V AC / 0.7A @ 240V AC
Output Voltage 24V DC ±1%
Output Current 4A continuous, 5A peak (< 3s)
Output Power 96W continuous, 120W peak
Hold-up Time 20ms @ full load
Efficiency 92% @ 230V AC, 50% load
Protection OVP, OCP, OTP, brown-out, surge
Cooling Natural convection, no fan
Operating Temperature 0 - +60°C (derate 2%/K > 45°C)
Storage Temperature -40 - +85°C
Humidity 95% RH non-condensing
Dimensions 45 × 118 × 87mm (W×H×D)
Weight 0.7kg
Mounting DIN-rail (35mm) or wall
Certifications CE, UL 508, cULus, Class I Div 2, RoHS
Typical Applications
  • CompactLogix L18, L24, L30, L32E, L33ER CPUs
  • Packaging line I/O banks (POINT I/O, 1769 modules)
  • Material-handling conveyor controls
  • Water-treatment SCADA racks
  • Class I Div 2 remote I/O stations
Compatible Hardware
  • CPUs: 1769-L18, -L24, -L30, -L32E, -L33ER, -L36ERM
  • I/O: 1769 Compact I/O (any combination up to 30 modules)
  • Cables: Includes keyed AC inlet (IEC C14)
  • Breakers: UL 489 6A curve C recommended
Installation & Start-up
  1. Clip onto DIN-rail - snap until latch clicks securely
  2. Wire AC input - use 0.75mm² copper wire, torque to 0.5N*m; connect earth PE
  3. Connect 24V DC - use M4 studs, torque to 1.2N*m; maintain 5mm spacing
  4. Power up - verify green "DC OK" LED; measure 24.0V at terminals
  5. Verify load - 4A continuous, 5A peak < 3s; monitor and record temperature
Why Choose Our 1769-PA4 Power Supply?
✔ Authorized Allen-Bradley distributor with traceable serial numbers
✔ Certified CompactLogix technical support with <30 min response time
✔ NET-30 credit terms for approved accounts
✔ Tier pricing discounts for orders of 3+ units
✔ Global RMA hubs with advance replacement within warranty
