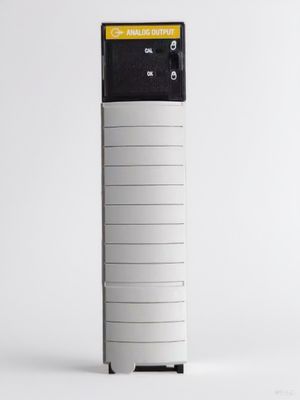

1756-OF8 Allen-Bradley ControlLogix 8-Channel 16-Bit Analog Output Module
The 1756-OF8 is an OEM Allen-Bradley ControlLogix analog output module that delivers eight individually configurable 4-20 mA or ±10 VDC channels with 16-bit resolution and ±0.1% accuracy. Ideal for precise valve, VFD, or actuator control in process and discrete automation, it supports SIL 2 applications and seamless hot-swap in any 1756 chassis.
Key Features & Benefits
  • 100% OEM Allen-Bradley—serialized & factory-sealed
  • 8 isolated analog outputs (4-20 mA or ±10 VDC per channel)
  • 16-bit resolution, ±0.1% full-scale accuracy
  • 1 ms update rate & loop diagnostics
  • Short-circuit, over-voltage & broken-wire detection
  • Hot-swappable—no chassis power-down required
  • -40°C … +70°C operating, conformal-coated
  • SIL 2 (IEC 61508), CE, UL, ATEX, IECEx certified
Technical Specifications
Parameter Value
Model 1756-OF8
Series ControlLogix
Channels 8 isolated analog outputs
Output Ranges 4-20 mA (0-21 mA), ±10 VDC (±10.5 V)
Resolution 16-bit (0.32 µA / 0.15 mV)
Accuracy ±0.1% FS @ 25°C
Update Time 1 ms per channel
Load (Current) 0-750 Ω (4-20 mA)
Load (Voltage) ≥ 1 kΩ (±10 V)
Isolation 250 V continuous channel-to-bus
Power 5 VDC @ 200 mA, 24 VDC @ 250 mA
Operating Temp -40°C … +70°C
Humidity 5% … 95% RH non-condensing
Mounting 1756 ControlLogix chassis, 1 slot
Approvals SIL 2, CE, UL 508, ATEX Zone 2, IECEx
Typical Applications
Valve & actuator positioning
VFD speed reference
Temperature loop final control
Compressor load sharing
SIL 2 safety loops
What's in the Box
  • 1× 1756-OF8 module
  • 1× Removable 36-pin spring-clamp RTB
  • Factory calibration certificate & traceability label
  • Quick-start guide & ESD wrist strap
Installation & Setup
  1. Insert module into any 1756 chassis slot.
  2. Connect 24 VDC and field wiring to RTB.
  3. Power on—green OK LED < 5 s.
  4. Configure channels in Studio 5000 Logix Designer.
  5. Perform loop test & SIL proof-test.
