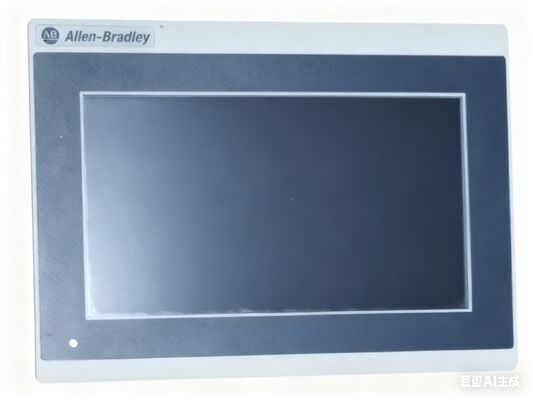

2711R-T7T TFT Touch Screen Allen Bradley PLC PanelView Plus 7 Standard 7" Touch HMI

2711R-T7T TFT Touch Screen Allen Bradley PLC PanelView Plus 7 Standard 7" Touch HMI

  • 2711R-T7T  TFT Touch Screen Allen Bradley PLC PanelView Plus 7 Standard 7" Touch HMI
  • 2711R-T7T  TFT Touch Screen Allen Bradley PLC PanelView Plus 7 Standard 7" Touch HMI
2711R-T7T  TFT Touch Screen Allen Bradley PLC PanelView Plus 7 Standard 7" Touch HMI
Product Details:
Place of Origin: USA
Brand Name: Allen Bradley
Certification: CCC, UL
Model Number: 2711R-T7T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $599
Packaging Details: Brand New Original
Delivery Time: in stock / 1-3 work days
Payment Terms: T/T
Supply Ability: 999
Contact Now
Detailed Product Description

1. Product Snapshot

2711R-T7T is a 7-inch touch operator terminal for the PanelView Plus 7 Standard family.
It runs FactoryTalk View Machine Edition (ME) on a Linux-based platform, giving operators instant access to Allen-Bradley drives, CompactLogix and ControlLogix systems via Ethernet.
Dual Ethernet ports, USB-A/USB-B and SD card slot make it the default HMI for packaging, material handling, water/waste-water and OEM skids.

2. Key Features & Benefits

  • 7" color display – 800 × 480 WVGA, LED back-light, 400 nits
  • Resistive touch – works with gloves, water, dust; 1 million touches
  • Dual Ethernet – 10/100 Mbps, supports device-level ring (DLR) redundancy
  • FactoryTalk View ME – pre-installed, 512 screens, trending, alarms, recipes
  • On-board I/O – 2 USB-A, 1 USB-B, SD card, audio out
  • Wide temperature – 0…+55 °C operating, –25…+70 °C storage
  • Global approvals – CE, UL 508, cULus, Class I Div 2, RoHS, REACH

3. Technical Specifications

Parameter Value
Part Number 2711R-T7T
Series PanelView Plus 7 Standard
Display 7" TFT color, 800 × 480, LED back-light
Brightness 400 nits
Touch Resistive, 1 million touches
Network 2 × 10/100 Ethernet (DLR capable)
USB 2 × USB-A host, 1 × USB-B device
Storage SDHC card slot (max 32 GB)
Audio 3.5 mm stereo out
Processor ARM Cortex-A8 600 MHz
Memory 512 MB DDR3, 512 MB Flash
OS Linux with FactoryTalk View ME 11.0
Development FactoryTalk View Studio ME (≥ v11)
Supply 24 VDC ±20 %, 15 W max
Isolation 1 500 V RMS comm-to-logic
Operating Temp 0 – 55 °C
Storage Temp –25 – +70 °C
Humidity 95 % RH non-condensing
Front Protection IP65 / NEMA 4X (indoor)
Rear Protection IP20
Dimensions 200 × 146 × 55 mm (W×H×D)
Weight 0.9 kg
Certifications CE, UL 508, cULus, Class I Div 2, RoHS

4. Typical Applications

  • CompactLogix / ControlLogix operator interface
  • ACS880 drive parameter setting & trending
  • Packaging line fault diagnostics
  • Water-treatment SCADA node
  • OEM skid-mounted control

5. Compatible Hardware

  • Controllers: CompactLogix 5380, 5480, ControlLogix 5580, Micro 870
  • Drives: ACS880, PowerFlex 527/755, Kinetix 5700
  • Software: FactoryTalk View Studio ME v11+, Studio 5000 v32+
  • Cables: 2711R-RL1C2 (Ethernet), 2711R-RT7C (USB)

6. Installation & Start-up

  1. Cut panel hole – 192 × 138 mm (W×H); torque clamps 0.8 N·m.
  2. Connect 24 V – observe polarity; green “PWR” LED lights.
  3. Plug Ethernet – port-1 to controller, port-2 to plant; auto-MDIX.
  4. Create runtime – FactoryTalk View Studio ME v11; drag PLC tags.
  5. Download project – 60 s via Ethernet or USB; set IP, subnet, gateway.
  6. Test screen – navigate to drive control, start motor, view trend.
  7.
