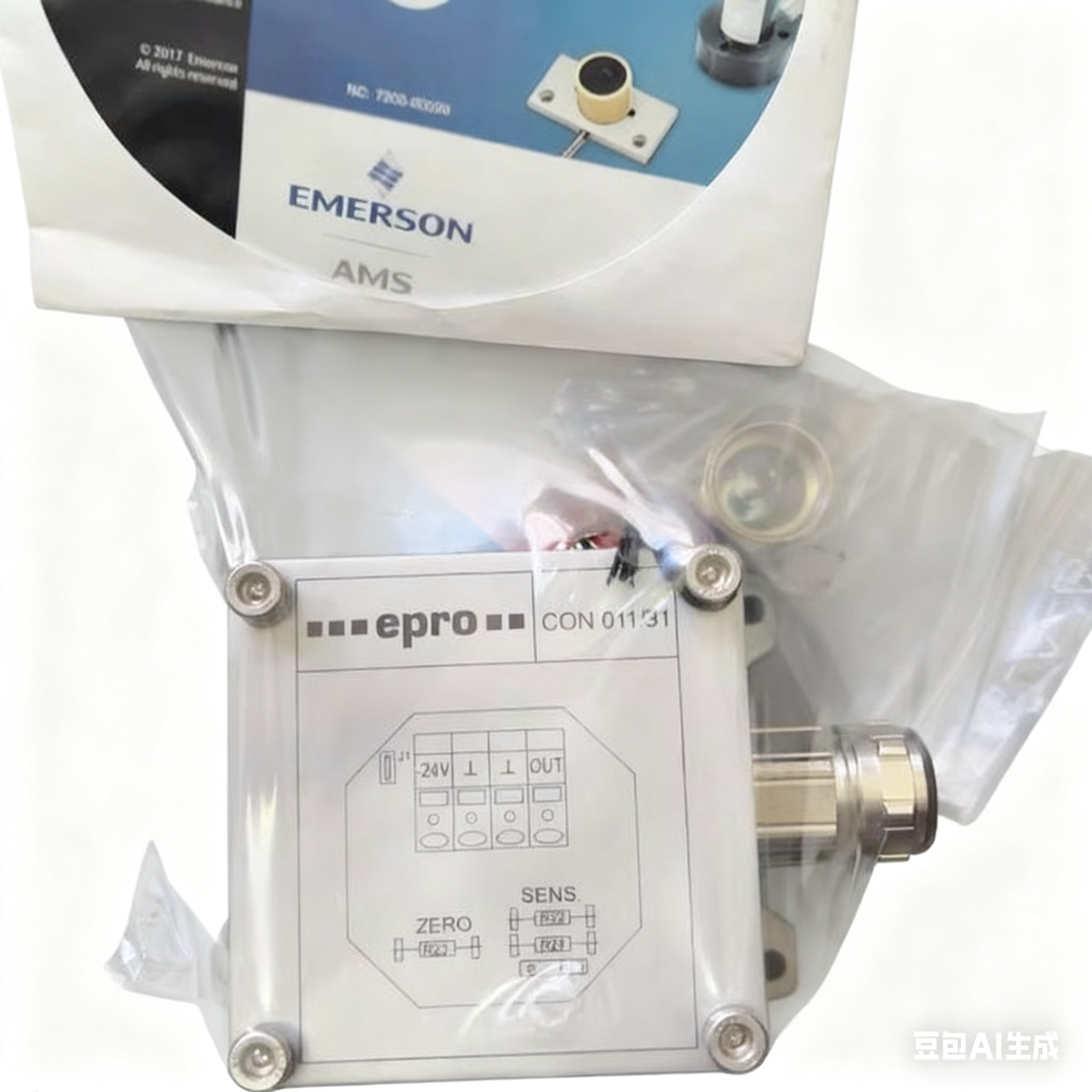

Name: Standard Signal Conditioner CON011 Emerson EPRO For Proximity Probes
Brand: Xiamen IntelliLink Global Electronic Products Co., Ltd
SKU: CON011
Price: 299 USD
Availability: InStock

Home Products Emerson EPRO

Standard Signal Conditioner CON011 Emerson EPRO For Proximity Probes

Product Details:

Place of Origin:	Germany
Brand Name:	Emerson EPRO
Certification:	COC
Model Number:	CON011

Payment & Shipping Terms:

Price:	$299
Payment Terms:	T/T

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	CON011 Emerson EPRO , Proximity Probes Emerson EPRO , CON011 Signal Conditioner

CON011 Emerson EPRO Standard Signal Conditioner for Proximity Probes

Product Description

The CON011 is a genuine EPRO (Emerson) signal conditioner designed for PR642x series 5 mm and 8 mm proximity probes. It provides a linear 4-20 mA output proportional to shaft vibration or position, plus a buffered raw signal for analysis, meeting API 670 and SIL 2 requirements for critical rotating machinery.

Key Features & Benefits

100 % OEM EPRO - serialized & factory-sealed
Compatible with PR6423 (5 mm) and PR6424 (8 mm) probes
Linear 4-20 mA output (loop-powered, isolated)
Buffered raw output (BNC) for portable analyzers
-4 V to -20 V probe drive (standard)
Automatic cable length compensation
Sensor break & short-circuit detection
DIN-rail or 19-inch rack mounting
-40 °C … +70 °C operating, conformal-coated
SIL 2 (IEC 61508), CE, UL, ATEX, IECEx certified

Technical Specifications

Parameter	Value
Model	CON011
Manufacturer	EPRO (Emerson)
Function	Proximity probe signal conditioner
Compatible Probes	PR6423, PR6424, PR6425
Probe Drive	-4 V to -20 V, 20 kHz
Input Range	0-2 mm (5 mm probe) / 0-4 mm (8 mm probe)
Sensitivity	8 mV/µm (typical, field adjustable)
Output	4-20 mA (2-wire loop) & buffered raw (BNC)
Accuracy	±1 % of full scale
Loop Supply	12-35 VDC (loop-powered)
Isolation	500 V input-to-output
Operating Temp	-40 °C … +70 °C
Humidity	5 % … 95 % RH non-condensing
Mounting	DIN-rail (35 mm) or 19-inch rack
Approvals	SIL 2, CE, UL, ATEX Zone 2, IECEx

Typical Applications

Steam & gas turbine shaft vibration
Compressor axial/radial position
Motor and pump bearing wear
API 670 compliant machinery protection
SIL 2 safety-critical loops

What's in the Box

1* CON011 signal conditioner
1* DIN-rail clip & screws
Factory calibration certificate & traceability label
Quick-start guide & ESD wrist strap

Installation & Setup

Clip onto DIN-rail or insert into 19-inch rack.
Connect probe cable (coax) and 4-20 mA loop.
Power loop--green LED active.
Calibrate gap voltage per API 670 (typically -8 V).
Verify 4-20 mA span and alarm set-points.
