Name: Dual Channel Emerson EPRO Safety MMS 6310 Temperature Monitor Easy Installation
Brand: Xiamen IntelliLink Global Electronic Products Co., Ltd
SKU: MMS 6310
Price: 999 USD
Availability: InStock

Home Products Emerson EPRO

Dual Channel Emerson EPRO Safety MMS 6310 Temperature Monitor Easy Installation

Product Details:

Place of Origin:	Germany
Brand Name:	Emerson EPRO
Certification:	COC
Model Number:	MMS 6310

Payment & Shipping Terms:

Price:	$999
Payment Terms:	T/T

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	Safety Emerson EPRO , Dual Channel Emerson EPRO , Dual Channel MMS 6310 Temperature Monitor

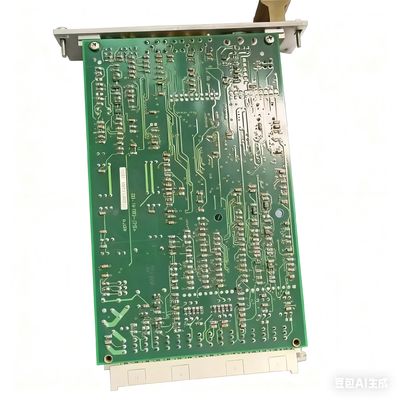

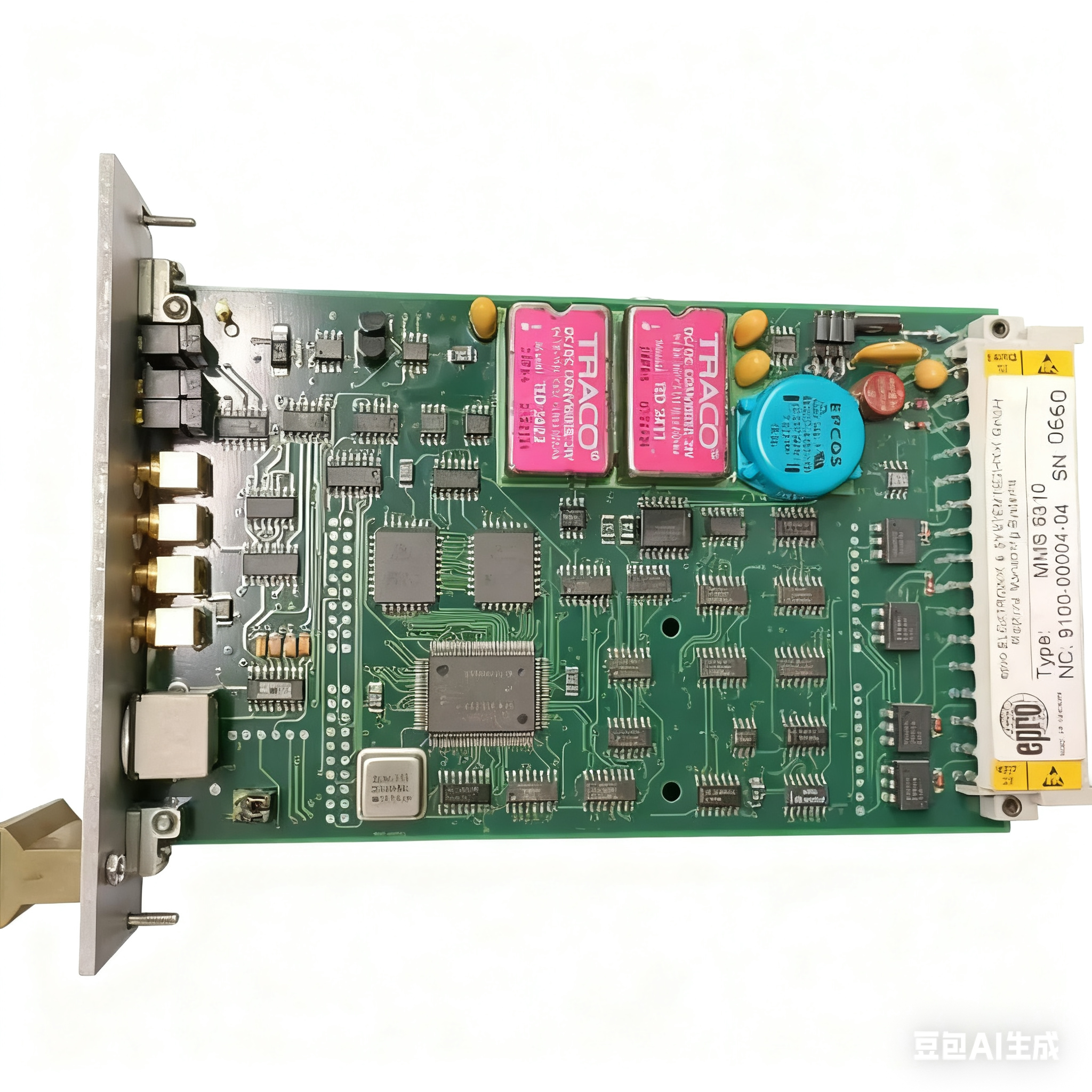

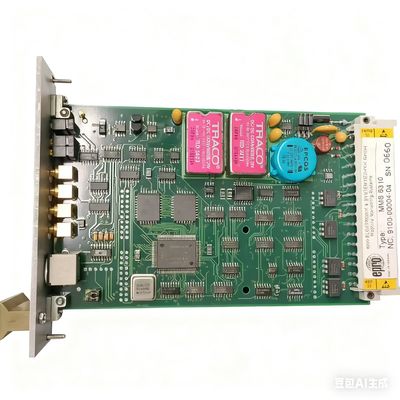

Emerson EPRO MMS 6310 Dual-Channel Temperature Monitor

Product Description

The MMS 6310 is a genuine Emerson EPRO dual-channel temperature monitor for critical rotating machinery. It accepts RTD (Pt100/Pt1000) or thermocouple (J, K, T, E, N, S, R, B) inputs, delivers 4-20 mA outputs, relay alarms and buffered raw signals, meeting SIL 2 requirements for turbines, compressors and motors.

Key Features & Benefits

100% OEM Emerson - serialized & factory-sealed
2 universal RTD/TC channels (software-selectable)
Auto cold-junction compensation for all TC types
4-20 mA output per channel (3-wire, isolated)
2 relay outputs (SPDT, configurable alarm/danger)
Buffered raw outputs (BNC) for portable analyzers
16-bit ADC, 0.1 °C resolution, ±0.1% accuracy
Front-panel OLED display & LED status
Hot-swap in 19-inch rack - no shutdown
-40 °C … +70 °C operating, conformal-coated
SIL 2 (IEC 61508), CE, UL, ATEX, IECEx certified

Technical Specifications

Parameter	Value
Model	MMS 6310
Manufacturer	Emerson EPRO
Channels	2 temperature (RTD/TC)
RTD Types	Pt100, Pt1000, Cu50, Ni120
TC Types	J, K, T, E, N, S, R, B
Resolution	16-bit (0.1 °C)
Accuracy	±0.1% FS @ 25 °C
CJ Compensation	±0.5 °C auto
Outputs	4-20 mA, relay, buffered BNC
Relay Rating	250 VAC / 30 VDC, 5 A
Power	24 VDC ±20%, 8 W max
Operating Temp	-40 °C … +70 °C
Humidity	5% … 95% RH non-condensing
Mounting	19-inch rack, 6 HP (1 slot)
Approvals	SIL 2, CE, UL, ATEX Zone 2, IECEx

Typical Applications

Steam & gas turbine bearing temperature
Chemical reactor vessel RTDs
Marine engine exhaust & jacket water
HVAC & chiller temperature loops
SIL 2 safety-critical temperature control

What's in the Box

1* MMS 6310 monitor
1* Removable 24-pin terminal block
Factory calibration certificate & traceability label
Quick-start guide & ESD wrist strap

Installation & Setup

Insert module into 19-inch rack.
Connect 24 VDC supply and sensor wiring.
Power on--OLED displays channel data.
Configure sensor type & alarm set-points via front panel or software.
Perform loop test & SIL proof-test.
