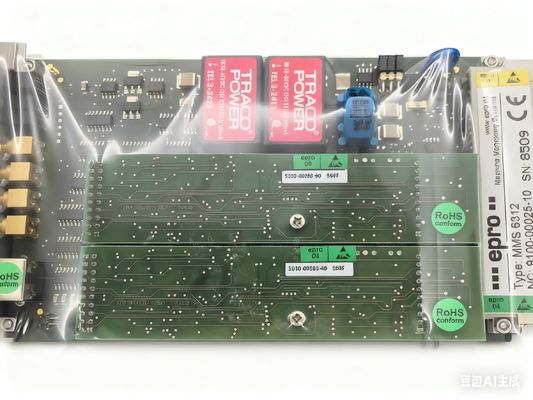

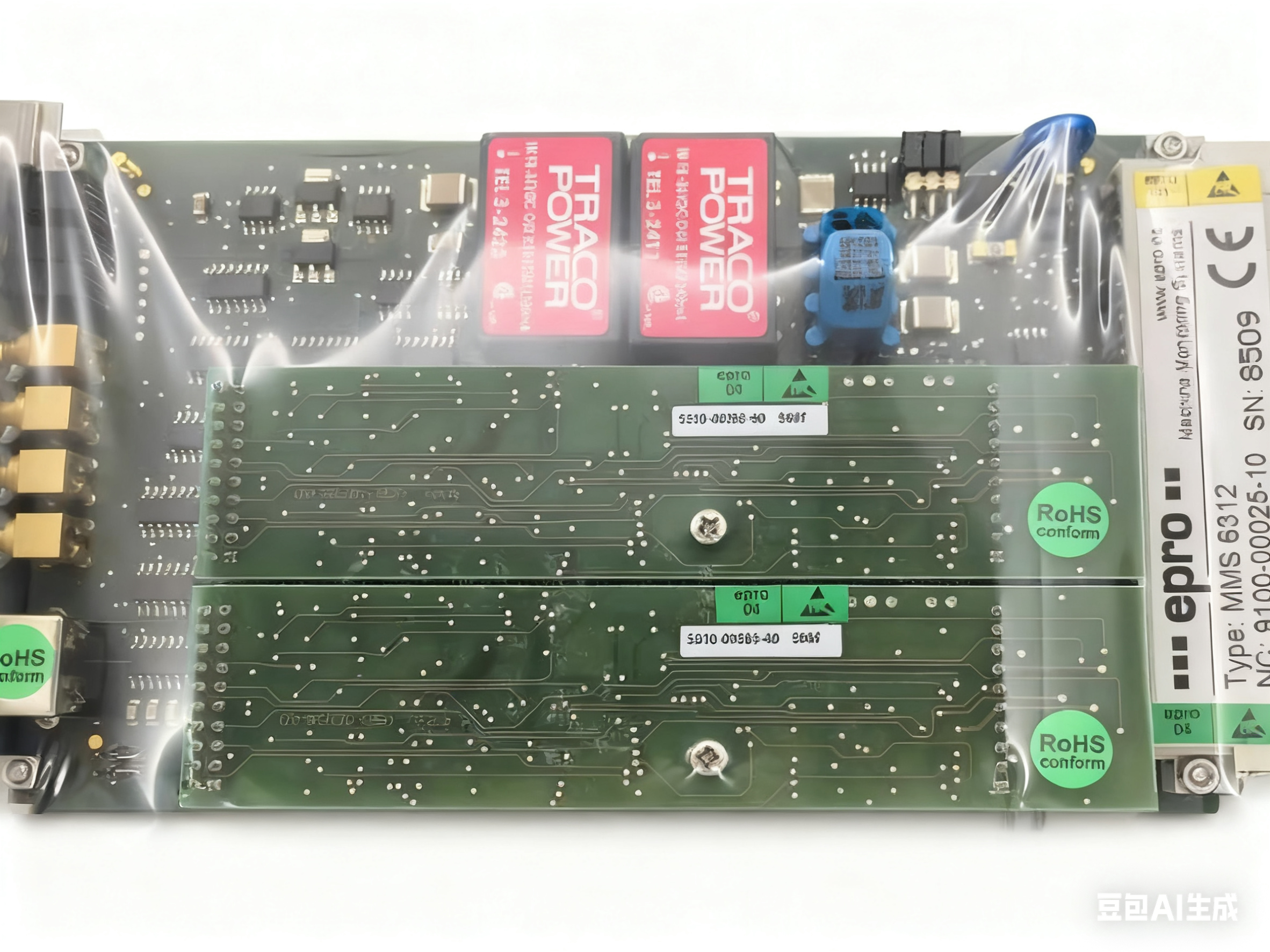

250V AC 5A MMS 6312 Emerson EPRO Dual Channel Temperature Monitor 20mA Outputs

250V AC 5A MMS 6312 Emerson EPRO Dual Channel Temperature Monitor 20mA Outputs

  • 250V AC 5A MMS 6312 Emerson EPRO Dual Channel Temperature Monitor 20mA Outputs
250V AC 5A MMS 6312 Emerson EPRO Dual Channel Temperature Monitor 20mA Outputs
Product Details:
Place of Origin: Germany
Brand Name: Emerson EPRO
Certification: COC
Model Number: MMS 6312
Payment & Shipping Terms:
Price: $999
Payment Terms: T/T
Contact Now
Detailed Product Description
Type: Module Shipping By: DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time: In Stock Product Type: Module
Payment: T/T Trading Term: EXW
Highlight:

250V AC MMS 6312 Emerson EPRO

,

20mA Outputs MMS 6312 Emerson EPRO

,

5A Dual Channel Temperature Monitor

MMS 6312 Emerson EPRO Dual-Channel Temperature Monitor
Product Description
The MMS 6312 is a genuine Emerson EPRO dual-channel universal temperature monitor that accepts RTD, thermocouple and millivolt inputs. It delivers isolated 4-20 mA outputs, configurable relays and SIL 2 fault tolerance for critical temperature loops in turbines, compressors and process vessels.
Key Features & Benefits
  • 100% OEM Emerson - serialized & factory-sealed
  • 2 universal inputs: RTD, TC, ±80 mV
  • Auto CJC for all thermocouple types
  • 16-bit ADC, 0.1 °C resolution, ±0.1% accuracy
  • 2 isolated 4-20 mA outputs (3-wire)
  • 2 SPDT relays (alarm/danger) & BNC raw
  • 250 ms scan, 50-500 ms configurable
  • Front OLED display & LED status
  • Hot-swap in 19-inch rack - no shutdown
  • -40 °C … +70 °C operating, conformal-coated
  • SIL 2 (IEC 61508), CE, UL, ATEX, IECEx certified
Technical Specifications
Parameter Value
Model MMS 6312
Manufacturer Emerson EPRO
Channels 2 universal (RTD/TC/mV)
RTD Types Pt100, Pt1000, Cu50, Ni120
TC Types J, K, T, E, N, S, R, B
mV Range ±80 mV
Resolution 16-bit (0.1 °C)
Accuracy ±0.1% FS @ 25 °C
CJ Compensation ±0.5 °C auto
Outputs 2* 4-20 mA, relays, BNC
Relay Rating 250 VAC / 30 VDC, 5 A
Power 24 VDC ±20%, 8 W max
Operating Temp -40 °C … +70 °C
Humidity 5% … 95% RH non-condensing
Mounting 19-inch rack, 6 HP (1 slot)
Approvals SIL 2, CE, UL, ATEX Zone 2, IECEx
Typical Applications
  • Steam & gas turbine bearing RTDs
  • Chemical reactor vessel TCs
  • Marine engine exhaust & jacket water
  • Furnace & heater temperature loops
  • SIL 2 safety-critical temperature control
What's in the Box
  • 1* MMS 6312 monitor
  • 1* Removable 24-pin terminal block
  • Factory calibration certificate & traceability label
  • Quick-start guide & ESD wrist strap
Installation & Setup
  1. Insert module into 19-inch rack.
  2. Connect 24 VDC supply and sensor wiring.
  3. Power on--OLED displays channel data.
  4. Configure input type & alarms via front panel or software.
  5. Perform loop test & SIL proof-test.
