10 KHz Frequency CON 041 Emerson EPRO Dual Channel Signal Conditioner Easy Setup

Product Details:

Place of Origin:	Germany
Brand Name:	Emerson EPRO
Certification:	COC
Model Number:	CON 041

Payment & Shipping Terms:

Price:	$499
Payment Terms:	T/T

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	10 KHz CON 041 Emerson EPRO , Easy Setup CON 041 Emerson EPRO , 10KHz Dual Channel Signal Conditioner

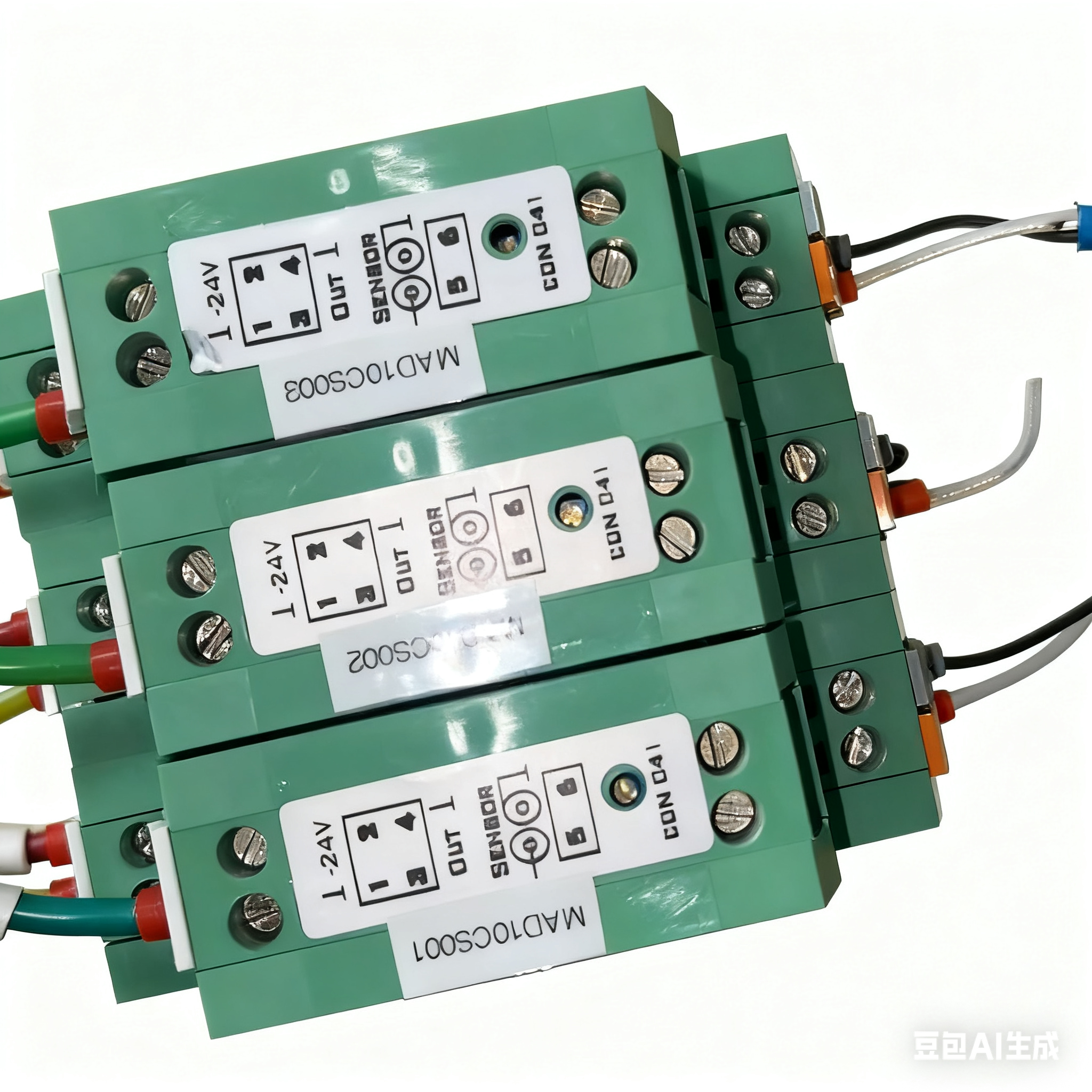

CON 041 Emerson EPRO Dual-Channel Signal Conditioner

The CON 041 is a genuine Emerson EPRO dual-channel universal signal conditioner that accepts proximity, velocity or acceleration inputs. It delivers isolated 4-20 mA outputs, relay alarms and buffered raw signals, making it ideal for vibration and position monitoring on turbines, compressors and motors.

Key Features & Benefits

100 % OEM Emerson - serialized & factory-sealed
2 universal channels: proximity, velocity, acceleration
Accepts PR642x, piezo, velocity coil sensors
4-20 mA output per channel (3-wire, isolated)
2 SPDT relays (alarm/danger) & BNC raw outputs
16-bit ADC, 0.1 % accuracy, 10 Hz-10 kHz bandwidth
Front OLED display & LED status
Hot-swap in 19-inch rack - no shutdown
-40 °C … +70 °C operating, conformal-coated
SIL 2 (IEC 61508), CE, UL, ATEX, IECEx certified

Technical Specifications

Parameter	Value
Model	CON 041
Manufacturer	Emerson EPRO
Channels	2 universal (prox/vel/acc)
Input Types	PR642x, piezo, velocity coil
Input Range	±25 V, ±50 g, 0-25 mm/s
Frequency	10 Hz - 10 kHz
Resolution	16-bit (0.0015 %)
Accuracy	±0.1 % FS @ 25 °C
Outputs	2* 4-20 mA, relays, BNC
Relay Rating	250 VAC / 30 VDC, 5 A
Power	24 VDC ±20 %, 8 W max
Operating Temp	-40 °C … +70 °C
Humidity	5 % … 95 % RH non-condensing
Mounting	19-inch rack, 6 HP (1 slot)
Approvals	SIL 2, CE, UL, ATEX Zone 2, IECEx

Typical Applications

Steam & gas turbine vibration protection
Compressor axial/radial position monitoring
Motor and pump bearing temperature-vibration combo
API 670 compliant machinery protection
SIL 2 safety-critical loops

What's in the Box

1* CON 041 signal conditioner
1* Removable 24-pin terminal block
Factory calibration certificate & traceability label
Quick-start guide & ESD wrist strap

Installation & Setup

Insert module into 19-inch rack.
Connect 24 VDC supply and sensor wiring.
Power on--OLED displays channel data.
Configure input type & alarm set-points via front panel or software.
Perform loop test & SIL proof-test.
