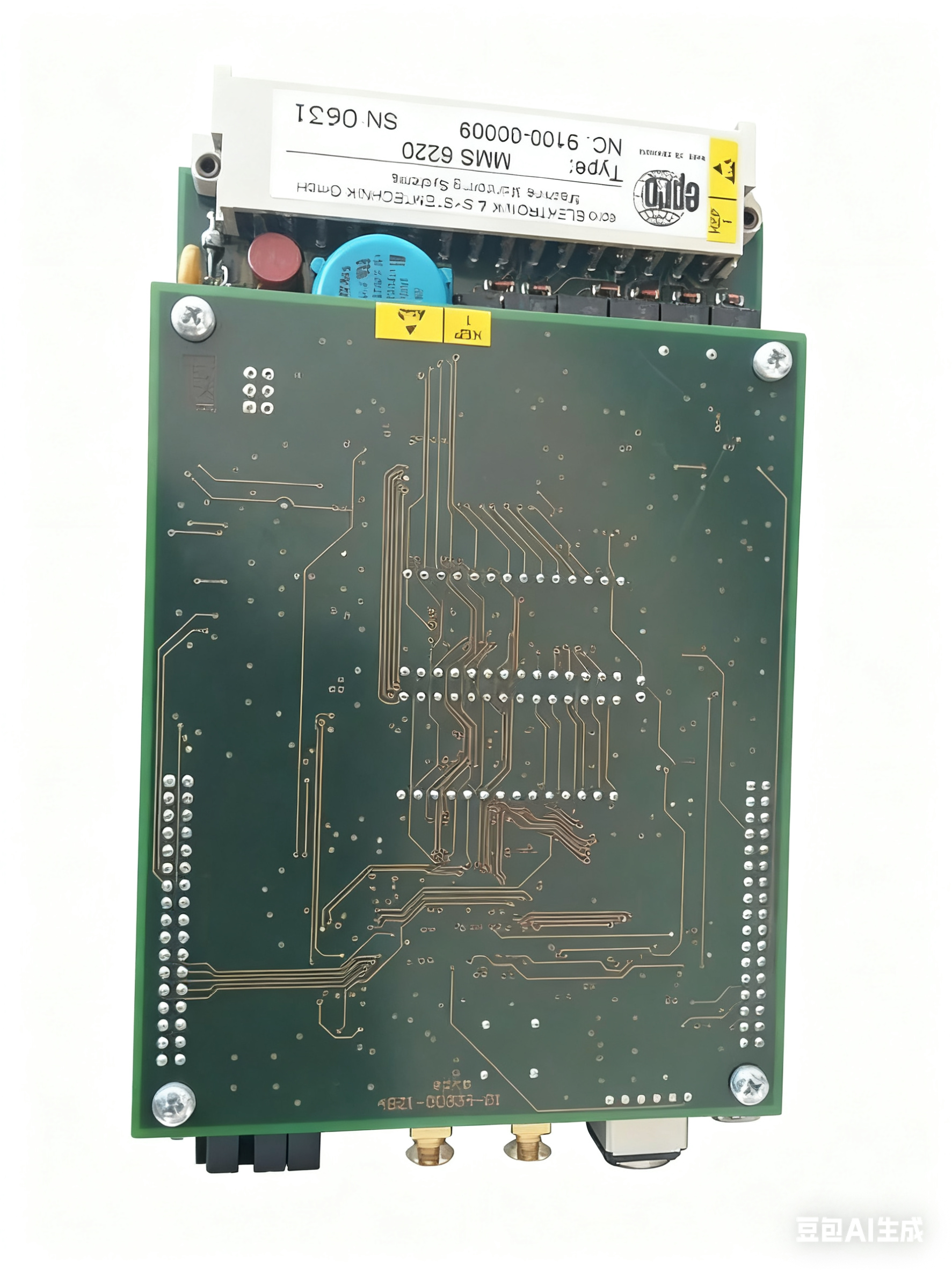

Dual Channel Emerson EPRO MMS 6220 Vibration Monitor For Critical Rotating Machinery

Dual Channel Emerson EPRO MMS 6220 Vibration Monitor For Critical Rotating Machinery

  • Dual Channel Emerson EPRO MMS 6220 Vibration Monitor For Critical Rotating Machinery
Dual Channel Emerson EPRO MMS 6220 Vibration Monitor For Critical Rotating Machinery
Product Details:
Place of Origin: Germany
Brand Name: Emerson EPRO
Certification: COC
Model Number: MMS 6220
Payment & Shipping Terms:
Price: $299
Payment Terms: T/T
Contact Now
Detailed Product Description
Type: Module Shipping By: DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time: In Stock Product Type: Module
Payment: T/T Trading Term: EXW
Highlight:

MMS 6220 Emerson EPRO

,

Critical Rotating Machinery Emerson EPRO

,

MMS 6220 Vibration Monitor

Emerson EPRO MMS 6220 Dual-Channel Vibration Monitor
Product Description
The MMS 6220 is a genuine Emerson EPRO dual-channel vibration monitor engineered for critical rotating machinery. It accepts inputs from proximity probes or velocity sensors, provides 4-20 mA outputs, relay alarms and buffered raw signals, meeting API 670 and SIL 2 requirements for turbines, compressors and motors.
Key Features & Benefits
  • 100 % OEM Emerson - serialized & factory-sealed
  • 2 independent dynamic channels (vibration or position)
  • Accepts PR642x/CON 0x1 sensors or velocity pickups
  • 4-20 mA output per channel (3-wire, isolated)
  • 2 relay outputs (SPDT, configurable alarm/danger)
  • Buffered raw outputs (BNC) for portable analyzers
  • 16-bit ADC, 0.1 % accuracy, 10-1 kHz bandwidth
  • Front-panel OLED display & LED status
  • Hot-swap in 19-inch rack - no shutdown
  • -40 °C … +70 °C operating, conformal-coated
  • SIL 2 (IEC 61508), CE, UL, ATEX, IECEx certified
Technical Specifications
Parameter Value
Model MMS 6220
Manufacturer Emerson EPRO
Channels 2 dynamic (vibration/position)
Input Types Proximity probe, velocity, accelerometer
Input Range ±25 V, ±50 g, 0-25 mm/s
Frequency 10 Hz - 1 kHz (configurable)
Resolution 16-bit (0.0015 %)
Accuracy ±0.1 % FS @ 25 °C
Outputs 4-20 mA, relay, buffered BNC
Relay Rating 250 VAC / 30 VDC, 5 A
Power 24 VDC ±20 %, 10 W max
Operating Temp -40 °C … +70 °C
Humidity 5 % … 95 % RH non-condensing
Mounting 19-inch rack, 6 HP (1 slot)
Approvals SIL 2, CE, UL, ATEX Zone 2, IECEx
Typical Applications
  • Steam & gas turbine vibration protection
  • Compressor axial/radial position monitoring
  • Motor and pump bearing temperature-vibration combo
  • API 670 compliant machinery protection
  • SIL 2 safety-critical loops
What's in the Box
  • 1* MMS 6220 monitor
  • 1* Removable 24-pin terminal block
  • Factory calibration certificate & traceability label
  • Quick-start guide & ESD wrist strap
Installation & Setup
  1. Insert module into 19-inch rack.
  2. Connect 24 VDC supply and sensor wiring.
  3. Power on--OLED displays channel data.
  4. Configure alarm set-points via front panel or software.
  5. Perform loop test & SIL proof-test.
