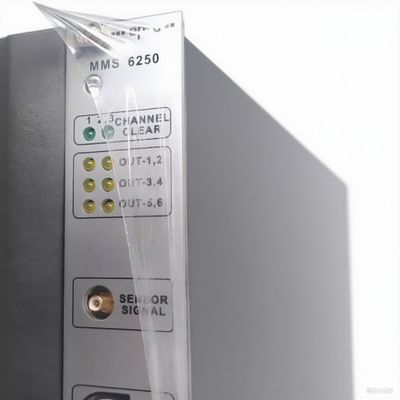

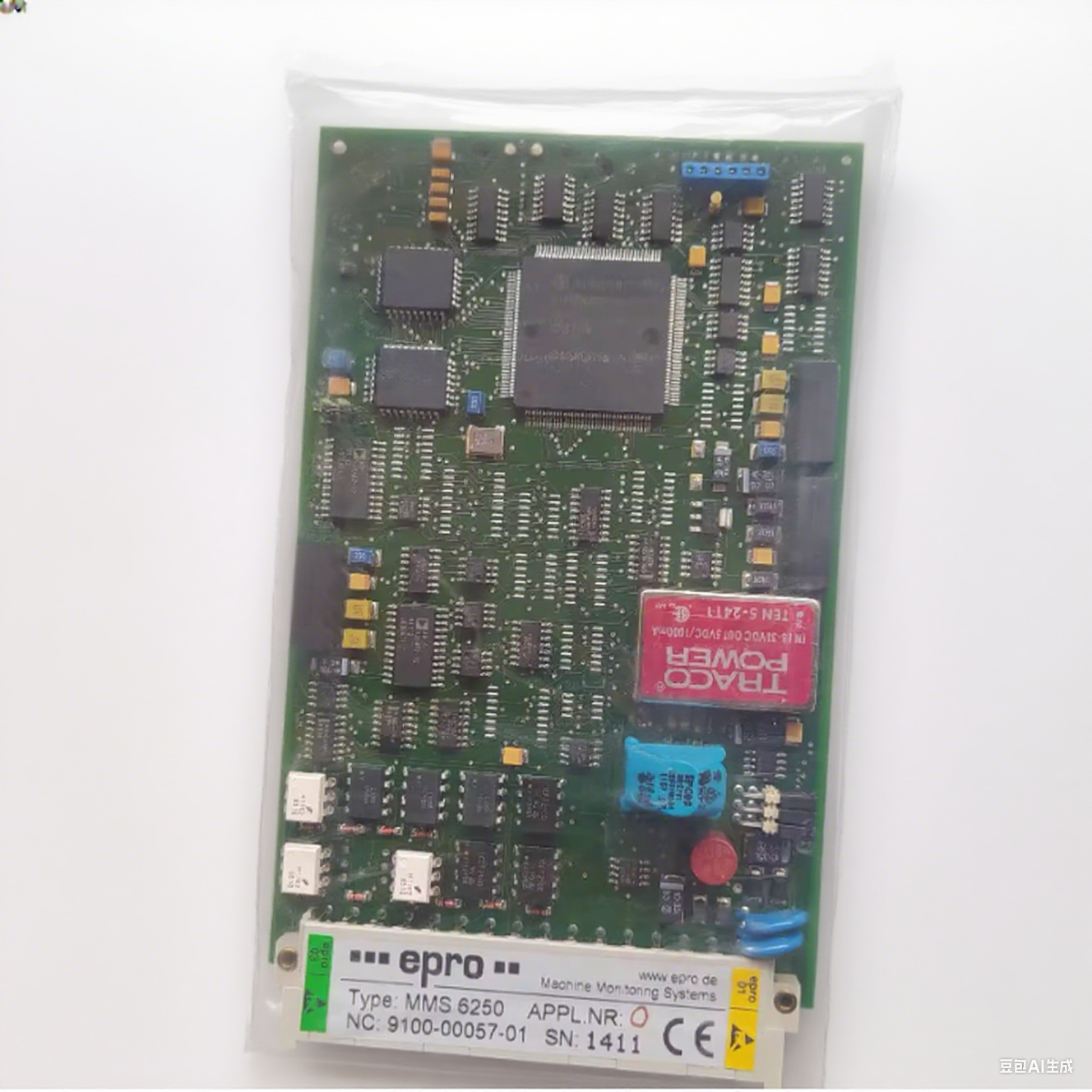

40 KHz MMS 6250 Emerson EPRO Vibration Test Module 8 Dynamic 24 VDC

The MMS 6250 is an OEM-authentic, rack-mounted vibration measurement module from Emerson's EPRO MMS 6000 family. It delivers eight simultaneous, high-resolution (24-bit) dynamic channels for shaft vibration, axial position, speed, and phase reference on critical turbomachinery. Ideal for new installs or drop-in upgrades demanding API 670 compliance and SIL 2 capability.

• 100% genuine Emerson EPRO—serialized & factory-sealed
• 8 simultaneous dynamic channels, galvanically isolated
• 24-bit ADC per channel, 0.05% full-scale accuracy
• Frequency response 0.3 Hz - 40 kHz (user selectable)
• Accepts piezo-electric, velocity coil, and proximity probes
• Dual buffered outputs: 4-20 mA + raw dynamic (BNC) per channel
• Built-in digital overspeed detection & phase marker
• Hot-swappable in MMS 6000 rack with automatic reconfiguration
• -40°C to +85°C operating, conformal-coated PCB
• CE, UL, ATEX, IECEx, SIL 2 (IEC 61508) certified

• Gas & steam turbines (Frame 5/6/7/9)
• Centrifugal & axial compressors
• Motors, generators, pumps, fans
• Gearbox monitoring & diagnostics
• API 670 & ISO 10816 compliant plants

• 1* MMS 6250 vibration test module
• 1* Factory calibration certificate & traceability label
• 1* ESD wrist strap
• Quick-start guide & MMS 6000 rack keying chart

1. Insert module into any MMS 6000 rack slot.
2. Connect sensors to spring-clamp terminals or BNCs as per wiring diagram.
3. Power up rack—green OK LED within 10 s.
4. Launch MMS Configuration Software; auto-detect module, assign scaling & alarms.
5. Perform loop test with certified shaker or TK3-2E calibrator.
6. Verify overspeed trip and phase reference accuracy.
