TC-IDD321 Honeywell 32 Digital DC Input Module

Product Details:

Place of Origin:	USA
Brand Name:	Honeywell
Certification:	COC
Model Number:	TC-IDD321

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$10-3000
Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 pieces one day

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	Honeywell 32-channel digital input module , 24VDC digital input module , Honeywell TC-IDD321 input module

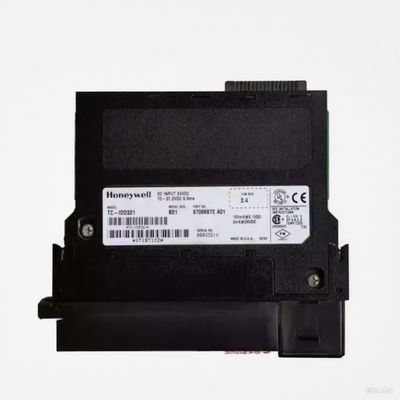

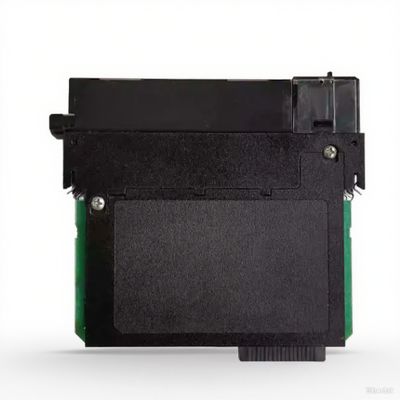

TC-IDD321 Honeywell 32 Digital DC Input Module

Product Description

The TC-IDD321 is an OEM-authentic, rack-mounted I/O module for Honeywell Experion LS and PlantCruise systems. It provides 32 line-monitored, 24 VDC digital inputs with built-in diagnostics and channel-level LED indication. Ideal for high-density discrete monitoring in process plants, packaging lines, and utility balance-of-plant skids.

Key Features & Benefits

32 galvanically-isolated, current-sinking inputs
24 VDC nominal (18-32 V operating range)
2 ms configurable input filter (de-bounce)
Built-in line-fault detection (open/short)
Hot-swappable without disrupting adjacent modules
Front-facing, channel-level red/green LEDs for quick diagnostics
Conformal-coated PCB for harsh environments
CE, UL, ATEX, IECEx Zone 2 approved

Technical Specifications

Parameter	Value
Model	TC-IDD321
Series	Experion LS I/O
Function	Digital DC Input
Channels	32
Input Type	Sinking, IEC 61131-2 Type 1
ON Voltage	15-32 VDC
OFF Voltage	0-5 VDC
Input Current	2.4 mA @ 24 VDC
Isolation	500 VAC channel-to-bus
Filter Time	0-65 ms (2 ms default)
Power Dissipation	4.5 W max
Operating Temp	0 °C … +60 °C
Humidity	5 % … 95 % RH non-condensing
Mounting	19 in. rack, 1 slot wide
Approvals	CE, UL Listed, ATEX Zone 2, IECEx

Typical Applications

DCS discrete status monitoring
Motor control centers (MCC) feedback
Emergency shutdown (ESD) valve position
Packaging & material-handling lines
Water treatment skids

What's in the Box

1* TC-IDD321 module
1* Terminal block (40-pin, spring-clamp)
1* Factory calibration certificate
Quick-start guide & ESD strap

Installation & Setup

Insert module into any available Experion LS I/O rack slot.
Connect 24 V field power and discrete signals to the removable spring-clamp terminal.
Power up rack; green READY LED in < 5 s.
Launch Control Builder; auto-detect module, assign tags, set filters.
Perform channel loop check and verify line-fault diagnostics.
