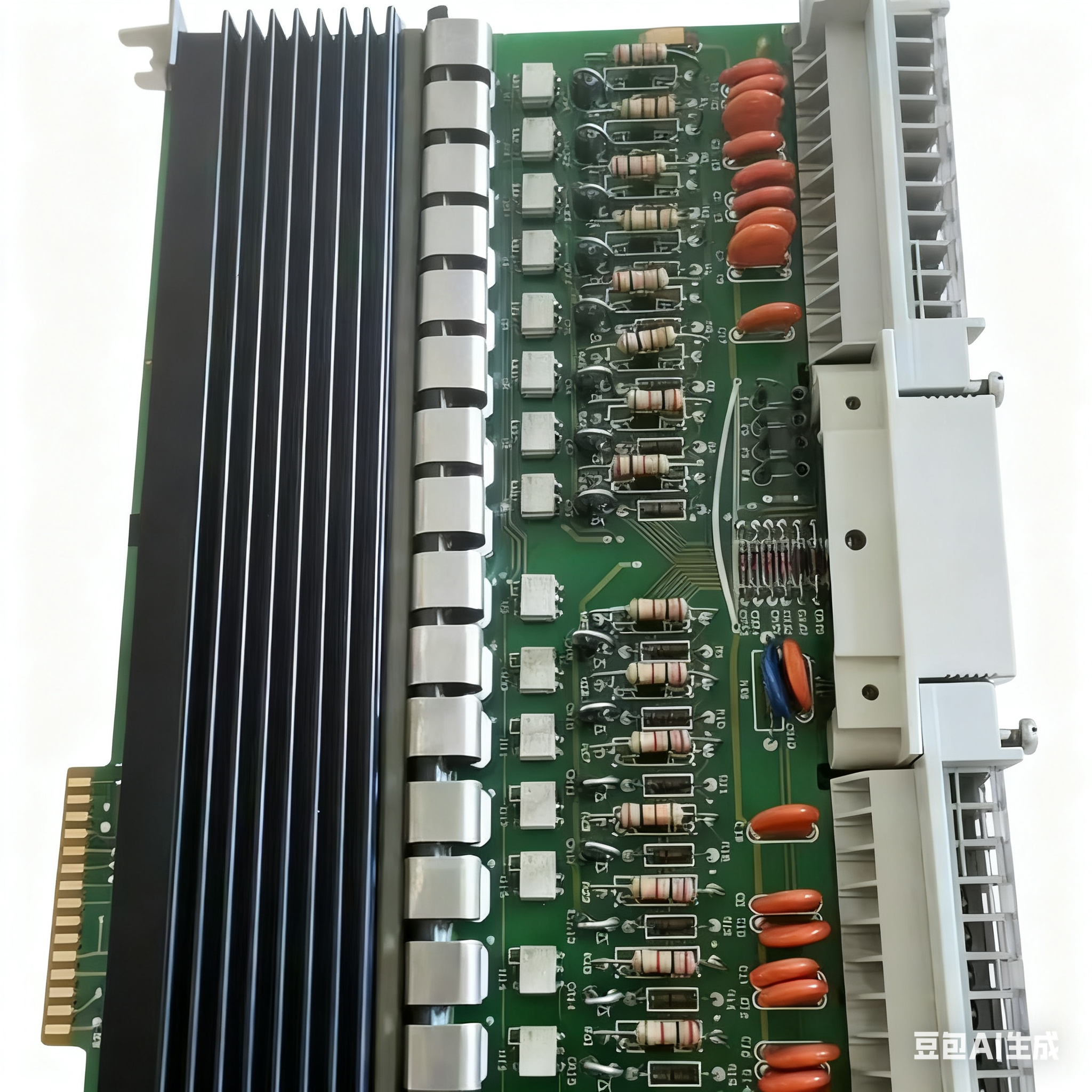

Name: 24V 621-6550RC Honeywell Source Output Module Lightweight Easy Installation
Brand: Xiamen IntelliLink Global Electronic Products Co., Ltd
SKU: 621-6550RC
Price: 99 USD
Availability: InStock

Home Products Honeywell PLC

24V 621-6550RC Honeywell Source Output Module Lightweight Easy Installation

Product Details:

Place of Origin:	USA
Brand Name:	Honeywell
Certification:	COC
Model Number:	621-6550RC

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$99
Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 pieces one day

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	24V 621-6550RC Honeywell , Source Output 621-6550RC Honeywell , Easy Installation DC Output Module

621-6550RC Honeywell | 24V Source Output Module

Product Snapshot

Honeywell 621-6550RC is a 24V source output module designed for PLC systems. It provides 16 output points, each capable of sourcing up to 2 A, with a total current rating of 5 A. This module is ideal for applications requiring reliable and efficient control of digital outputs in industrial automation and process control systems.

Key Features & Benefits

16 Output Points: Each point can source up to 2 A, with a total of 5 A.
24V Source Output: Suitable for a wide range of industrial applications.
Reliable Performance: Designed for robust industrial environments.
Compact Design: Fits into standard PLC racks, saving space in control panels.
Easy Integration: Compatible with Honeywell Modular Systems and other PLCs.
Global Approvals: UL, CE, RoHS, REACH compliant.

Technical Specifications

Part Number	621-6550RC
Series	Modular Systems
Type	24V Source Output Module
Output Voltage	24 VDC
Number of Outputs	16
Current Rating	2 A per output, 5 A total
Dimensions (WHD)	30 mm * 25 mm * 20 mm
Weight	1.49 lbs (0.68 kg)
Operating Temperature	0-55 °C
Storage Temperature	-25-+70 °C
Humidity	95% RH non-condensing
Certifications	UL, CE, RoHS, REACH

Typical Applications

Industrial automation systems
Process control in manufacturing plants
Motor control and speed adjustment
HVAC control systems
Conveyor belt control in logistics

Compatible Hardware

PLCs: Honeywell Modular Systems, other compatible PLCs
Cables: Standard PLC ribbon cable
Power Supply: 24 VDC power supply
Software: Honeywell programming software or other compatible PLC software

Installation & Configuration

Mount Module: Secure the 621-6550RC in a standard PLC rack.
Connect Power: Ensure the 24 VDC power supply is connected.
Insert Ribbon Cable: Connect the PLC ribbon cable to the module.
Power Up PLC: Turn on the PLC and wait for the status LEDs to stabilize.
Configure Outputs: Use compatible PLC software to set the output ranges and signal types.
Test Outputs: Verify the digital outputs using a multimeter to ensure they match the configured values.
