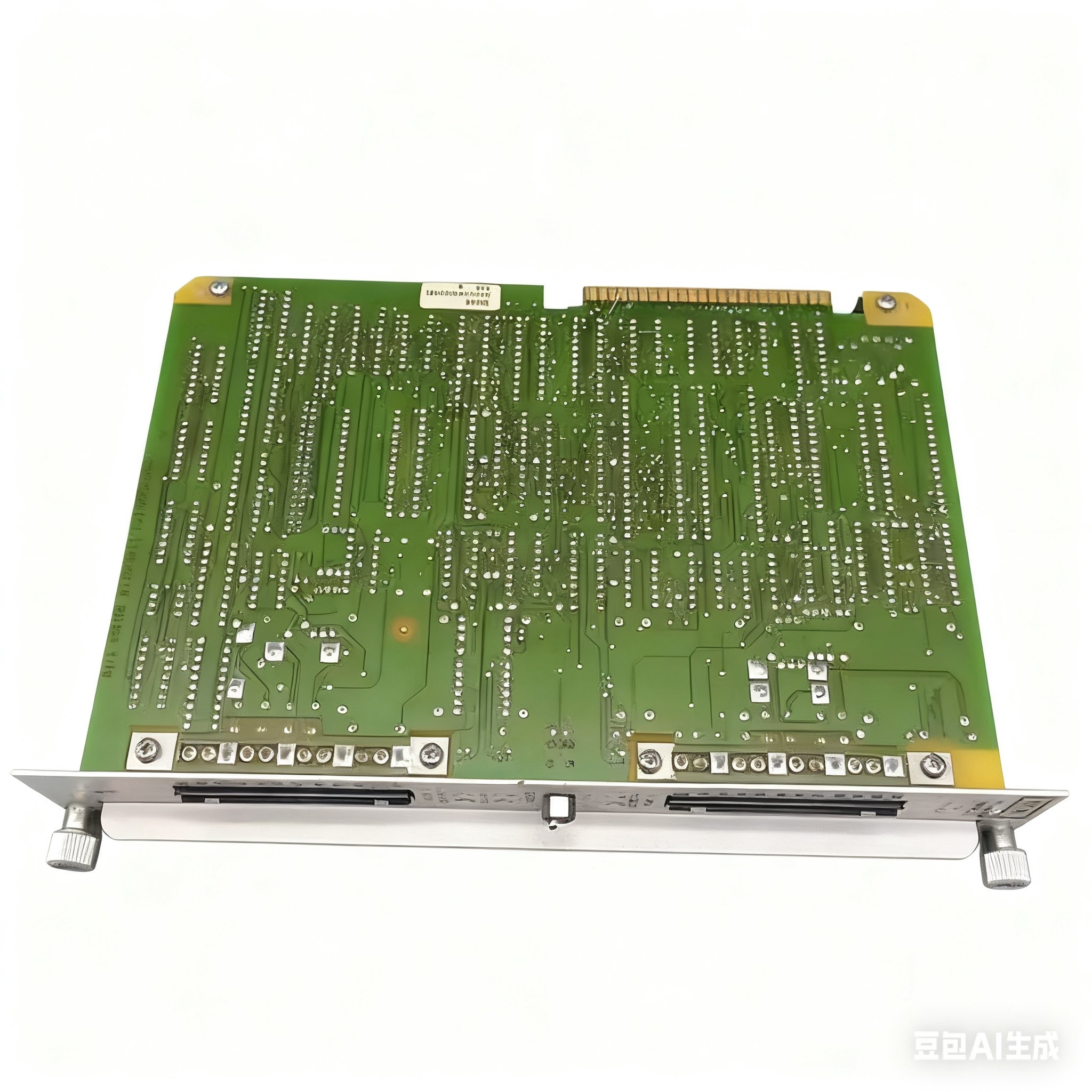

Name: 16 DI Inputs 621-9937 Honeywell Parallel I/O Module 120mA LED Diagnostics
Brand: Xiamen IntelliLink Global Electronic Products Co., Ltd
SKU: 621-9937
Availability: InStock

Home Products Honeywell PLC

16 DI Inputs 621-9937 Honeywell Parallel I/O Module 120mA LED Diagnostics

Product Details:

Place of Origin:	USA
Brand Name:	Honeywell
Certification:	COC
Model Number:	621-9937

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 pieces one day

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	Inputs 621-9937 Honeywell , 16 DI 621-9937 Honeywell , 120mA Honeywell IO Module

621-9937 Honeywell Parallel I/O Module | 16 DI

Product Overview

The 621-9937 is a Honeywell Parallel I/O Module that provides 16 digital inputs (18-30 VDC) for the Honeywell IPC / ISSC 600 family. Plugging straight into the rack back-plane, it delivers:

Opto-isolated inputs - 2 kV channel-to-bus
LED status per channel - instant fault finding
Hot-swap - replace without powering down the rack
Parallel data transfer - < 1 ms update for high-speed interlocks

Ideal for CNC, packaging, power-gen and process skids that need fast, deterministic I/O expansion.

Key Specifications

Attribute	Value
Part Number	621-9937
Manufacturer	Honeywell
Module Type	Parallel I/O - 16 DI
Input Range	18-30 VDC (ON ≥ 15 V, OFF ≤ 5 V)
Isolation	2 kV RMS, opto-coupled
Current Draw	120 mA @ 24 V (typ)
Response Time	< 1 ms (rack update)
Rack Slots	1 (single-width)
LEDs	16 green (input status)
Bus	Parallel back-plane, ISSC 600 / IPC 600
Power	Supplied from rack, 20-32 VDC
Temp	0...+60 °C operating, -40...+85 °C storage
Humidity	5...95 % RH non-condensing
Shock/Vibe	IEC 60068-2-6, 5 g; 30 g shock
Weight	0.68 kg (1.5 lb)
Certifications	CE, UL, cUL, Class I Div 2, RoHS

Features & Benefits

16 opto-isolated inputs - protect CPU from field faults
Parallel back-plane - deterministic < 1 ms update
Hot-swappable - reduce downtime
LED diagnostics - find broken wires fast
Wide voltage range - works with 24 VDC industry standard
Class I Div 2 - safe in hazardous petrochem areas
Drop-in for ISSC 600 / IPC 600 racks - no configuration jumpers

Typical Applications

Power-generation turbine skids
Oil & gas well-head controls
Packaging line interlocks
CNC machine tool I/O
Water/waste-water SCADA remote I/O

What's Included

621-9937 module
Removable terminal block (screw-type)
Rack locking lever & label
Calibration / conformance certificate
Quick-install card
