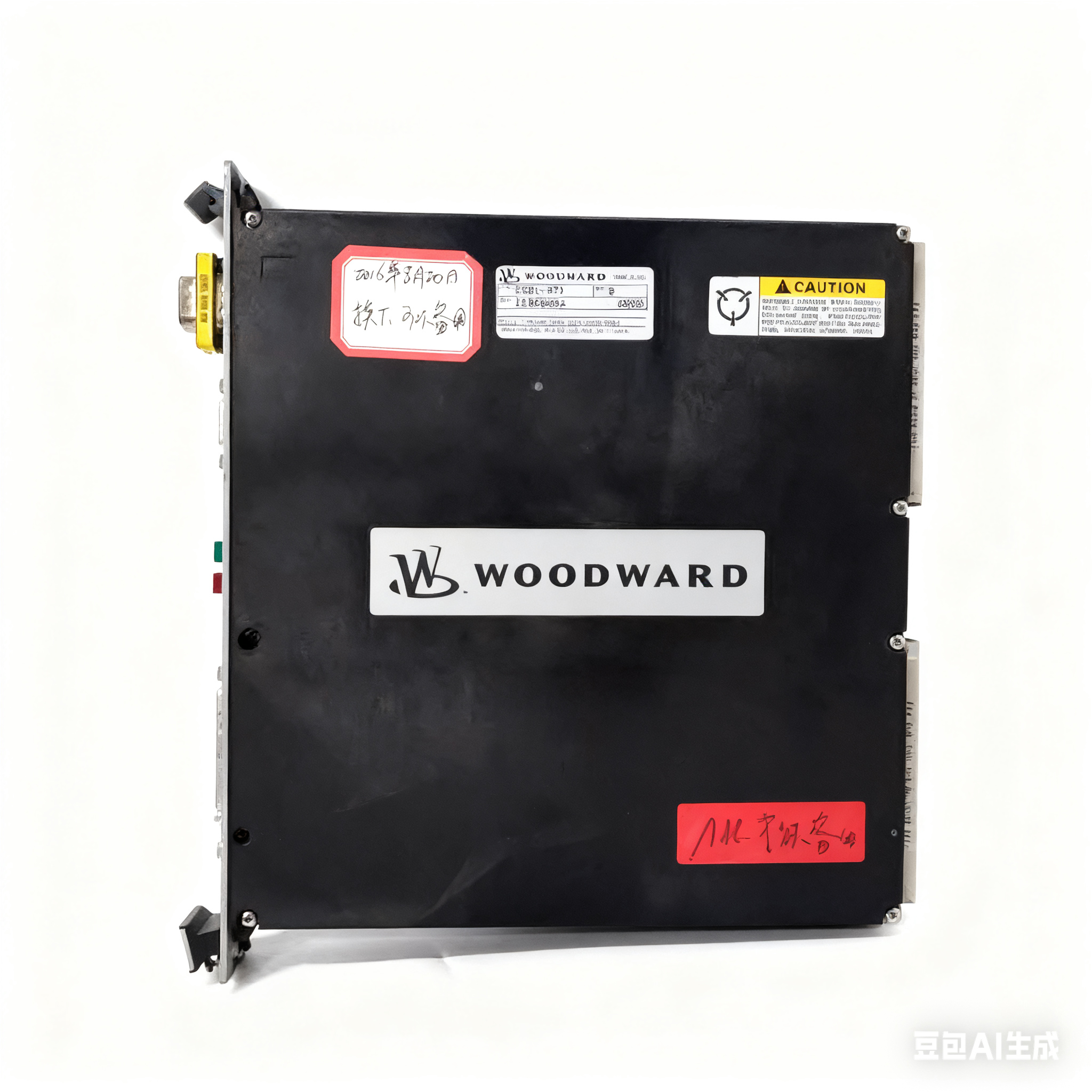

DSL Digital Woodward Module 5501-471 Woodward Speed Position Sensor Module

DSL Digital Woodward Module 5501-471 Woodward Speed Position Sensor Module

  • DSL Digital Woodward Module 5501-471 Woodward Speed Position Sensor Module
DSL Digital Woodward Module 5501-471 Woodward Speed Position Sensor Module
Product Details:
Place of Origin: USA
Brand Name: Woodward
Certification: CO
Model Number: 5501-471
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $999
Packaging Details: original
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10 pieces one day
Contact Now
Detailed Product Description
Type: Module Shipping By: DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time: In Stock Product Type: Module
Payment: T/T Trading Term: EXW
Highlight:

DSL Digital 5501-471 Woodward

,

Speed Position 5501-471 Woodward

,

DSL Digital Woodward Module

5501-471 Woodward DSL Digital Speed & Position Sensor Module
Product Description
The 5501-471 is a genuine Woodward DSL (Digital Speed Link) module that converts magnetic pick-up or encoder signals into high-resolution speed and position data for gas/steam turbines, compressors and engines. With SIL 2 certification and hot-swap capability, it ensures reliable speed control and overspeed protection in safety-critical applications.
Key Features & Benefits
  • 100% OEM Woodward - serialized & factory-sealed
  • Accepts magnetic pick-up (MPU) and incremental encoder
  • Speed range 1 Hz-12 kHz, resolution 0.001%
  • Isolated 24 VDC power & signal channels
  • On-board overspeed detection & alarm relay
  • Hot-swap in DSL rack - no shutdown required
  • Redundant power inputs with diode OR-ing
  • -40°C to +85°C operating range, conformal-coated
  • SIL 2 (IEC 61508), CE, UL 508, ABS, ATEX certified
Technical Specifications
Parameter Value
Model 5501-471
Manufacturer Woodward
Function Digital speed/position sensor interface
Inputs 1 MPU + 1 differential encoder
Speed Range 1 Hz - 12 kHz
Resolution 0.001% of reading
Accuracy ±0.02% @ 25°C
Output RS-485, 4-20 mA, relay
Relay Rating 250 VAC / 30 VDC, 5 A
Power 24 VDC (18-36 V), 8 W max
Isolation 2 kV channel-to-bus
Operating Temp -40°C to +85°C
Humidity 5% to 95% RH non-condensing
Mounting DSL rack, 1 slot
Approvals SIL 2, CE, UL 508, ABS, ATEX Zone 2
Typical Applications
  • Gas/steam turbine speed control
  • Compressor surge prevention & load sharing
  • Engine overspeed protection
  • Generator frequency monitoring
  • SIL 2 safety-critical speed loops
What's Included
  • 1× 5501-471 DSL speed sensor module
  • 1× Removable 20-pin spring-clamp terminal block
  • Factory calibration certificate & traceability label
  • Quick-start guide & ESD wrist strap
Installation & Setup
  1. Insert module into DSL rack slot
  2. Connect magnetic pick-up or encoder cables
  3. Connect 24 VDC power and output wiring
  4. Power on - green STATUS LED should illuminate within 10 seconds
  5. Configure speed set-points & overspeed limits in Woodward GAP

Tag:

8200-224 Woodward,

Woodward 5466-348,

5501-471 Woodward
