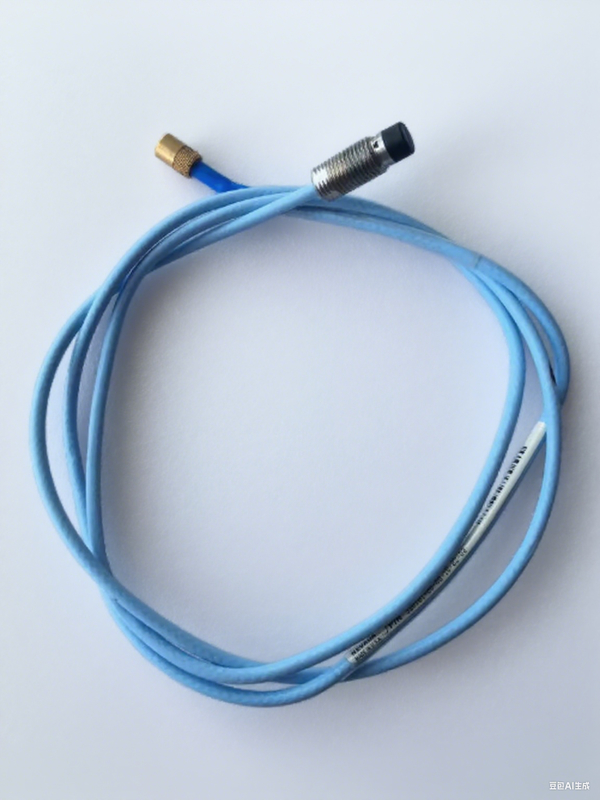

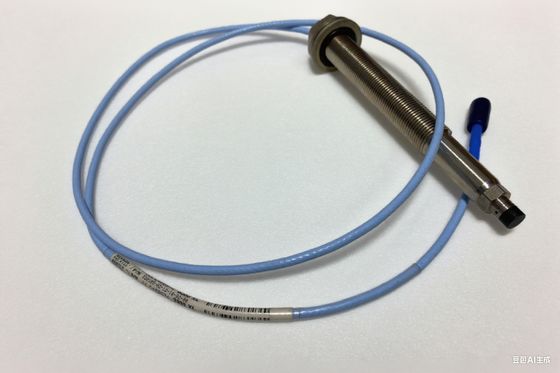

5m Bently Nevada Parts 21505-022-055-10-02 Bently Nevada Extension Cable

5m Bently Nevada Parts 21505-022-055-10-02 Bently Nevada Extension Cable

  • 5m Bently Nevada Parts 21505-022-055-10-02 Bently Nevada Extension Cable
  • 5m Bently Nevada Parts 21505-022-055-10-02 Bently Nevada Extension Cable
5m Bently Nevada Parts 21505-022-055-10-02 Bently Nevada Extension Cable
Product Details:
Place of Origin: USA
Brand Name: Bently Nevada
Certification: COC
Model Number: 21505-022-055-10-02
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $500
Packaging Details: original
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10 pieces one day
Contact Now
Detailed Product Description
Type: Module Shipping By: DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time: In Stock Product Type: Module
Payment: T/T Trading Term: EXW
Highlight:

5m Bently Nevada Parts

,

Extension Cable Bently Nevada Parts

,

Extension Cable 21505-022-055-10-02

21505-022-055-10-02 Bently Nevada 5-Metre Extension Cable for 3500/42M & 3300 XL Proximitors
Product Snapshot
21505-022-055-10-02 is a 5-metre triaxial extension cable that connects 3300 XL proximity probes to 3500/42M, 3500/40M or 3300 XL monitor racks. Steel-wire armour and FEP jacket withstand oil, steam and 200 °C bearing-housing temperatures, making it the default choice for gas & steam turbines, compressors and critical pumps.

Key Features & Benefits
  • Exact OEM match - same electrical length as original probe system; no re-calibration needed
  • 5 m (16.4 ft) length - covers most frame 5 & 6 gas-turbine applications without excess slack
  • Triaxial construction - inner signal, inner shield, outer shield; 90 % noise rejection
  • Armoured & oil-proof - steel braid + FEP jacket, IP68, UV and ozone resistant
  • -55 °C to +200 °C - survives cold starts and hot bearings
  • 10 mm fine thread - mates with 3300 XL 8 mm probe and all 3500/42M drivers
  • Global certs - ATEX Cat 3, IECEx, RoHS, REACH

Technical Specifications
Parameter Value
Part Number 21505-022-055-10-02
Description Triaxial Extension Cable, armoured, 5 m
Electrical Length 5.00 m ±25 mm (16.4 ft)
Temperature Range -55 °C to +200 °C (static)
Jacket Material FEP, black, oil & steam resistant
Armour Galvanised steel wire braid
Outer Diameter 8.2 mm
Connector Probe 10 mm fine thread, 3-lug bayonet
Connector Driver 3-lug bayonet, gold-plated contacts
Capacitance 74 pF/m (triaxial)
Impedance 50 Ω ±2 %
Bending Radius ≥ 76 mm (5 * OD)
Protection IP68 mated, salt-spray 1000 h
Weight 0.42 kg
Certifications ATEX Cat 3, IECEx, RoHS, REACH

Typical Applications
  • Gas-turbine bearing vibration (frame 5, 6, 9)
  • Steam-turbine axial position (dual probe)
  • Centrifugal compressor thrust measurement
  • Critical pump temperature/vibration combo systems
  • Offshore platforms (salt-spray resistant)

Compatible Components
  • Probes: 3300 XL 8 mm series (330103, 330104, 330105)
  • Drivers: 3500/42M, 3500/40M, 330180-XX-05
  • Monitor Racks: 3500/05, 3500/15, 3500/25
  • Thread Adapters: 10 mm -> 3/8-24 or M8 available separately

Installation & Handling
  1. Hand-tighten connector until bayonet clicks; torque 0.9 N*m.
  2. Maintain bend radius ≥ 76 mm to preserve capacitance accuracy.
  3. Earth outer shield at driver end only to avoid ground loops.
  4. Route away from > 480 V cables; use metallic conduit when necessary.
  5. Verify continuity with 3300 XL test kit; capacitance should read 370 pF ±10 pF.
