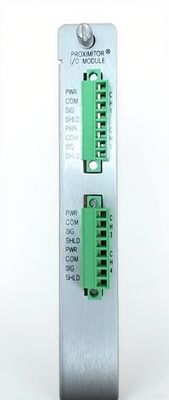

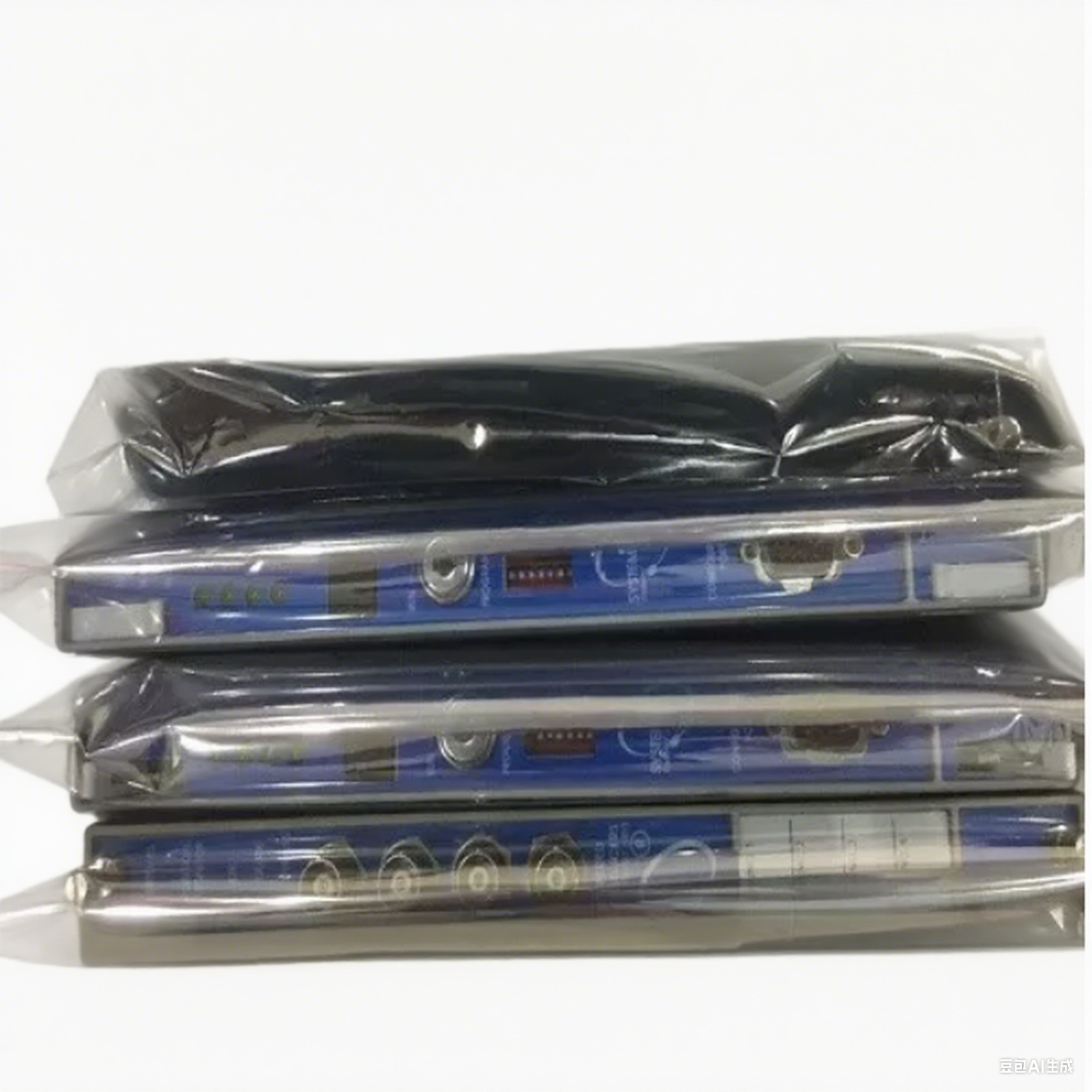

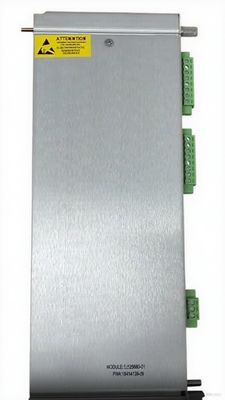

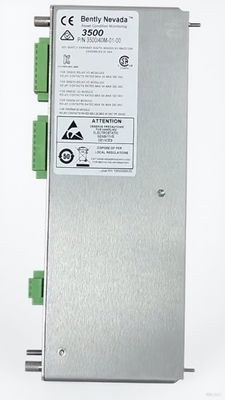

4 Channel Bently Nevada Parts Proximitor Module Bently Nevada 3500/40M 125680-01 10 Vdc

4 Channel Bently Nevada Parts Proximitor Module Bently Nevada 3500/40M 125680-01 10 Vdc

  • 4 Channel Bently Nevada Parts Proximitor Module Bently Nevada 3500/40M 125680-01 10 Vdc
  • 4 Channel Bently Nevada Parts Proximitor Module Bently Nevada 3500/40M 125680-01 10 Vdc
  • 4 Channel Bently Nevada Parts Proximitor Module Bently Nevada 3500/40M 125680-01 10 Vdc
  • 4 Channel Bently Nevada Parts Proximitor Module Bently Nevada 3500/40M 125680-01 10 Vdc
4 Channel Bently Nevada Parts Proximitor Module Bently Nevada 3500/40M 125680-01 10 Vdc
Product Details:
Place of Origin: USA
Brand Name: Bently Nevada
Certification: CO
Model Number: 3500/40M
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $499
Packaging Details: original
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10 pieces one day
Contact Now
Detailed Product Description
Type: Module Shipping By: DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time: In Stock Product Type: Module
Payment: T/T Trading Term: EXW
Highlight:

4 Channel Bently Nevada 3500/40M

,

10 Vdc 125680-01 Bently Nevada 3500/40M

,

10 Vdc Bently Nevada Parts

Bently Nevada TSI Parts 3500/40M Proximitor Module 125680-01
Product Description
The 125680-013.1 is a factory-configured 3500/40M Proximitor Monitor module with four independent eddy-current channels for radial vibration, thrust position, and differential expansion on critical turbomachinery. Drop-in compatible with all 3500 racks and fully supported by System 1® software for advanced diagnostics.
Key Features

• OEM Genuine – serialized & sealed anti-static packaging
• 4-channel, 16-bit resolution per channel
• Accepts signals from 3300 XL & 7200 series Proximitor sensors
• Programmable OK, Alert, and Danger setpoints via 3500 Rack Configuration Software
• Front-panel buffered outputs for portable analyzers (BNC)
• Hot-swappable without rack power-down (redundant power)
• API 670 compliant, SIL 2 capable (IEC 61508)



Technical Specifications
Parameter Value
Part Number 125680-013.1
Series 3500/40M Proximitor Monitor
Channels 4 differential, isolated
Input Range 0–10 Vdc (–20 Vdc to +20 Vdc option)
Frequency Response 0.1 Hz – 10 kHz (–3 dB)
Accuracy ±1 % full scale @ 25 °C
Buffered Outputs BNC, 10 kΩ, 1:1
Setpoints 2 per channel (Alert & Danger)
Relay Outputs Via 3500/32M or 3500/33M modules
Power 24 Vdc via rack backplane (6 W max)
Temperature 0 °C … +65 °C operating
Housing 1-slot, 6U Eurocard, conformal coated
Approvals CE, UL, ATEX, IECEx, SIL 2, API 670
Applications
• Steam & gas turbines
• Centrifugal & reciprocating compressors
• Motors, generators, pumps
• Gearbox shaft vibration monitoring
• API 670 & ISO 10816 compliant plants

What’s in the Box
• 1× 3500/40M 125680-013.1 module
• 1× ESD wrist strap
• Factory calibration & traceability certificate
• Quick-install guide

Installation & Configuration
  1. Insert into any available slot of a powered 3500 rack.
  2. Launch 3500 Rack Configuration Software; import latest revision file (.rdf).
  3. Map sensor type (3300 XL 5 mm/8 mm) and scale factors.
  4. Set OK limits, Alert & Danger setpoints per machinery specifications.
  5. Perform loop test with TK3-2E calibration fixture.
  6. Enable System 1 connectivity for trending and predictive analytics.
