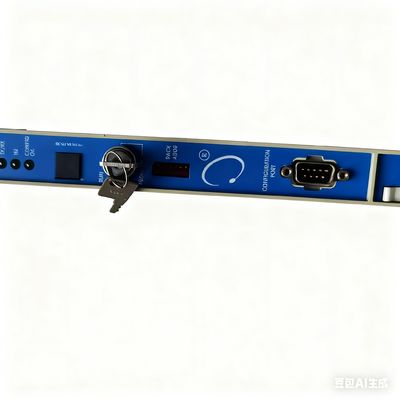

Long Lasting 125760-01 Bently Nevada 3500/20 Power Supply Module Current Protection

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CO
Model Number:	125760-01

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$499
Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 pieces one day

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	Current Protection 125760-01 , 3500/20 125760-01 Bently Nevada , 3500/20 Power Supply Module

125760-01 Bently Nevada 3500/20 Power Supply Module

Product Snapshot

125760-01 is the high-voltage AC input version of the 3500/20 Power Supply Module. It converts 85 - 264 V AC into regulated +5 V, +12 V and -12 V DC rails required by every card in a 3500 rack. Redundant load-sharing, over-voltage/over-temperature protection and automatic current-limiting ensure API-670-compliant uptime for gas & steam turbines, compressors and critical pumps.

Key Features & Benefits

Wide AC input - 85 - 264 V AC, 47 - 63 Hz; no jumper changes
Triple DC output - +5 V @ 7 A, +12 V @ 2.2 A, -12 V @ 0.5 A
Redundancy-ready - two 125760-01 units share load; auto-switchover < 1 ms
Hot-swap - rack remains powered during replacement (≤ 30 s)
Integrated diagnostics - DC OK relay, over-temp alarm, fan-fail input
Quiet & efficient - 91 % efficiency, temperature-controlled fan < 45 dB
Global approvals - CE, UL, CSA, ATEX Zone 2, IEC 61508 SIL 2, RoHS, REACH

Technical Specifications

Part Number	125760-01
Description	3500/20 Power Supply Module (High Voltage AC)
Input Voltage	85 - 264 V AC, 47 - 63 Hz
Max Input Current	1.8 A @ 115 V AC / 0.9 A @ 230 V AC
DC Outputs	+5 V @ 7 A, +12 V @ 2.2 A, -12 V @ 0.5 A
Total Power	60 W continuous, 75 W peak (< 10 s)
Hold-up Time	20 ms @ full load
Efficiency	91 % @ 230 V AC, 50 % load
Protection	OVP, OCP, OTP, fan-fail alarm
Redundancy	Load-sharing, OR-ing diodes built-in
Operating Temp	0 - 65 °C (derate 2 %/°C > 55 °C)
Storage Temp	-40 - +85 °C
Humidity	95 % RH non-condensing
Cooling	Temperature-controlled fan, front-to-rear
Noise	< 45 dB @ 1 m
Dimensions (HWD)	241 * 24 * 241 mm (1-slot)
Weight	0.9 kg (2 lb)
Slot Requirement	1 * left-most slot recommended (any slot allowed)
Certifications	CE, UL 508, CSA, ATEX Zone 2, IEC 61508 SIL 2, RoHS
