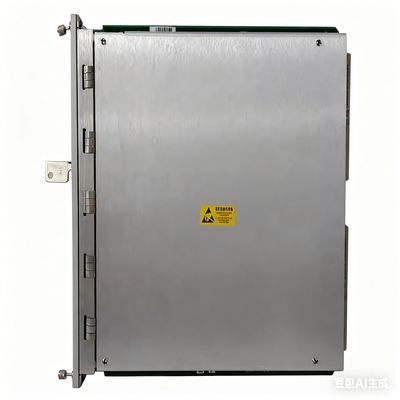

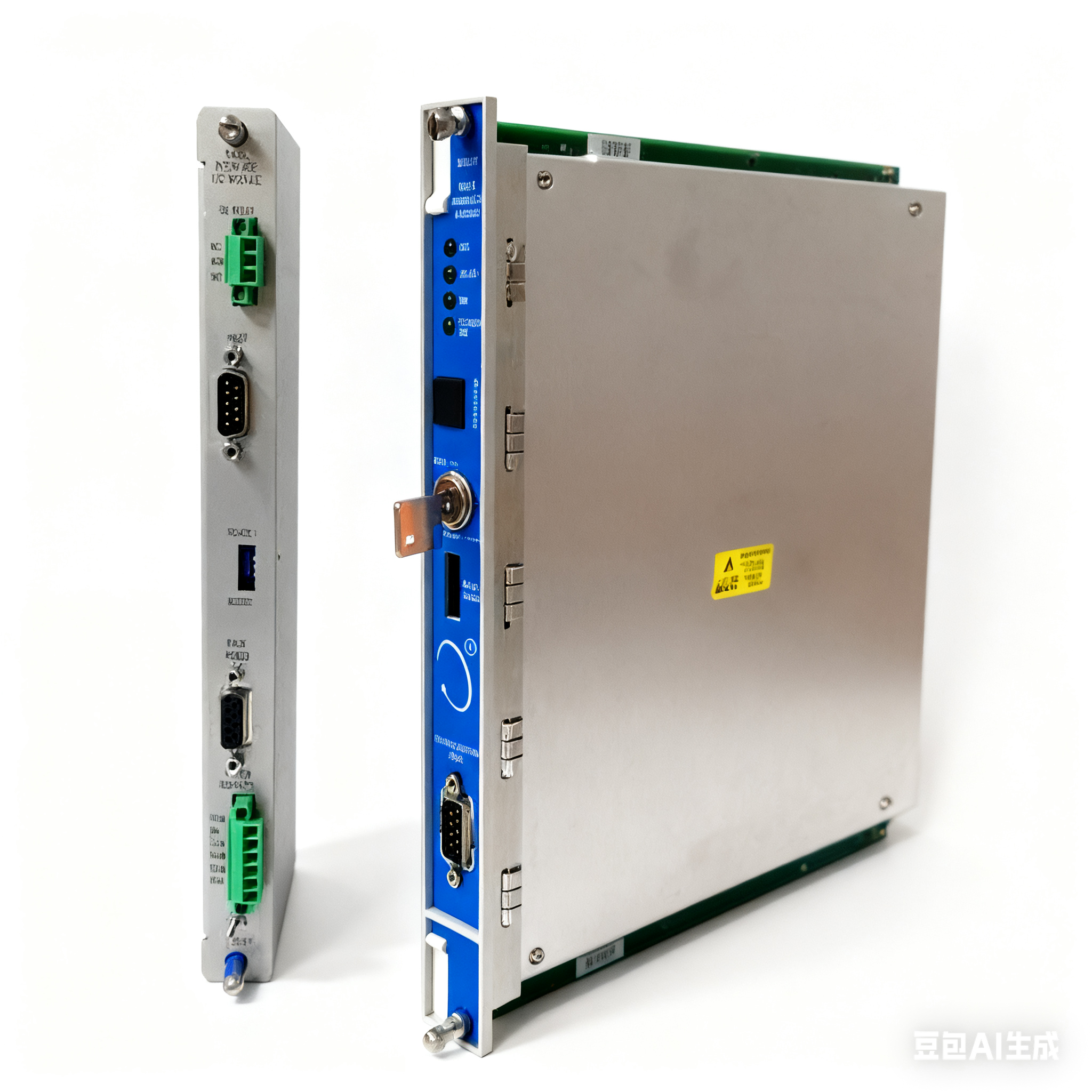

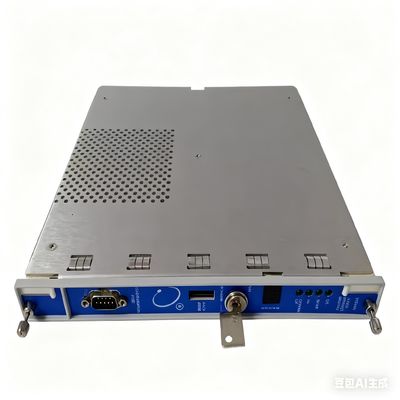

3500/22M TDI Bently Nevada – Transient Data Interface Module

Product Overview

The 3500/22M Transient Data Interface (TDI) is the core communications gateway of the Bently Nevada 3500 machinery protection suite. Installed in slot 1 of any 3500 rack, the module simultaneously:

Collects real-time steady-state vibration, position & process values
Captures high-resolution transient waveforms during start-ups, shut-downs or faults
Streams all data over 10/100 Mb Ethernet to System 1®, BN TDI protocol, or third-party historians
Provides a local USB-B port for on-site configuration, upgrades & diagnostics

Whether you run compressors in an LNG plant, turbines in a power block, or pumps in a refinery, the 3500/22M TDI gives reliability teams the speed, resolution and bandwidth needed for true predictive analytics.

Key Advantages

Advantage	Benefit
102.4 kHz sampling per channel	See blade-pass, gear-mesh & bearing defect frequencies
Up to 48 simultaneous waveforms	Full machine train view in one snapshot
4 * Keyphasor inputs (100 000 rpm)	Accurate speed, phase & order tracking
Optional 100Base-FX fibre	Noise-immune, long-distance plant networking
TMR-ready	Triple-module redundancy for SIL-rated protection
Hot-swappable, firmware-upgradeable	Zero-downtime expansion & cyber-security patching

Technical Specifications

Parameter	Value
Part numbers	3500/22M - 138607-01 (standard), 138607-02 (extended temp)
Manufacturer	Bently Nevada
Rack position	Slot 1 (adjacent to power supply)
Power draw	7.7 W typical, 10.5 W max
Ethernet	10/100 Base-TX (RJ-45) + optional 100Base-FX (MT-RJ)
USB service port	USB-B 2.0 full-speed, front-panel
Data protocols	BN Host, BN TDI (TCP/IP), OPC UA, Modbus TCP (via 3500/92)
Max. waveforms	48 channels @ 102.4 kHz, 2048 samples configurable
Keyphasor speed	1 … 100 000 rpm (4 channels)
Operating temp	-30 °C … +65 °C (-22 °F … +149 °F)
Storage temp	-40 °C … +85 °C
Humidity	95 % non-condensing
Vibration	IEC 68-2-6, 5 g, 10-500 Hz
Hazardous area	Optional CSA C/US, ATEX/IECEx Zone 2, Class I Div 2
Dimensions	241 mm * 24 mm * 242 mm (9.50″ * 0.96″ * 9.52″)
Weight	0.91 kg (2.0 lb)

Typical Applications

Gas & steam turbines - transient torsional analysis
Centrifugal & reciprocating compressors - surge & valve impact detection
API 547 & API 670 compliant motors/generators - start-up current/vibration correlation
High-speed centrifuges - bowl imbalance & bearing fault isolation
Integrators - OEM skids with remote System 1® dashboards
