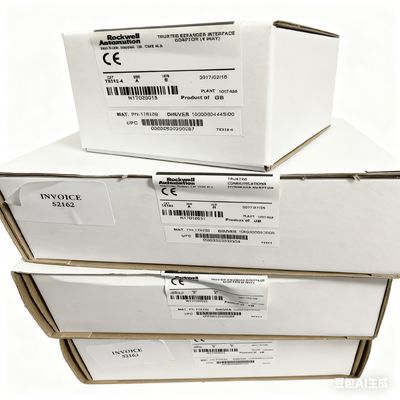

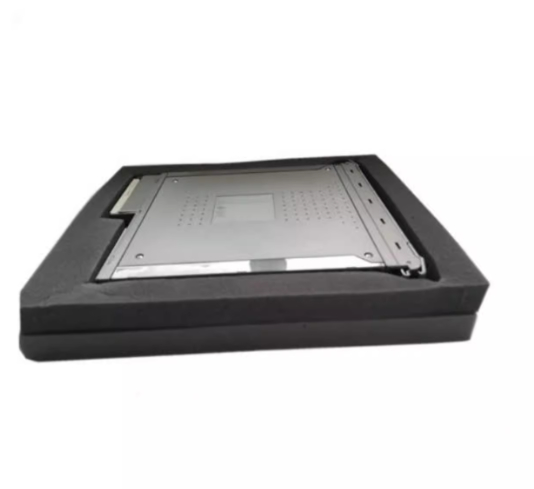

T8312 ICS TriplexRockwell Automation ICS Triplex PLC 24 VDC Trusted Extended Interface Adapter

Product Details:

Place of Origin:	USA
Brand Name:	ICS Triplex
Certification:	COC
Model Number:	T8312

Payment & Shipping Terms:

Price:	$399
Payment Terms:	T/T

Contact Now

Detailed Product Description

Type:	Module	Shipping By:	DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time:	In Stock	Product Type:	Module
Payment:	T/T	Trading Term:	EXW
Highlight:	Rockwell Automation T8312 ICS Triplex , 24 VDC T8312 ICS Triplex , Automation ICS Triplex PLC

Short Description
The T8312 is a genuine ICS Triplex (Rockwell Automation) forced-air cooling and power-distribution unit for Trusted TMR racks. It provides redundant 24 VDC feeds, hot-swap fan trays, temperature monitoring and ISA G3 conformal coating, ensuring reliable thermal management and power routing for SIL 3 safety systems in harsh oil & gas, chemical and power-generation environments.

Key Features & Benefits

• 100 % OEM ICS Triplex – serialized & factory-sealed
• Forced-air cooling with dual hot-swap 24 VDC fans
• Redundant 24 VDC power feeds (A & B) with diode OR-ing
• Temperature sensor & fan-fail alarm relay output
• Distributes 24 VDC, 0 V and chassis ground to all rack slots
• Supports up to 16 Trusted I/O or CPU modules
• Hot-swap fans – no system shutdown required
• ISA G3 conformal coating for corrosive atmospheres
• –40 °C … +70 °C operating range
• SIL 3 (IEC 61508) certified for safety-critical systems

Technical Specifications

Parameter	Value
Model	T8312
Series	Trusted TMR (Rockwell ICS Triplex)
Function	Rack fan & power distribution
Cooling	Dual 24 VDC brushless fans, hot-swap
Airflow	120 m³/h per fan (240 m³/h total)
Power Input	24 VDC (20–32 V) A & B feeds
Power Output	24 VDC @ 20 A, 0 V, chassis ground
Alarm Output	Fan fail & over-temp relay (SPDT)
Isolation	2.5 kV impulse withstand
Temperature	Monitored via on-board sensor
Operating Temp	–40 °C … +70 °C
Humidity	5 % … 95 % RH non-condensing
Mounting	Left side of Trusted rack, 2 slots
Approvals	SIL 3, CE, UL 508, ATEX Zone 2, IECEx

Typical Applications

• Trusted TMR rack thermal management
• SIL 3 ESD and fire-&-gas systems
• Offshore platform safety racks
• Chemical plant HIPPS panels
• Power-generation turbine protection

What’s in the Box

• 1× T8312 fan & power distribution unit

• 2× Hot-swap fan cartridges (pre-installed)

• 1× Removable power terminal block

• Factory calibration certificate & SIL 3 conformity report

• Quick-start guide & ESD wrist strap

Installation & Setup

Mount T8312 on left side of Trusted rack (slots 0 & 1).
Connect redundant 24 VDC feeds A & B to terminal block.
Plug internal power harness into backplane.
Power on—fans start automatically; green LED indicates OK.
Verify airflow and fan-fail alarm via ICS Triplex Engineer.
