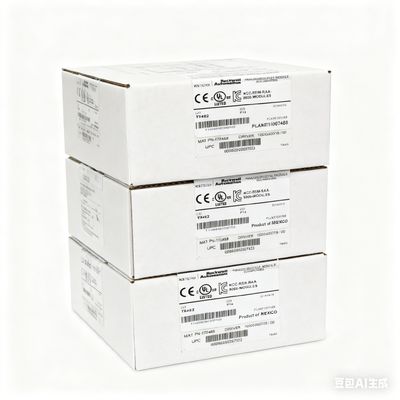

Rockwell Trusted T9482 ICS Triplex TMR 40 Channel Line Fault Detection 24 VDC

Rockwell Trusted T9482 ICS Triplex TMR 40 Channel Line Fault Detection 24 VDC

  • Rockwell Trusted T9482 ICS Triplex TMR 40 Channel Line Fault Detection 24 VDC
  • Rockwell Trusted T9482 ICS Triplex TMR 40 Channel Line Fault Detection 24 VDC
Rockwell Trusted T9482 ICS Triplex TMR 40 Channel Line Fault Detection 24 VDC
Product Details:
Place of Origin: USA
Brand Name: ICS Triplex Rockwell
Certification: COC
Model Number: T9482
Payment & Shipping Terms:
Price: $999
Payment Terms: T/T
Contact Now
Detailed Product Description
Type: Module Shipping By: DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time: In Stock Product Type: Module
Payment: T/T Trading Term: EXW
Highlight:

Rockwell Trusted T9482 ICS Triplex

,

TMR 40 Channel T9482 ICS Triplex

,

DC Digital Output Module

T9482 ICS Triplex Rockwell Trusted TMR 40-Channel Digital Output Module
Product Description
The T9482 is a genuine ICS Triplex (Rockwell Automation) 40-channel triple-modular-redundant (TMR) digital output module for the Trusted SIL 3 safety system. It delivers 24 VDC at 0.5 A per channel, with short-circuit protection, line-fault detection and < 1 ms output response, ensuring fault-tolerant control of valves, motors and alarms in the most critical oil & gas, chemical and power-generation applications.
Key Features & Benefits
  • 100 % OEM ICS Triplex - serialized & factory-sealed
  • 40 digital outputs, 24 VDC, 0.5 A per channel
  • Triple Modular Redundancy (TMR) voted per channel
  • < 1 ms output response time (typical)
  • Short-circuit, over-temperature & line-fault detection
  • 2 kV impulse withstand isolation, ISA G3 coating
  • Hot-swap via Companion Slot - no system shutdown
  • Built-in 1 ms Sequence-of-Events (SOE) feedback
  • 0.1 A to 0.5 A current-limit per channel (configurable)
  • -40 °C … +70 °C operating, conformal-coated
  • SIL 3 (IEC 61508) certified by TÜV for safety loops
Technical Specifications
Parameter Value
Model T9482 (also marketed as T9482C)
Series Trusted TMR (Rockwell ICS Triplex)
Channels 40 digital outputs
Output Voltage 24 VDC (20-32 V)
Output Current 0.5 A per channel, 20 A per module
Response Time < 1 ms (typical)
TMR Voting 2oo3 per channel
Current Limit 0.1-0.5 A configurable
Isolation 2 kV impulse withstand
Power 24 VDC (20-32 V), 12 W typical
Operating Temp -40 °C … +70 °C
Humidity 5 % … 95 % RH non-condensing
Mounting Trusted rack, 1 slot (31 mm wide)
Approvals SIL 3, CE, UL 508, ATEX Zone 2, IECEx
Typical Applications
  • Emergency shutdown (ESD) valve control
  • Fire & gas damper & motor drives
  • Turbine trip solenoids & high-integrity pumps
  • Chemical reactor cooling-water pumps
  • SIL 3 safety-instrumented functions (SIF)
What's in the Box
  • 1× T9482 Trusted TMR digital output module
  • 1× Removable 40-pin spring-clamp terminal block
  • Factory calibration certificate & SIL 3 conformity report
  • Quick-start guide & ESD wrist strap
Installation & Setup
  1. Insert module into any Trusted rack slot.
  2. Connect 24 VDC field power and load wiring to terminal block.
  3. Power on--green HEALTH LED < 5 s.
  4. Configure current limits & SOE feedback in ICS Triplex Engineer.
  5. Perform loop test & SIL 3 proof-test.
