8 Channel Westinghouse 1B30023H01 I/O Terminator Assembly Module 24 VDC

8 Channel Westinghouse 1B30023H01 I/O Terminator Assembly Module 24 VDC

  • 8 Channel Westinghouse 1B30023H01 I/O Terminator Assembly Module 24 VDC
  • 8 Channel Westinghouse 1B30023H01 I/O Terminator Assembly Module 24 VDC
8 Channel Westinghouse 1B30023H01 I/O Terminator Assembly Module 24 VDC
Product Details:
Place of Origin: USA
Brand Name: WESTINGHOUSE
Certification: COC
Model Number: 1B30023H01
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $10-3000
Packaging Details: original
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10 pieces one day
Contact Now
Detailed Product Description
Type: Module Shipping By: DHL/UPS/EMS/FEDEX/TNT Or Agent Etc
Lead Time: In Stock Product Type: Module
Payment: T/T Trading Term: EXW
Highlight:

8 Channel Westinghouse 1B30023H01

,

24 VDC Westinghouse 1B30023H01

,

24 VDC Terminator Assembly Module

1B30023H01 WESTINGHOUSE I/O Terminator Assembly Module

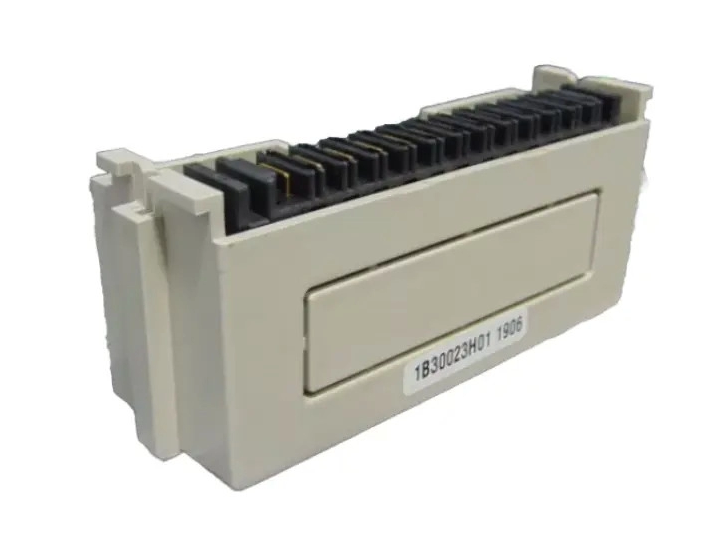

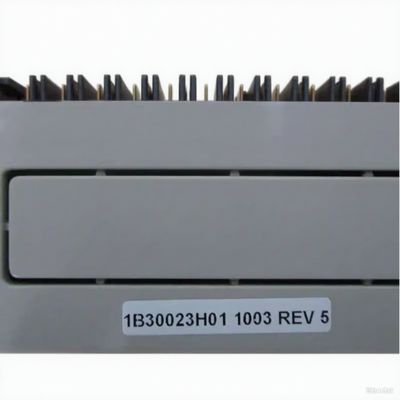

The 1B30023H01 is a genuine Westinghouse / Eaton relay output module that provides eight isolated Form-C (SPDT) contacts rated at 250 VAC / 30 VDC, 5 A per point. Designed for WDPF II and Ovation® DCS racks, it delivers fast switching, coil suppression, and LED diagnostics for critical plant control loops.
Key Features & Benefits
  • 100% OEM Westinghouse / Eaton--serialized & ESD-sealed
  • 8 Form-C (SPDT) relay outputs, 5 A @ 250 VAC / 30 VDC
  • 24 VDC coil with MOV suppression & LED indication
  • Hot-swappable in WDPF II / Ovation rack--no CPU restart
  • Plug-in terminal block for quick field wiring
  • -40 °C … +70 °C operating range
  • CE, UL Listed, CSA, ABS certified
Technical Specifications
Parameter Value
Model 1B30023H01
Manufacturer Westinghouse / Eaton
Function 8-Channel Relay Output
Contact Rating 5 A @ 250 VAC / 30 VDC (Form-C)
Coil Voltage 24 VDC
Isolation 1500 VAC coil-to-contact
Response Time < 8 ms operate / 5 ms release
Protection MOV coil suppression
LEDs Green per-point status
Power 24 VDC via rack backplane
Operating Temp -40 °C … +70 °C
Humidity 5 % … 95 % RH non-condensing
Mounting WDPF II / Ovation 19 in. rack, 1 slot
Approvals CE, UL, CSA, ABS
Typical Applications
  • Motor starter & breaker control
  • Solenoid valve & annunciator drive
  • Compressor & pump interlocks
  • Burner management systems
  • Utility balance-of-plant (BOP) control
What's in the Box
  • 1* 1B30023H01 relay output module
  • 1* Removable 20-pin spring-clamp terminal block
  • Factory test certificate & traceability label
  • Quick-start guide & ESD wrist strap
Installation & Setup
  1. Insert module into any WDPF II / Ovation rack slot.
  2. Connect field wiring to removable terminal; torque to 0.5 N*m.
  3. Power on--green LED per relay < 1 s.
  4. Configure point database in Ovation Studio or WDPF II Builder.
  5. Perform functional test and verify contact continuity.
