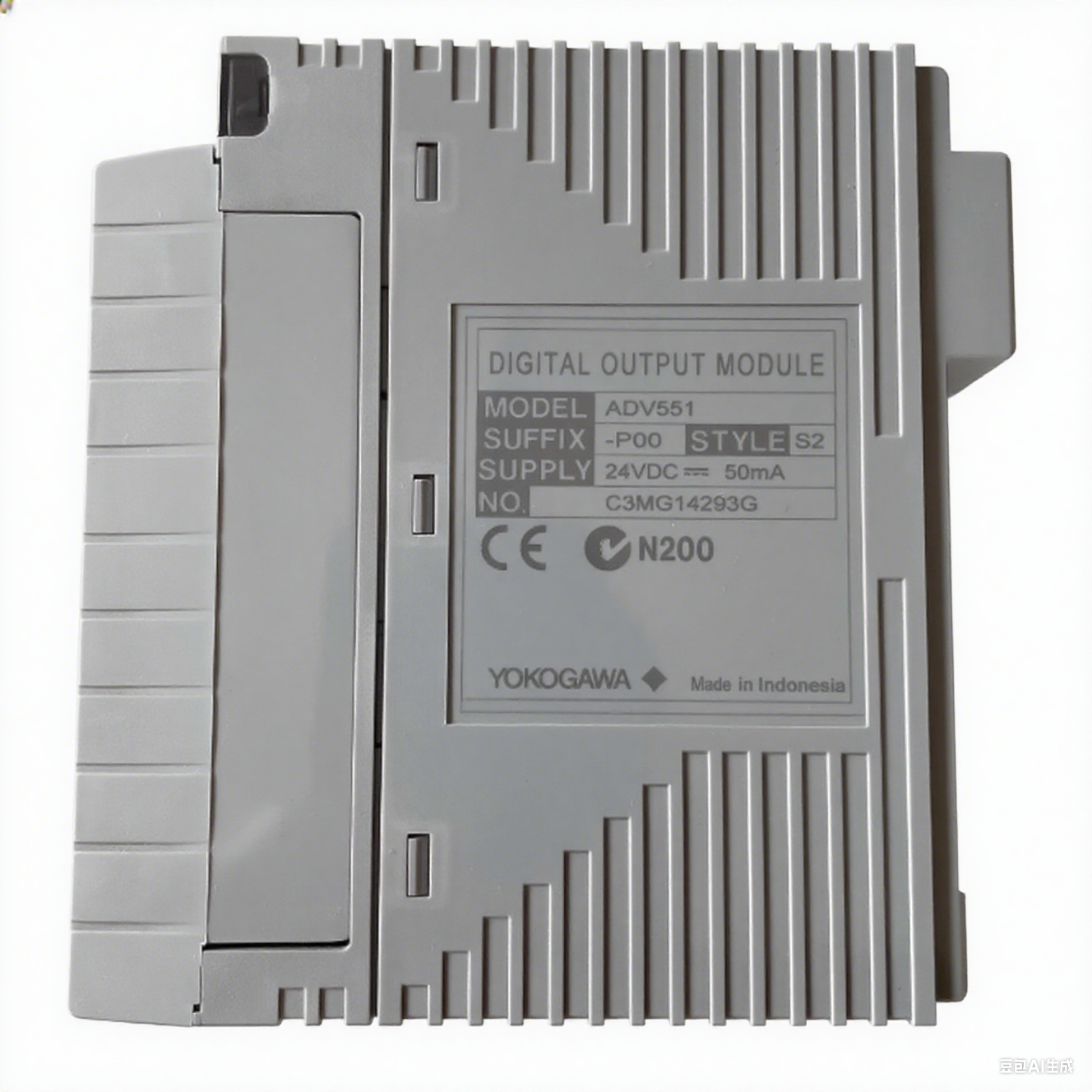

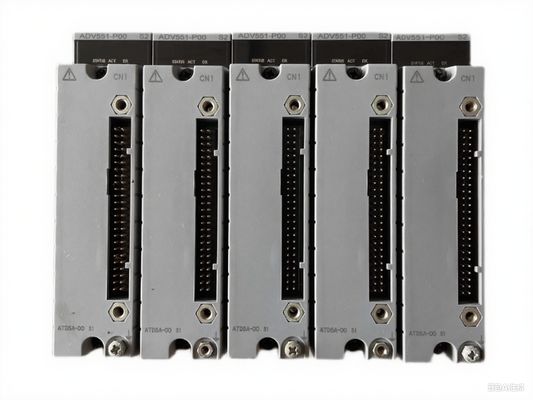

High Density ADV551-P00 YOKOGAWA Digital Output Module DO For Solenoid Actuation

The ADV551-P00 is an OEM YOKOGAWA high-density digital output card that provides 32 opto-isolated, current-sinking channels rated at 0.5 A per point. Built for CENTUM VP and STARDOM DCS, it offers fast 1 ms updates, short-circuit protection, and hot-swap capability for critical process and safety applications.

• 100% OEM YOKOGAWA--serialized & ESD-sealed
• 32 * 24 VDC sinking outputs (0.5 A/pt, 8 A/module)
• 1 ms update time, SOE ≤ 1 ms resolution
• Built-in short-circuit & over-temperature protection
• Hot-swappable with automatic module recognition
• -40 °C … +70 °C operating, conformal-coated
• CE, UL Listed, ATEX Zone 2, IECEx certified

• Valve & solenoid actuation
• Motor starter & pump control
• Compressor loading & ESD systems
• Batch reactor interlocks
• SIL 2 safety loops

• 1* ADV551-P00 output module
• 1* Removable 40-pin spring-clamp terminal block
• Factory calibration certificate & traceability label
• Quick-start guide & ESD wrist strap

1. Plug module into any AKB336 rack slot.
2. Connect 24 VDC field wiring to removable terminal.
3. Power on--green READY LED in < 5 s.
4. Launch CENTUM VP Engineering Station or STARDOM Builder; auto-detect module, configure tags.
5. Perform loop test & verify short-circuit protection.
